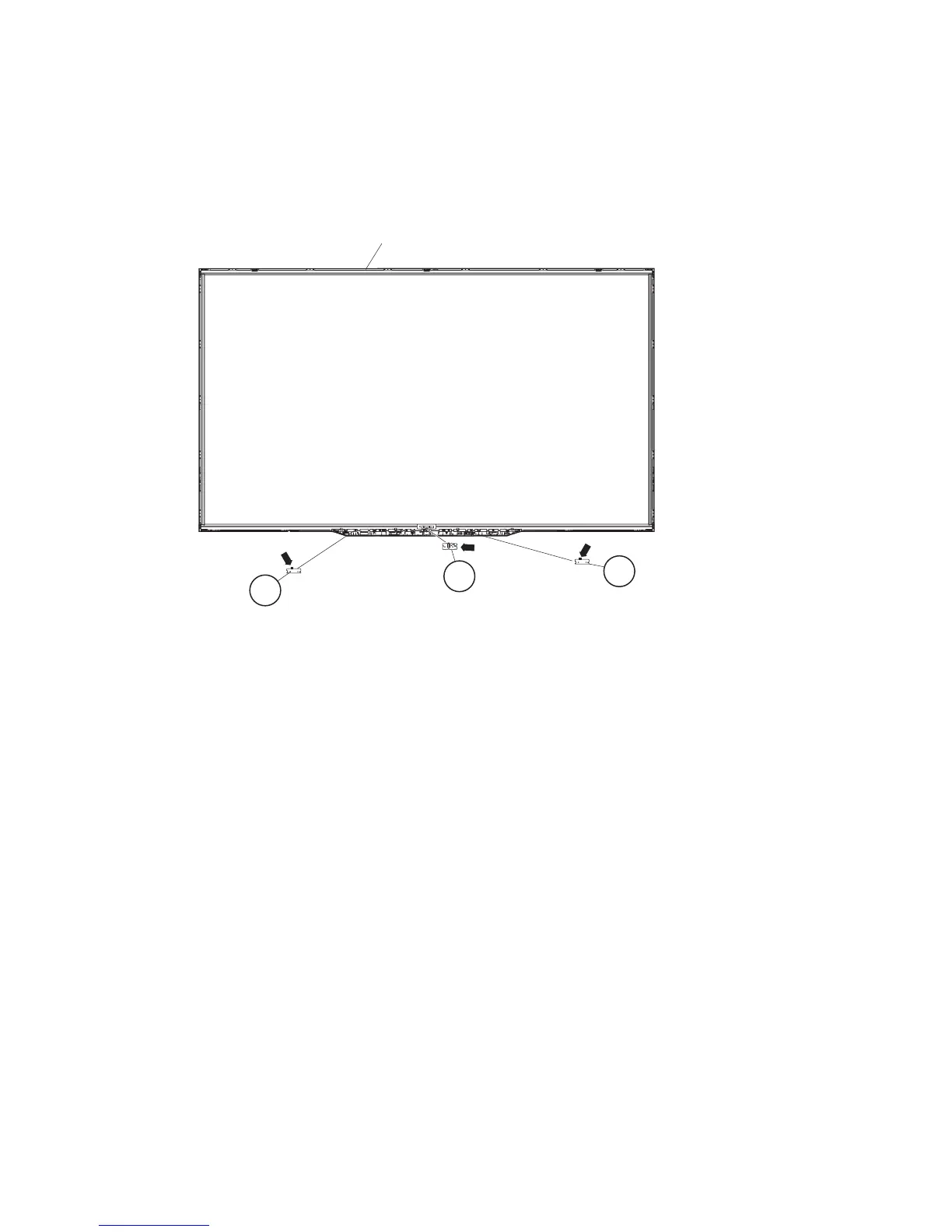

5. Removing of R/C LED Unit, EMBLEM Unit, 3D IR Unit.
1. Detach the R/C LED Unit (1).
2. Disconnect the RA wire.
3. Detach the EMBLEM Unit (2).
4. Disconnect the CI wire.
5. Detach 3D IR Unit (3).
6. Disconnect the IR wire.
Decoration Frame Ass'y
2
EMBLEM
Unit
1 R/C LED Unit
[RA]
[CI]
3 3D IR Unit
[IR]
