LC-90LE740X
4 – 4

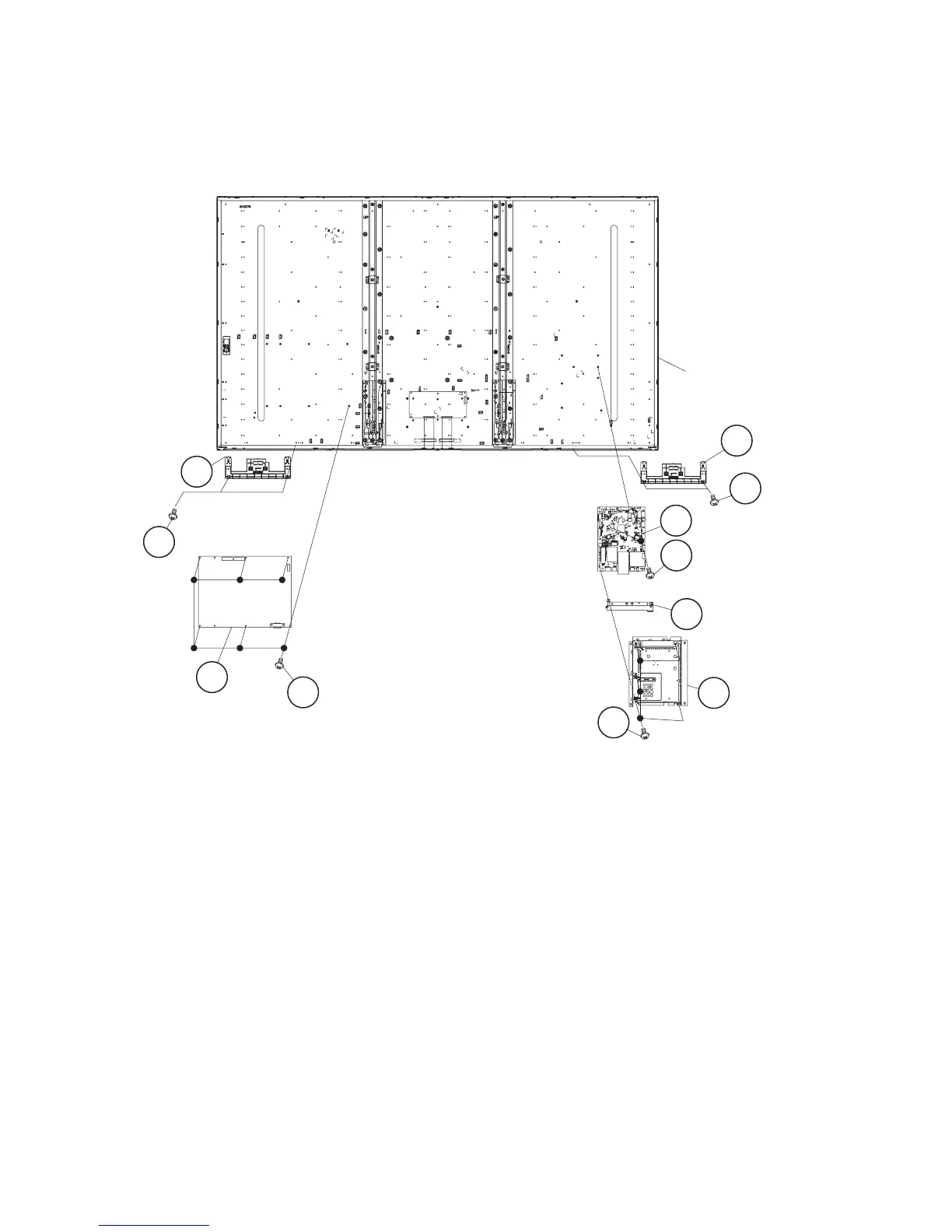

4. Removing of LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit.
1. Remove the 5 lock screws (1) and detach the Shield (MAIN) (2).
2. Remove the 3 lock screws (3) and detach the MAIN Unit (4) and Terminal Angle (Bottom) (5).
3. Remove the 6 lock screws (6) and detach the POWER/DRIVE Unit (7).
4. Remove the 4 lock screws (8) and detach the 2 Speaker Holders (9).
90" LCD Panel
Module Unit
7
6
POWER/DRIVE
Unit
4
1
Terminal
Angle
(Bottom)
3
Shield
(MAIN)
2
MAIN Unit
5
8
9
Speaker
Holder
8
9
Speaker
Holder
