Sharp LMV Series User Manual

14

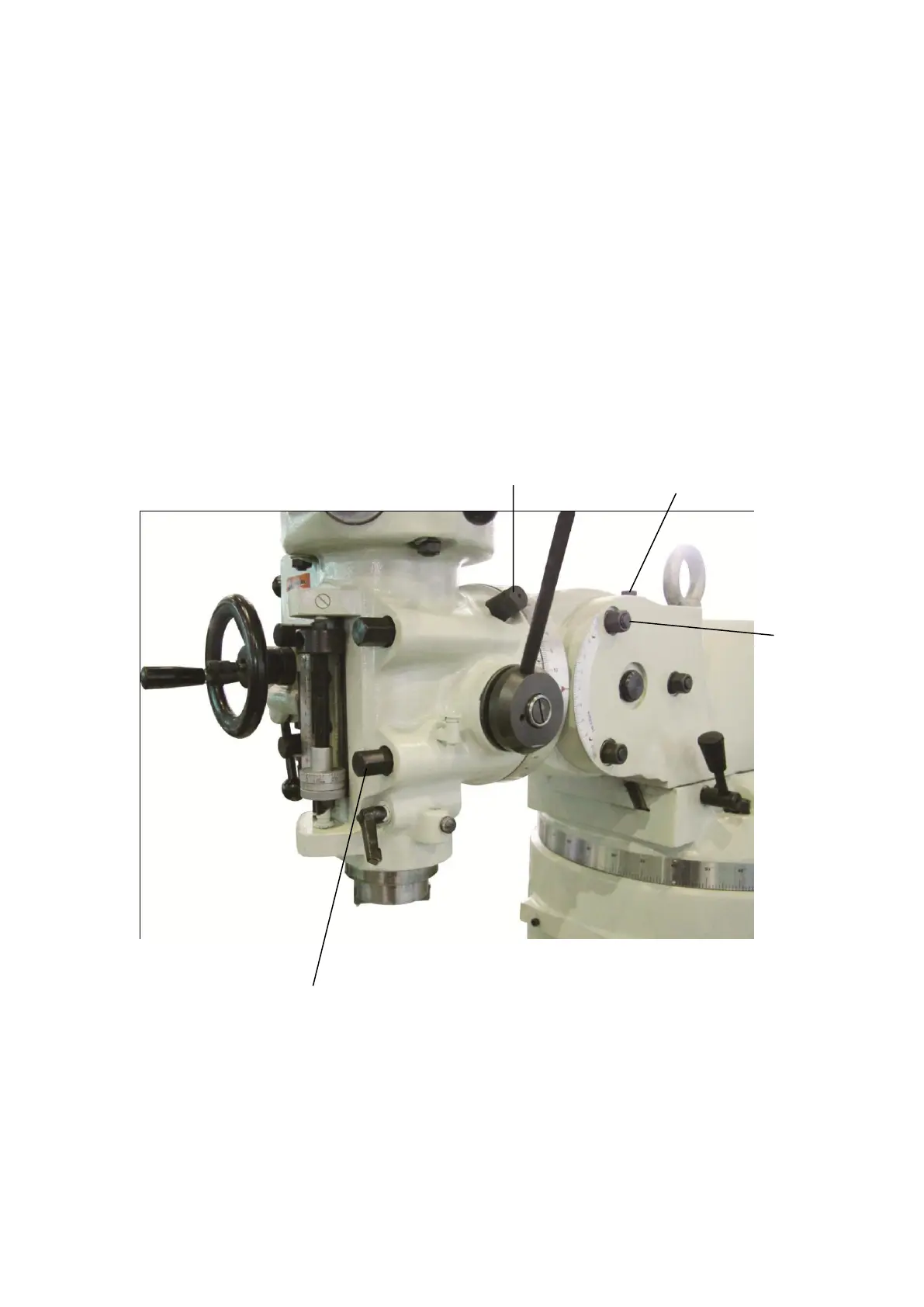

i. Tilting the headstock (Fig. 14):
To tilt the head up or down, evenly loosen the three
adapter locking bolts (P) and move to desired angle
using adjusting worm shaft “Q”. Re-tighten the adapter
bolts. NOTE: do not remove adapter bolts.
Cross tilting the headstock (Fig. 15):
Evenly loosen the four lock nuts “R”. Using the worm
shaft “S” move head to desired angle and retighten lock
nuts.
(S)
(Q)
(P)
(R)
Figure 14 &15
