2. Setting handwheel dials to zero (Fig. 18):
a. Loosen lock ring “D”.
b. Turn dial “E” to zero and tighten lock ring “D”.
3. Locking the table, saddle, and knee:
To increase the stability of the mill and maintain a good
workpiece finish, all non-feeding surfaces should be
locked down. See Fig. 19 for location of locking levers.
(D)
(E)
Knee Lock Lever
Saddle Lock
Lever
Work Table Lock
Lever

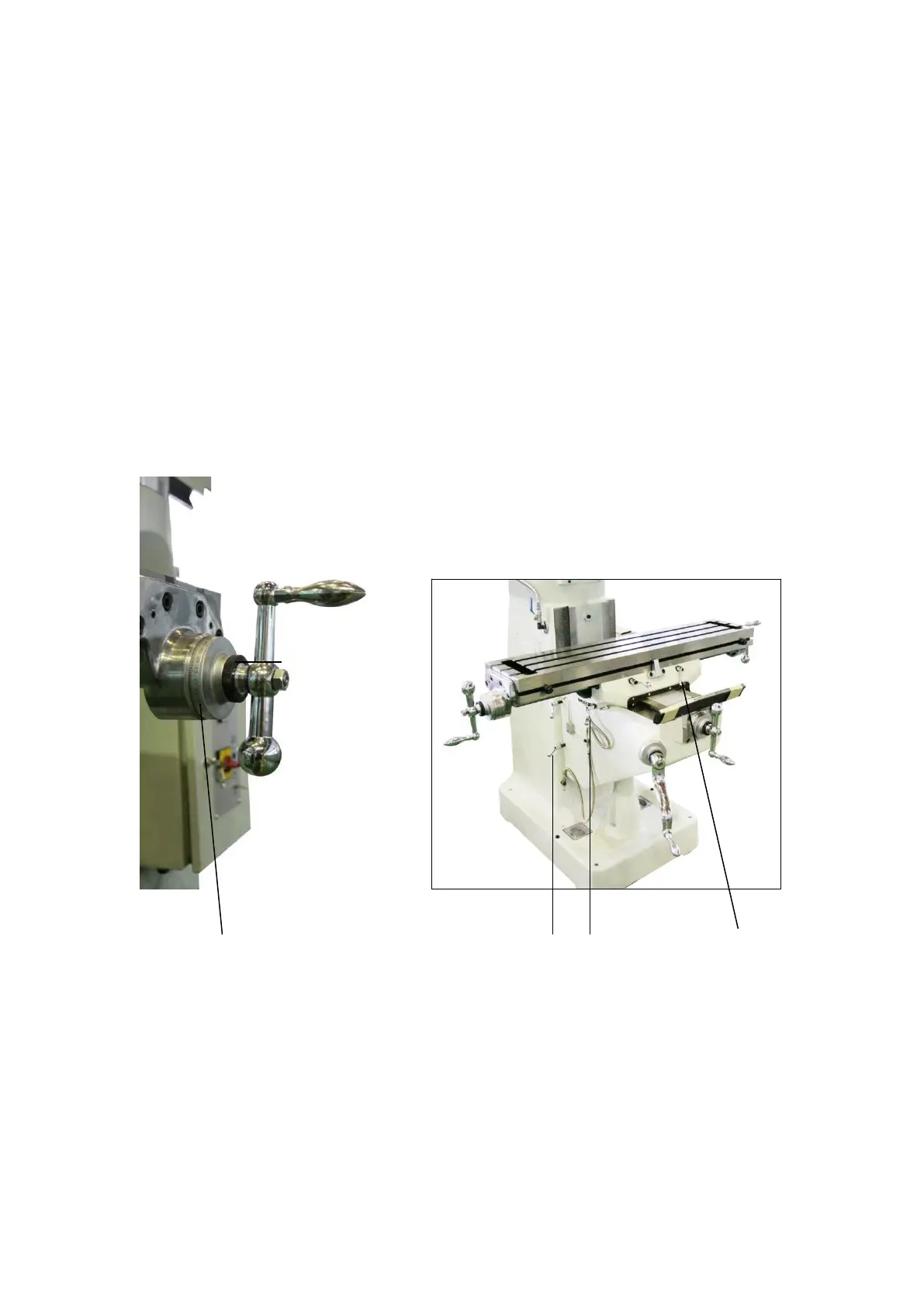

Figure 18
Figure 19
