In the event of a power failure during a firmware update, the device may fail to “reboot” because of
corrupted firmware. Using the CN Update procedure described below, this function is used to
update/recover the firmware by transferring data to the MFP PWB, SCU PWB, PCU PWB, FAX PWB, and
various options by means of a USB memory.
MENU KEY REFERENCE:

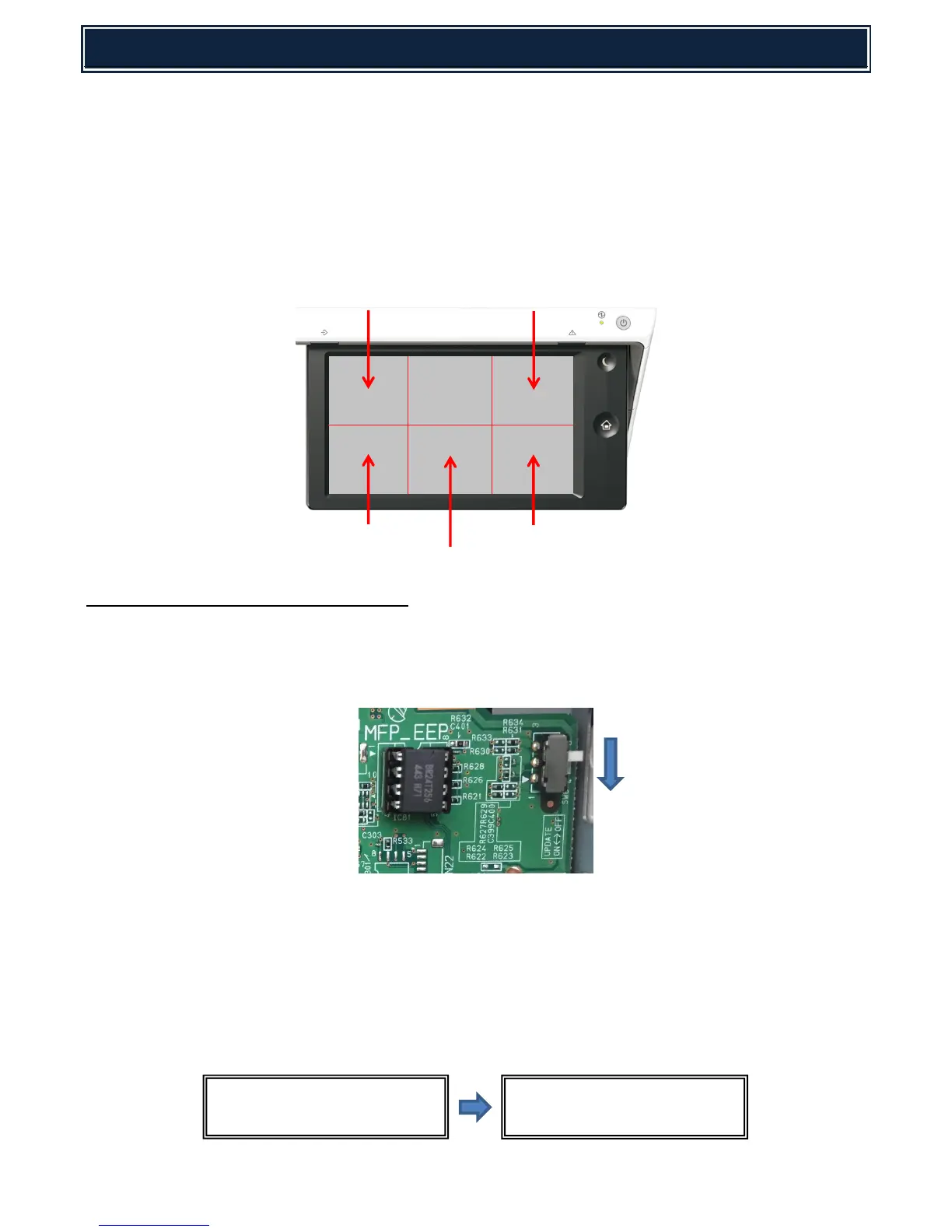

The following five keys are used to perform firmware recovery mode. For MX-3070/3570/4070N series,
touch the LCD panel within the area shown below to select the desired key:-
[UP] [BACK]
[DOWN] [OK]
[MENU]
CN UPDATE - Firmware Recovery Procedure:-
1. Power off the MFP and remove the MFP Rear Cabinet & Screws.
2. Set the SCN-MFP CONTROL PWB UPDATE DIP-SW to ON:-
Note: If a Boot failure has occurred, replace the Boot FlashROM.
3. Install the USB Memory containing the MX-3070/3570/4070N firmware into the USB slot.
Note: The MX-3070/3570/4070N Firmware file (*.sfu) must be saved on the main or one level lower
directory of the USB Memory.
4. Power ON the MFP device - the UPDATE PROGRAM INIT PLEASE WAIT boot menu should appear
after approx 10 seconds, followed by VERSION CHECK CONFIG: information:-.
