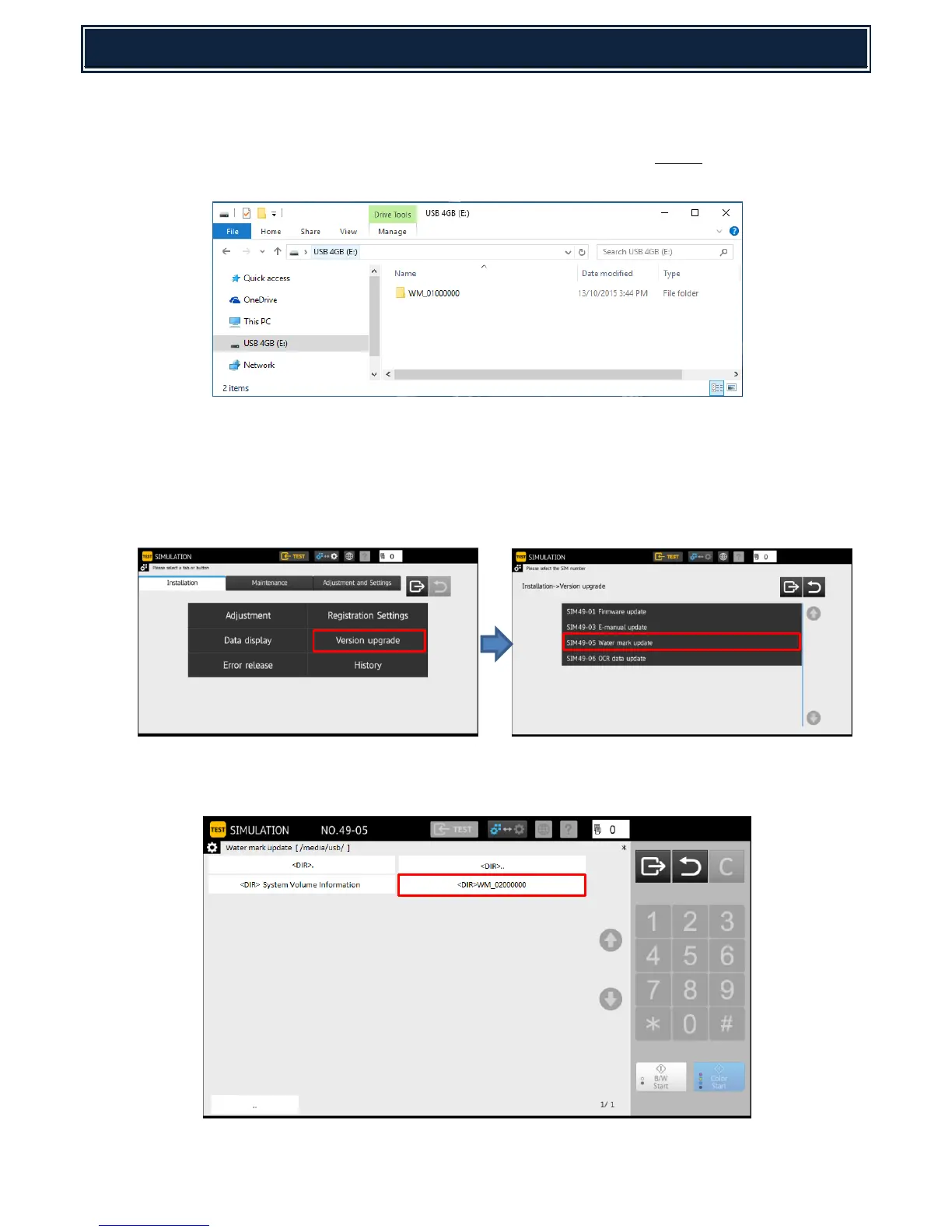

1. Using a PC, copy the Watermark Update firmware onto the root of a USB memory device:-
Caution:
When copying the Watermark firmware/directories onto the USB drive, do not change the folder
hierarchy or files.
2. Insert the USB memory device containing the Watermark firmware into the main USB Port and enter
Simulation 49-05 [Water mark update].
Note:
When using Easy Mode, select Version Upgrade from the Installation tab and execute SIM49-05
Water mark update. In addition, if no USB device is detected, an error message will be displayed.
3. Browse and select the Directory containing the Watermark update files.
Example shown = WM_01000000:-
4. The current and updated version should now be displayed. Press Execute to commence upgrade:-
