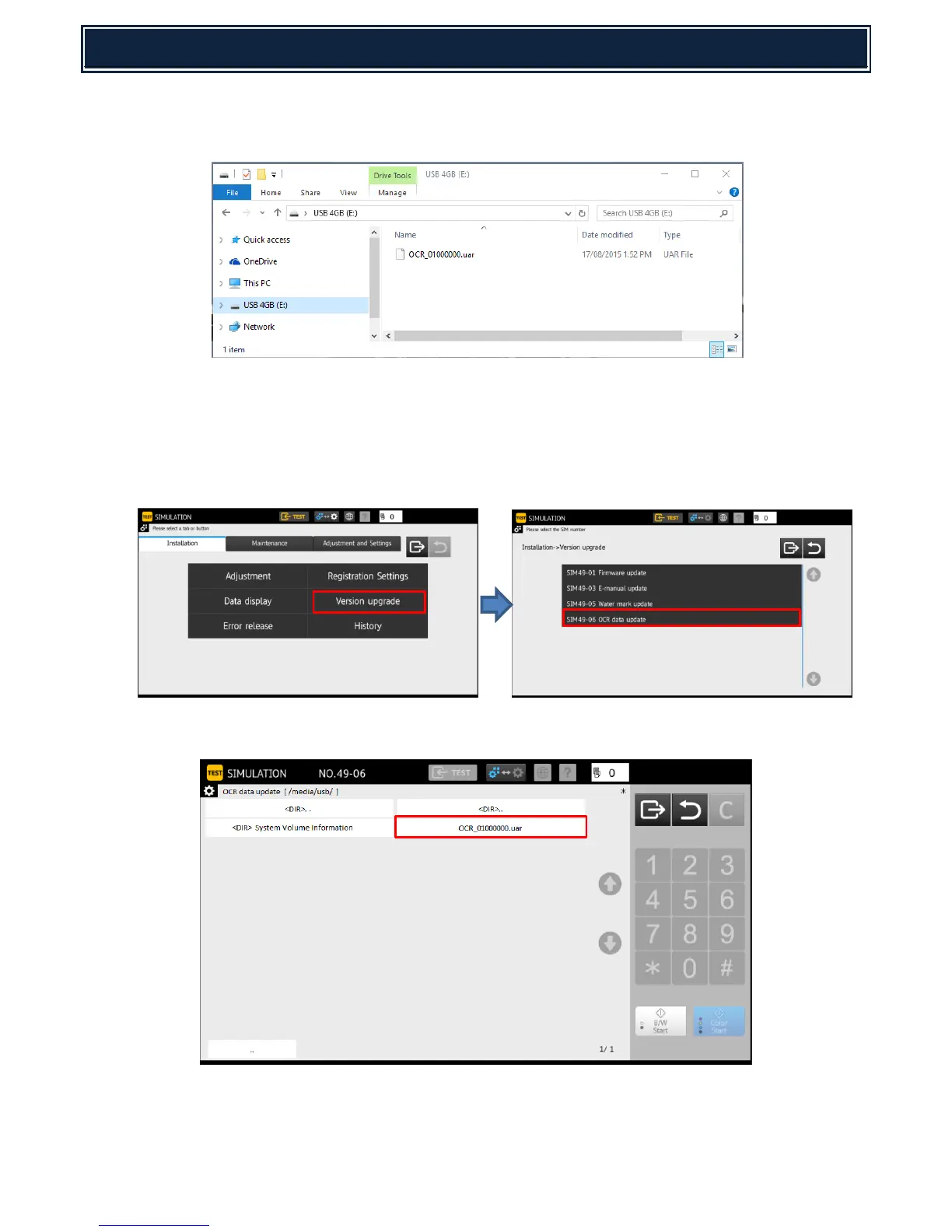

1. Using a PC, copy the OCR Dictionary Update file onto the root of a USB memory device (as shown).
Note: The OCR firmware for MX-3070/3570/4070N series consists of 1 file (*.UAR).
2. Insert the USB memory device containing the OCR firmware file into the main USB Port and enter
Simulation 49-06 [OCR data update].
Note:
When using Easy Mode, select Version Upgrade from the Installation tab and execute SIM49-05
Water mark update. In addition, if no USB device is detected, an error message will be displayed.
3. Browse and select the OCR Dictionary update file – example shown = OCR_01000000.uar.
4. The current and updated version should now be displayed. Press Execute to commence upgrade:-
