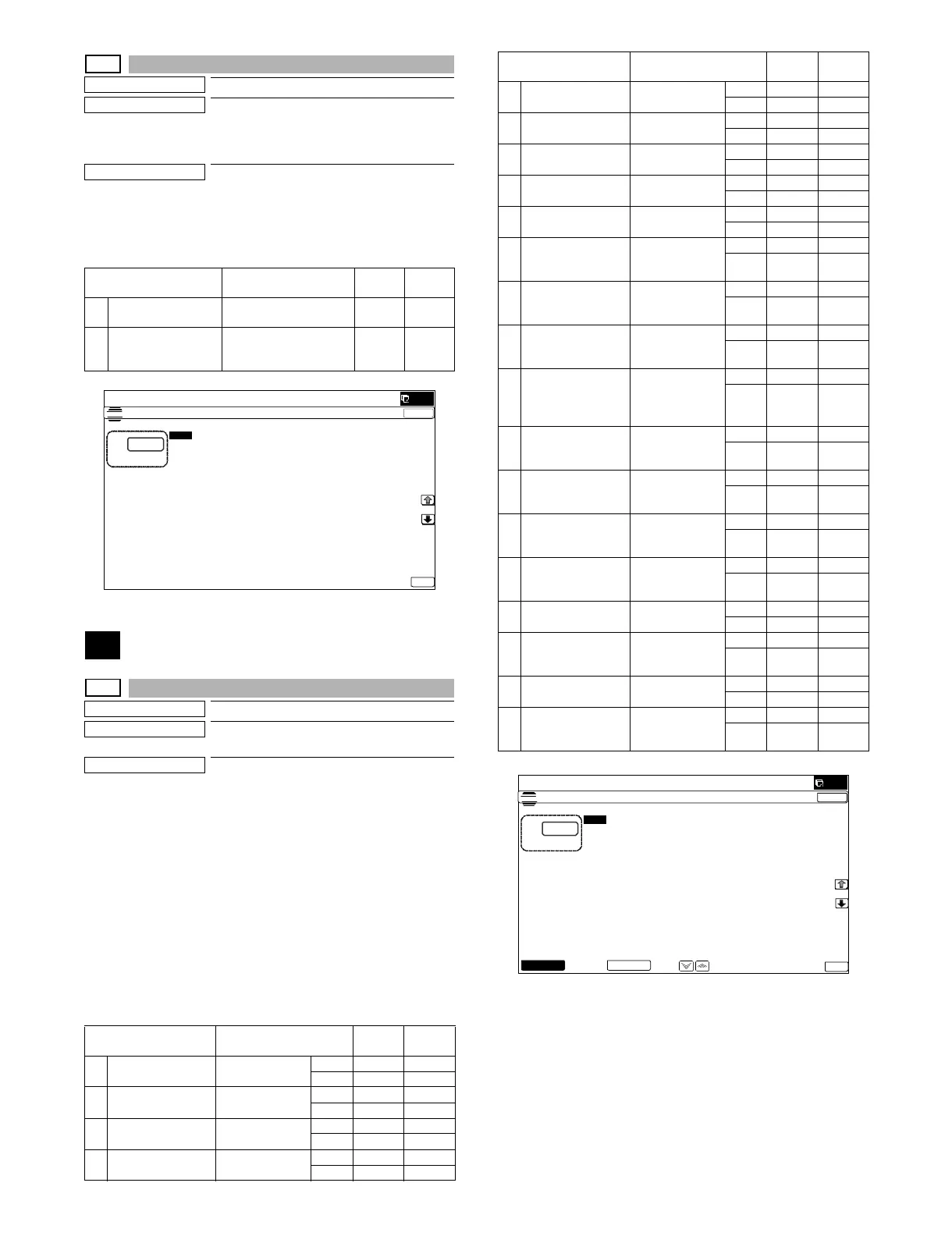

Sharp MX-4100N - Page 223

MX-5001N SIMULATION 6 – 76
44-61
Purpose
Adjustment
Function (Purpose)
Used to adjust the color image density sen-
sor. (The adjustment is made according to
the input of SIM44-13 to set the target value
of the color sensor gain adjustment.)
Section
Operation/Procedure
1) Select an adjustment target item with [↑] [↓] key.
2) Enter the set value with 10-key.
3) Press [OK] key. (The set value is saved.)
46
46-1
Purpose
Adjustment (Color copy mode)
Function (Purpose)
Used to adjust the copy density in the copy
mode.
Section
Operation/Procedure
1) Select an adjustment target item with [↑] [↓] key on the touch
panel.
2) Enter the set value with 10-key.
* When the U V key is pressed, the setting value of each
item can be changed with 1up (1down) collectively.
3) Press [OK] key. (The set value is saved.)
To adjust the copy density in the low density area, select the "LOW"
mode and change the adjustment value. To adjust the copy density
in the high density area, select the "HIGH" mode and change the
adjustment value.
When the adjustment value is increased, the copy density is
increased. When the adjustment value is decreased, the copy den-
sity is decreased.
Item/Display Content
Setting
range
Default
value
A PCS_CL CARB OUT Calibration plate sensor
value
1 - 255 108
B PCS_CL LED ADJ Color sensor light
emitting quantity
adjustment value
1 - 255 21
Item/Display Content
Setting
range
Default
value
A AUTO Auto LOW 1 - 99 50
HIGH 1 - 99 50
B TEXT Text LOW 1 - 99 50
HIGH 1 - 99 50
CTEXT/PRINTED
Text/Printed
LOW 1 - 99 50
HIGH 1 - 99 50
D TEXT/PHOTO Text/Photograph LOW 1 - 99 50
HIGH 1 - 99 50
ǂǂǂ6,08/$7,21ǂǂ12
&/26(
7(67
3$7&+6($/$'-8670(17,1387



$˖
˷ ˹
˹
˖3&6B&/&$5%287
$˖
˖3&6B&//('$'-
%˖
2.
E PRINTED PHOTO Printed Photo LOW 1 - 99 50
HIGH 1 - 99 50
F PHOTOGRAPH Photograph LOW 1 - 99 50
HIGH 1 - 99 50
G MAP Map LOW 1 - 99 50
HIGH 1 - 99 50
H LIGHT Light document LOW 1 - 99 50
HIGH 1 - 99 50
I TEXT(COPY TO
COPY)
Text (Copy
document)
LOW 1 - 99 50
HIGH 1 - 99 50
J TEXT/PRINTED
PHOTO (COPY TO
COPY)
Text/Printed
Photo (Copy
document)
LOW 1 - 99 50
HIGH 1 - 99 50
K PRINTED PHOTO
(COPY TO COPY)
Printed Photo
(Copy
document)
LOW 1 - 99 50
HIGH 1 - 99 50
L TEXT (COLOR
TONE
ENHANCEMENT)
Text (Color tone
enhancement)
LOW 1 - 99 50
HIGH 1 - 99 50
M TEXT/PRINTED
PHOTO (COLOR
TONE
ENHANCEMENT)
Text/Printed
(Color tone
enhancement)
LOW 1 - 99 50
HIGH 1 - 99 50
N TEXT/PHOTO
(COLOR TONE
ENHANCEMENT)
Text/Photograph
(Color tone
enhancement)
LOW 1 - 99 50
HIGH 1 - 99 50
O PRINTED PHOTO
(COLOR TONE
ENHANCEMENT)
Printed Photo
(Color tone
enhancement)
LOW 1 - 99 50
HIGH 1 - 99 50
P PHOTOGRAPH
(COLOR TONE
ENHANCEMENT)
Photograph
(Color tone
enhancement)
LOW 1 - 99 50
HIGH 1 - 99 50
Q MAP (COLOR
TONE
ENHANCEMENT)
Map
(Color tone
enhancement)
LOW 1 - 99 50
HIGH 1 - 99 50
R SINGLE COLOR Single color LOW 1 - 99 50
HIGH 1 - 99 50
S SINGLE COLOR
(COPY TO COPY)
Single color
(Copy
document)
LOW 1 - 99 50
HIGH 1 - 99 50
T TWO COLOR 2-color (red/
black) copy
LOW 1 - 99 50
HIGH 1 - 99 50
U TWO COLOR
(COPY TO COPY)
2-color (red/
black) copy
(copy document)
LOW 1 - 99 50
HIGH 1 - 99 50
Item/Display Content
Setting
range
Default
value
ǂǂǂ6,08/$7,21
ǂǂ12
&/26(
7(67
(;32685($'-8670(17&2/25>&23<@



$˖
˷
˹
˖$872
$˖

˖7(;7
%˖

˖7(;735,17('
ǂ3+272
&˖

˖7(;7
3+272
'˖

˖3+272*5$3+
)˖

˖35,17('
ǂ3+272
(˖

˖0$3
*˖

˖/,*+7
+˖

˖7(;7&23<
ǂ72 ǂ&23<
,˖

˖7(;735,17('ǂ3+272
&23<ǂ72ǂ&23<
-˖

˖35,17('ǂ3+272
&23<ǂ72ǂ&23<
.˖

˖7(;7&2/25ǂ721(
ǂ(1+$1&(0(17
/˖

2.
+,*+/2:
