1-6
BEFORE USING THE MACHINEâ–ºBEFORE USING THE MACHINE

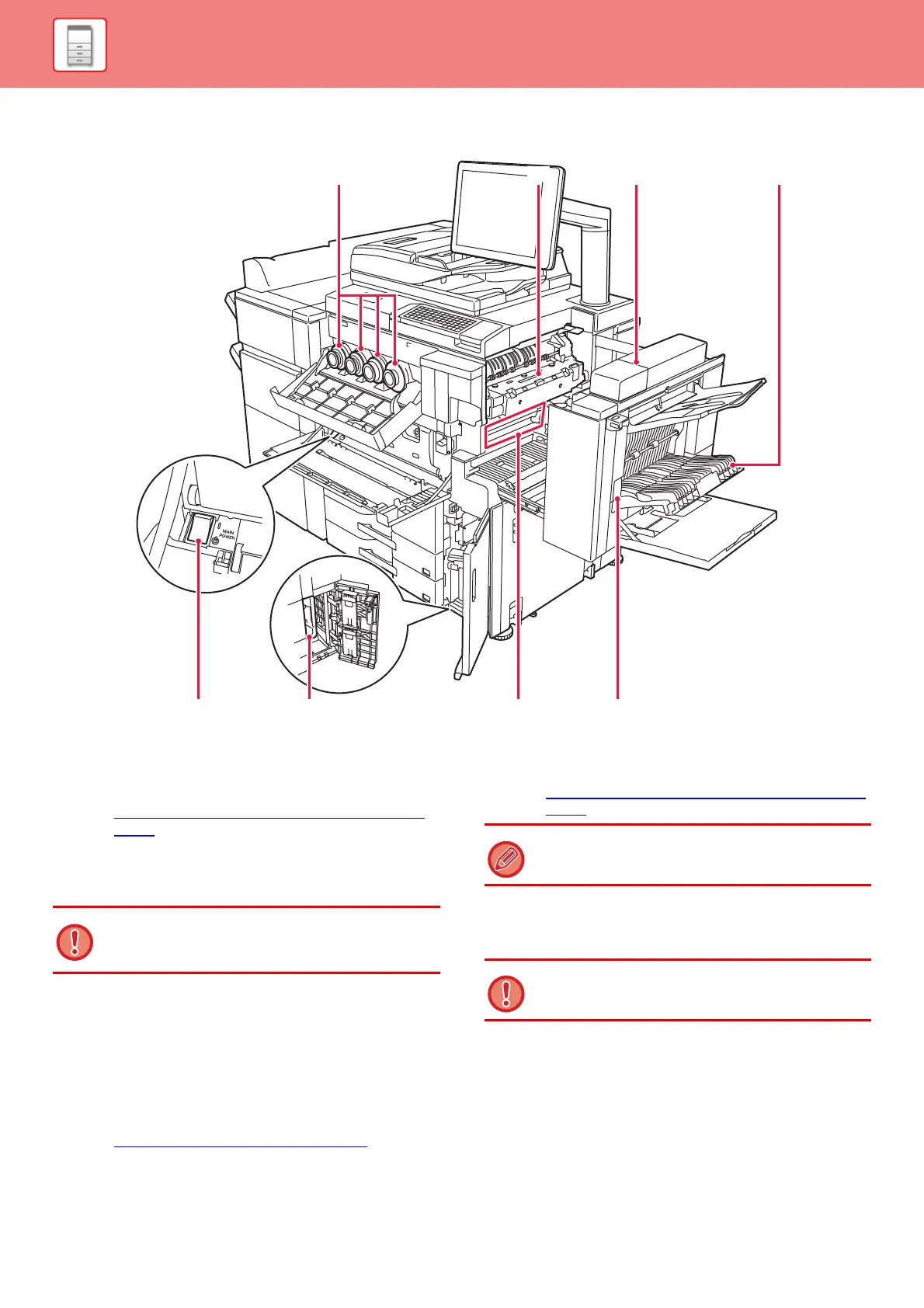

INTERIOR
(1) Toner cartridge
This cartridge contains toner.
When the toner in a cartridge runs out, the cartridge of
the color that ran out must be replaced.
â–º REPLACEMENT OF TONER CARTRIDGE (page
1-151)
(2) Fusing unit
Heat is applied here to fuse the transferred image onto
the paper.
(3) Right side cover
Open this cover to remove a misfeed.
(4) Paper reversing section cover
This unit is used for reversing paper when 2-sided printing
is performed. Open this cover to remove a paper misfeed.
(5) The main power switch
Use this switch to turn on the power for the machine.
â–º TURNING ON THE POWER (page 1-10)
(6) Waste toner bottle
This bottle collects excess toner that is produced during
printing.
â–º REPLACING THE WASTE TONER BOTTLE (page
1-154)
(7) Transfer belt
This belt takes the image formed with toner off the
photoconductive unit and transfers the image onto paper.
(8) Right side cover release lever
To remove a paper misfeed, pull and hold this lever up to
open the right side cover.
(1) (2) (3)
(5) (6) (8)(7)
(4)
The fusing unit is hot. Take care not to burn yourself
when removing a misfeed.
A service technician collects replaced waste toner
bottles.
Do not touch or damage the transfer belt.
This may cause a defective image.
To Next Page
