SCANNER FUNCTIONS
70

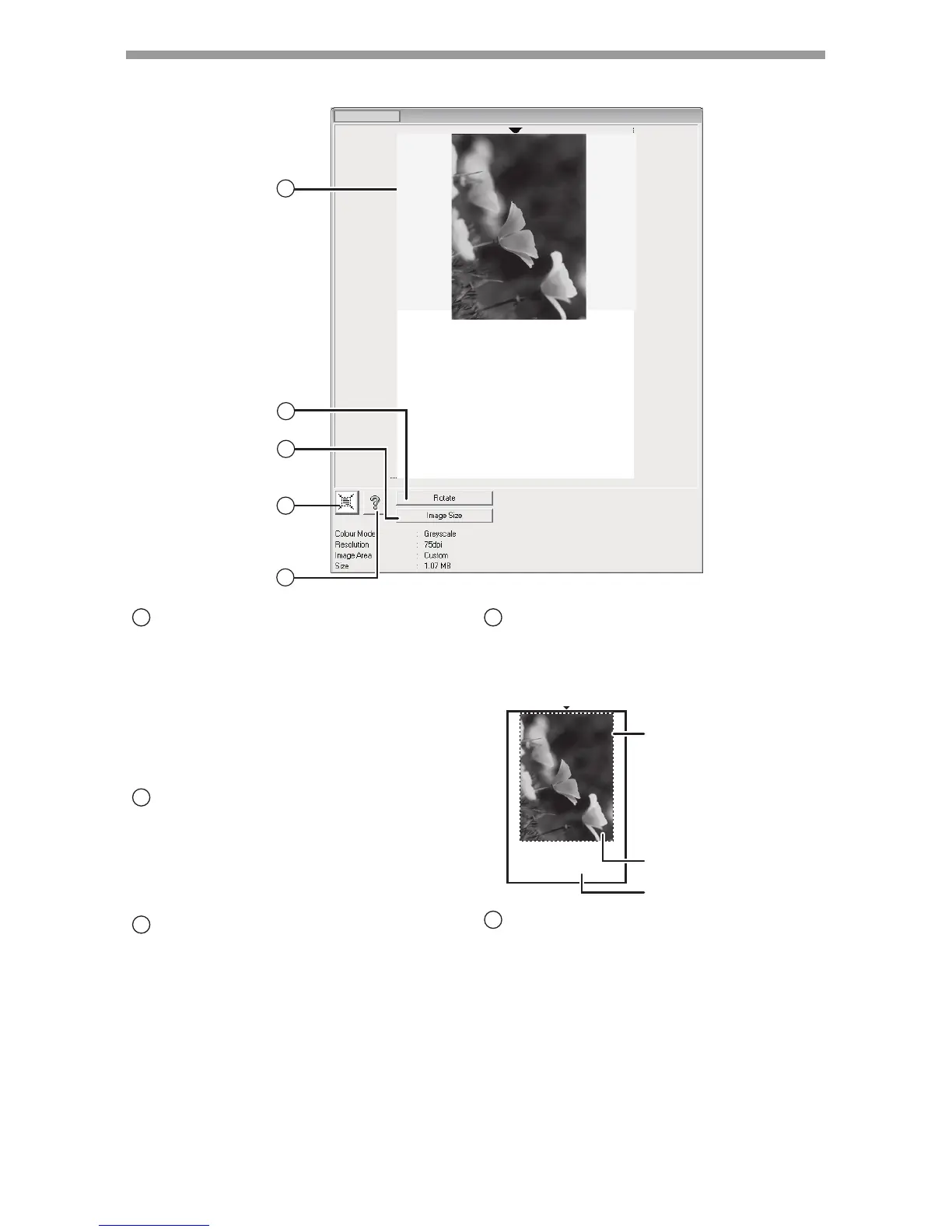

Preview screen
Preview screen
Click the "Preview" button in the Set-up
screen to display the scanned image.
You can specify the scanning area by
dragging the mouse inside the window.
The inside of the frame that is created
when you drag the mouse will be the
scanning area. To cancel a specified
scanning area and clear the frame, click
anywhere outside the frame.
"Rotate" button
Click to rotate the preview image 90
degrees clockwise. This allows the
orientation to be corrected without
resetting the original. Upon scanning,
the image file is created in the
orientation shown in the preview screen.
"Image Size" button
Click to open a dialog box that allows
you to specify the scanning area by
entering numbers. Pixels, mm, or inches
can be selected for the units of the
numbers. By initially specifying a
scanning area, numbers can be entered
to change that area relative to the top
left corner as a fixed origin.
"Auto Scan Area Judgement" button
Click when the preview screen is
displayed to automatically set the
scanning area to the entire preview
image.
"Help" button
Click to display the help file for the
scanner driver.
2
3
4
5
1
1
2
3
4
Click the "Auto Scan
Area Judgement"
button to
automatically set
the scanning area to
the entire preview
image.
Preview image
Preview screen
5
