MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 21

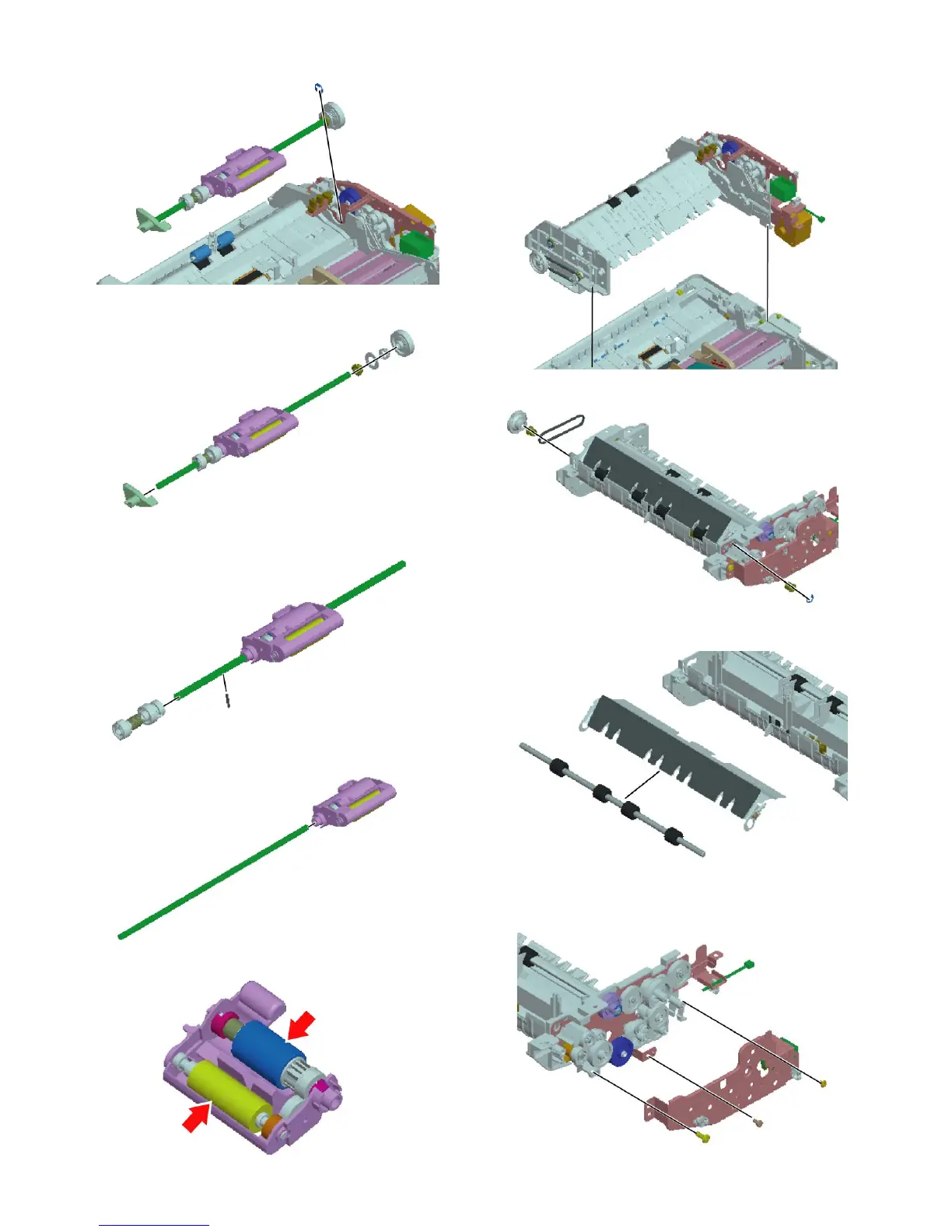

3) Remove the E ring, remove the paper feed shaft unit.
4) Remove the pressure release lever, bearings washers, stop-
pers and Paper feed drive gear.
5) Remove the resin ring, remove the pin and the coupling assem-
bly.
6) Remove the paper feed shaft.
7) Remove the Paper feed roller and the Pick up roller.
(2) PS roller, Upper transport roller, Lower transport
roller
1) Remove the paper feed shaft unit.
2) Remove the transportation unit.
3) Remove the E-ring, the pulley, the belt and the bearing.
4) Remove the PS roller .
5) Remove the motor fixing plate.
