MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 22

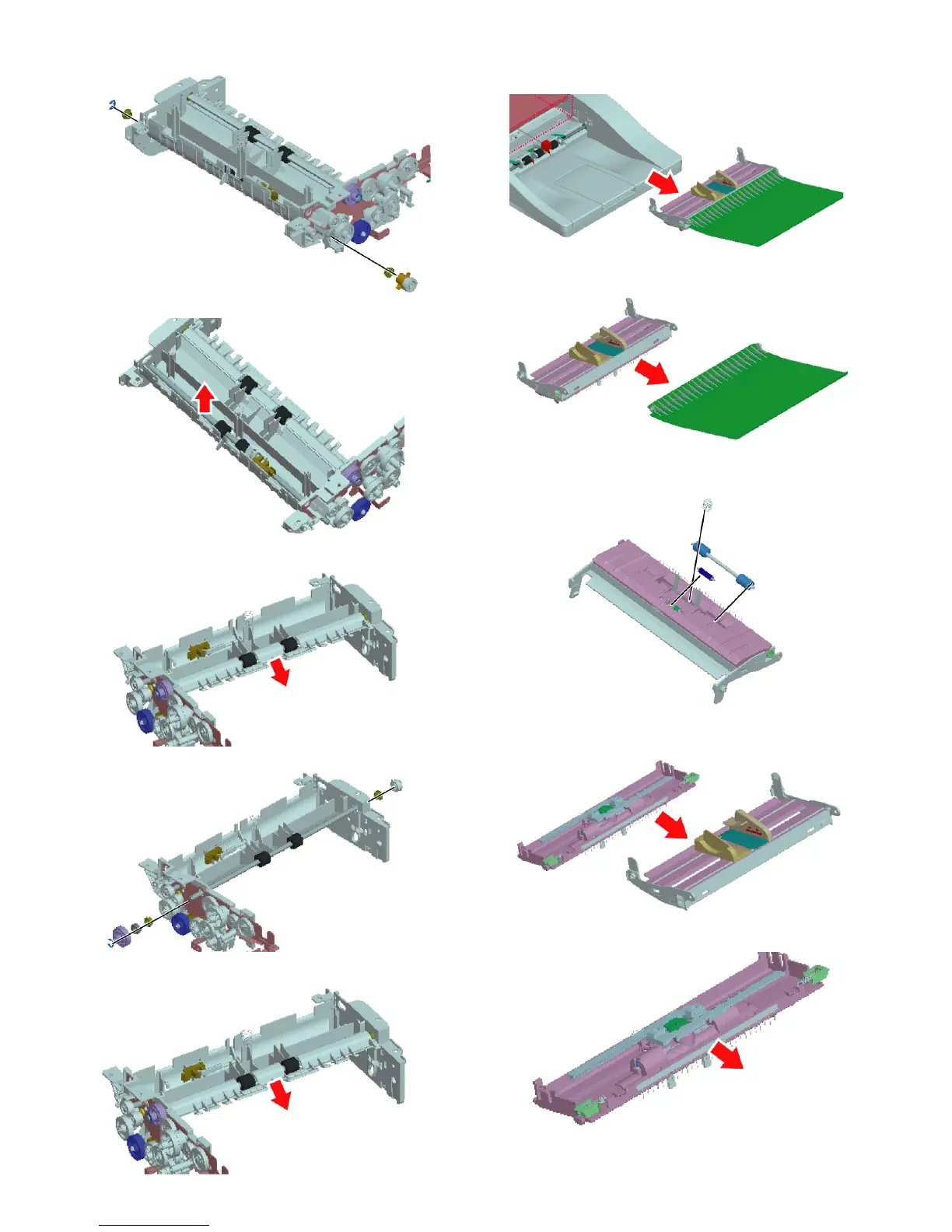

6) Remove the E ring, the gear and the bearing.
7) Remove the Upper transport roller.
8) Remove the gate.
9) Remove the E ring, the gear and the bearing.
10) Remove the Lower transport roller
(3) BC auxiliary roller, discharge brush
1) Remove the paper tray unit.
2) Remove the paper tray.
3) Turn the removed unit and remove the spring, transport auxil-
iary roller and the BC auxiliary roller.
4) Remove the paper fed cover unit.
5) Remove the discharge brush.
NOTE: When putting the discharge brush, put it with fitting to the
alignment line.
