MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 24
D.Scanner unit

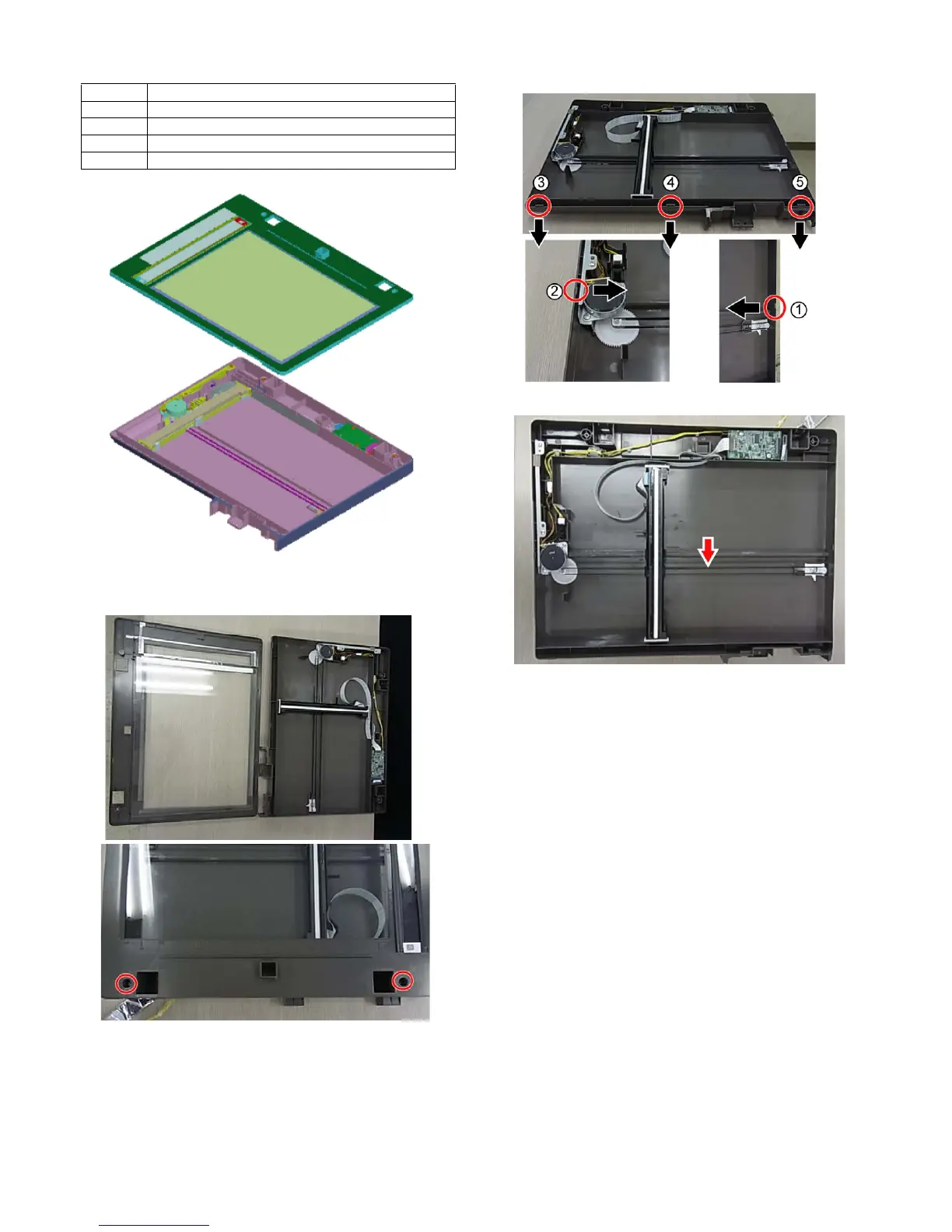

(1)Drive belt
1) Remove the scanner upper cover NE. .
When removing the scanner upper cover, press No.1 and 2
pawls inside and slide no.3, 4 and 5 pawls outside.
2) Check the tension and wear of the drive belt shown in the figure.
No. Name
1Drive belt
2Glass
3Rail
4 CIS unit
