MX-C250 ADJUSTMENTS 5 – 8
b. Monochrome copy check items (Check to confirm the fol-
lowing:)

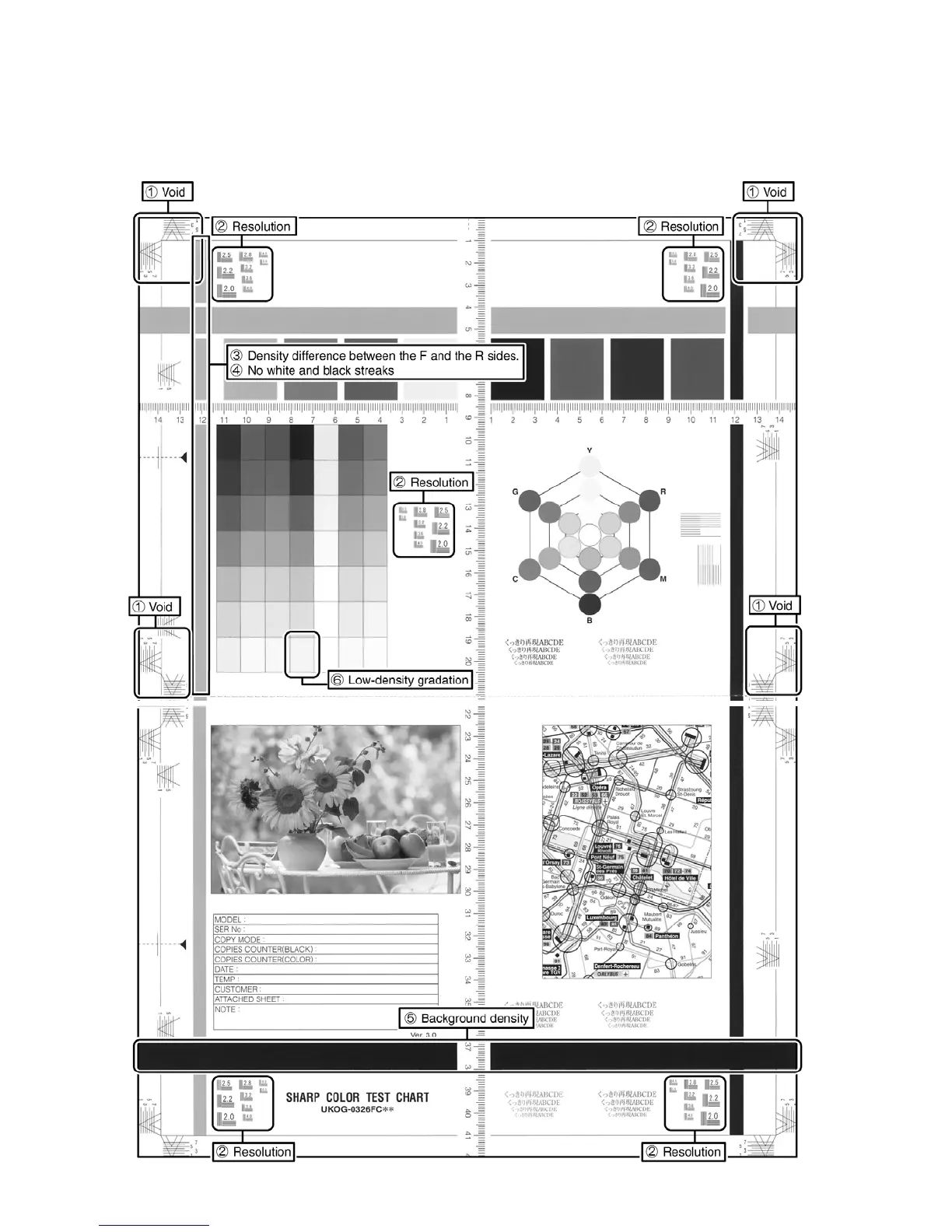

When using the servicing color test chart, fold or separate the
chart.
a) There are 8 void areas.
b) The resolution of 4.0 can be seen.
c) The density difference between the F and the R sides is
not so great.
d) There are no white and black streaks.
e) The background density is not so light.
f) The black low-density gradation is copied slightly.
