MX-C250 ADJUSTMENTS 5 – 9
4) If the printing result has no skew part, this is the end of the
procedure. Skew adjustment does not need to be done. If the
printing result has skew areas, proceed to the next step.
5) Remove the paper tray.

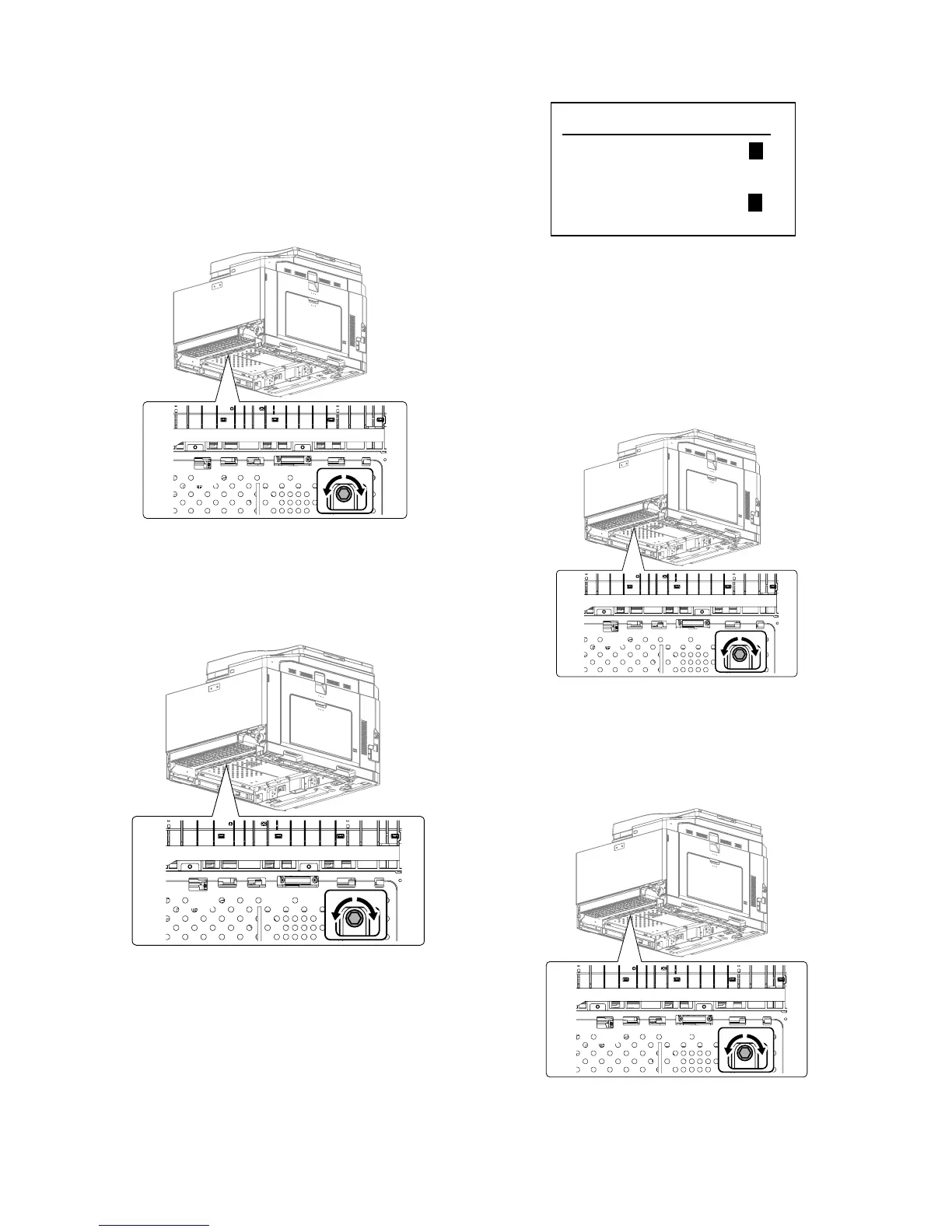

6) If there are several skewed areas on the test printing result,
turn all the LSU skew adjustment screws shown in the figure
* To make "SKEW_*" values in the following ranges, turn the
LSU skew adjustment screws clockwise direction (a) or
counterclockwise direction (b).
SKEW_C : +/-30, SKEW_M : +/-40, SKEW_C : +/-20
7) Fix the paper tray. .
8) Repeat the procedures 2) to 4) again, and check to confirm
that C, M, and Y (SKEW) result in "OK" being displayed on
the operation panel.
If any of them is NG, turn the LSU skew adjustment screw of
the corresponding color to adjust.
Procedure 2
1) Enter SIM61-4 mode.
2) Select the tray with A4 (11" x 8.5") paper in it.
3) Press [EXECUTE] key.
The check pattern is printed out.
4)Remove the paper tray. .
5) If there are several skewed areas on the test printing result, turn
all the LSU skew adjustment screws shown in the figure * To
make "SKEW_*" values in the following ranges, turn the LSU
skew adjustment screws clockwise direction (a) or counterclock-
wise direction (b).
SKEW_C : +/-30, SKEW_M : +/-40, SKEW_C : +/-20
6) Fix the paper tray. .
7) Repeat the procedures 2) to 4) again, and check to confirm that
C, M, and Y (SKEW) result in "OK" being displayed on the oper-
ation panel.
If any of them is NG, turn the LSU skew adjustment screw of the
corresponding color to adjust.
8) When the adjustment is made by turning the LSU skew adjust
ment screw of K, the states of C, M and Y (SKEW) are changed.
Execute SIM50-22 to check to confirm that C, M, and Y (SKEW)
result in "OK" being displayed on the operation panel.
Image registration adjustment is done automatically and SKEW
_C, M, Y value is displayed.
