MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 1
MX-C250
Service Manual
[4] EXTERNAL VIEW AND INTERNAL STRUCTURE

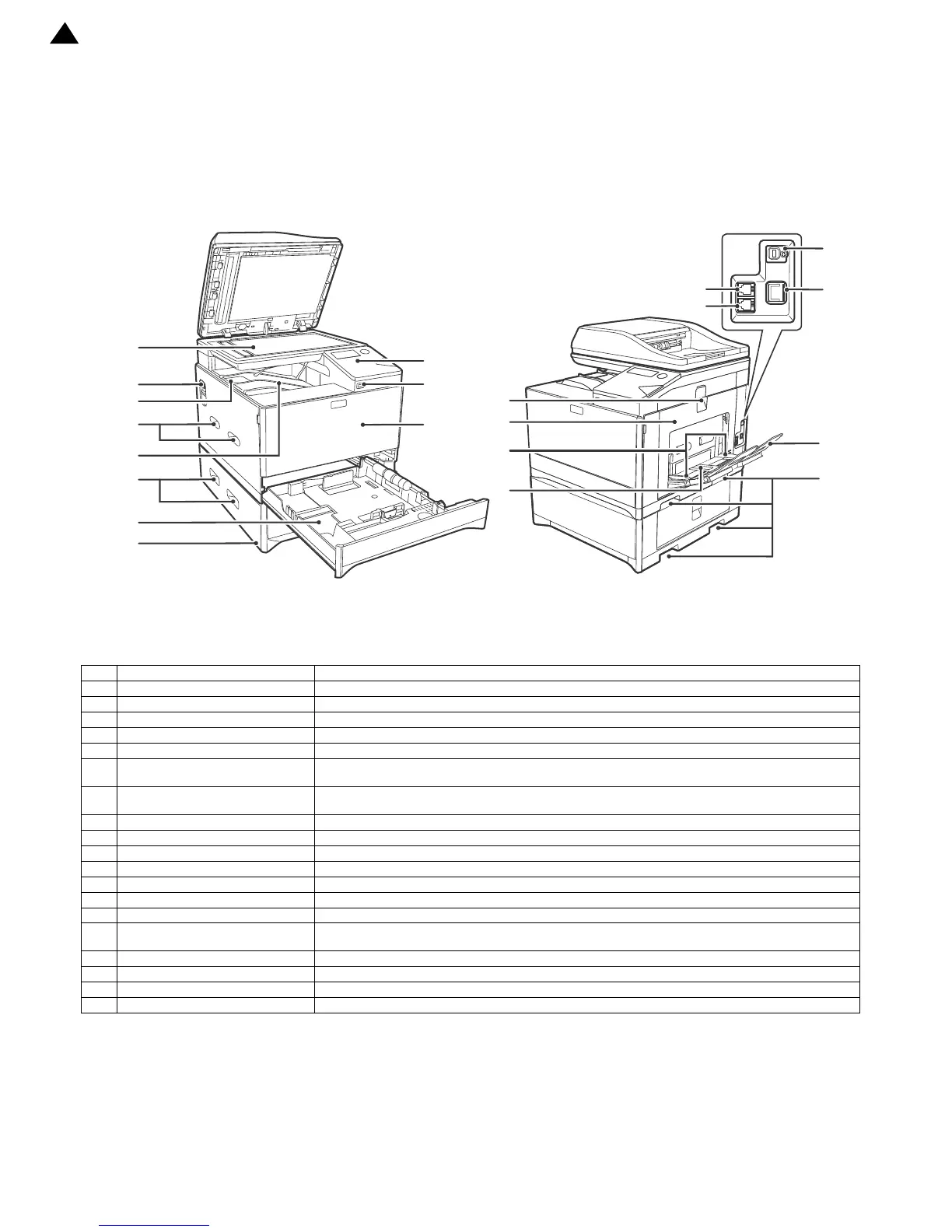

A.External view
No. Name function/Operation
1 Document glass Place an original that you wish to scan face down here.
2 Power switch Press to turn the machine power on and off.
3 Centre tray extensions Flip the extension to the left to eject paper of A4 size or greater.
4 Handles Used to lift and move the machine. When attaching tray 2, use the handle at the bottom.
5 Centre tray Copies and printed pages are output to this tray.
6 Tray 1 Tray 1 can hold approximately 250 sheets of copy paper (64 g/m2 (20 lbs.)). For restrictions on paper types,
sizes, and weights, refer to "PAPER" (p.16).
7 Tray 2 (Option) Tray 2 can hold approximately 550 sheets of copy paper (64 g/m2 (20 lbs.)). For restrictions on paper types,
sizes, and weights, refer to "PAPER" (p.16).
8 Operation panel Contains operation keys and indicator lights.
9 USB 2.0 port (Type A) This is used to connect a USB device such as USB memory to the machine.
10 Front cover Open to remove paper misfeeds or replace the toner cartridge etc.
11 Side cover handle Pull to open the right side cover.
12 Side cover Open to remove misfed paper.
13 Bypass tray guides Adjust to the width of the paper when using the bypass tray.
14 Bypass tray Special paper (heavy paper or transparency film)
15 Extension phone socket The line from an extension phone can be connected to this socket to use the telephone
function.
16 Telephone line socket When the fax function of the machine is used, the telephone line is connected to this socket.
17 USB 2.0 port (Type B) Connect to your computer to this port to use the printer and scanner functions.
18 LAN connector Connect the LAN cable to this connector when the machine is used on a network.
19 Bypass tray extension Open this tray when loading paper in the bypass tray.
