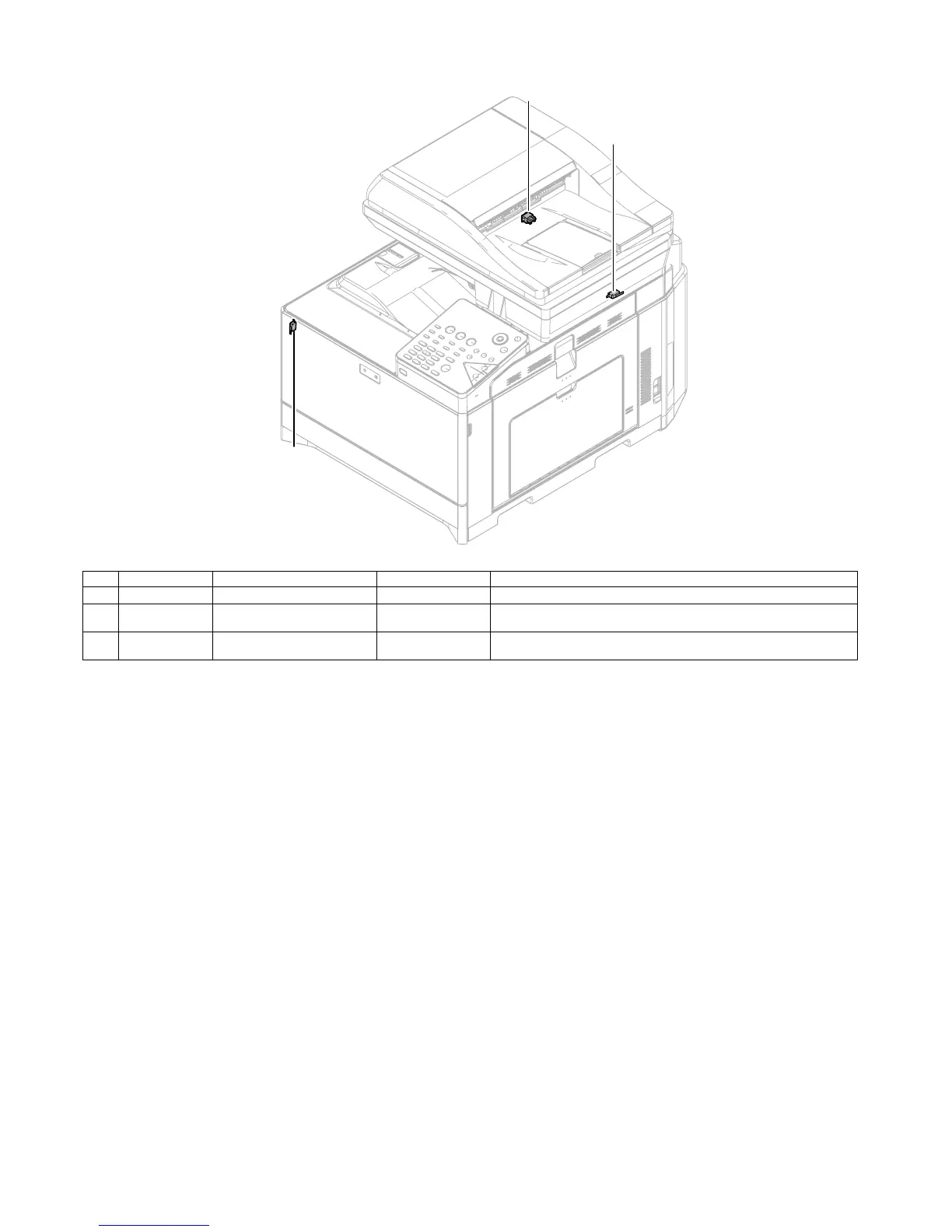

MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 9
H.Switch
No. Signal name Name Function/Operation Note
1
MSW
Main power switch Seesaw switch Turns ON/OFF the main power.
2 DSW_R Right door open/close switch Micro switch
Detects open/close of the right door. Opens/closes the power lines of the
fusing section, the motors, and the LSU laser.
3 DSW_F Front door open/close switch Micro switch
Detects open/close of the front door. Opens/closes the power lines of the
fusing section, the motors, and the LSU laser.
