MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 1
MX-C250
Service Manual
[10] DISASSEMBLY AND ASSEMBLY
1. Disassembly of Units
A. External view

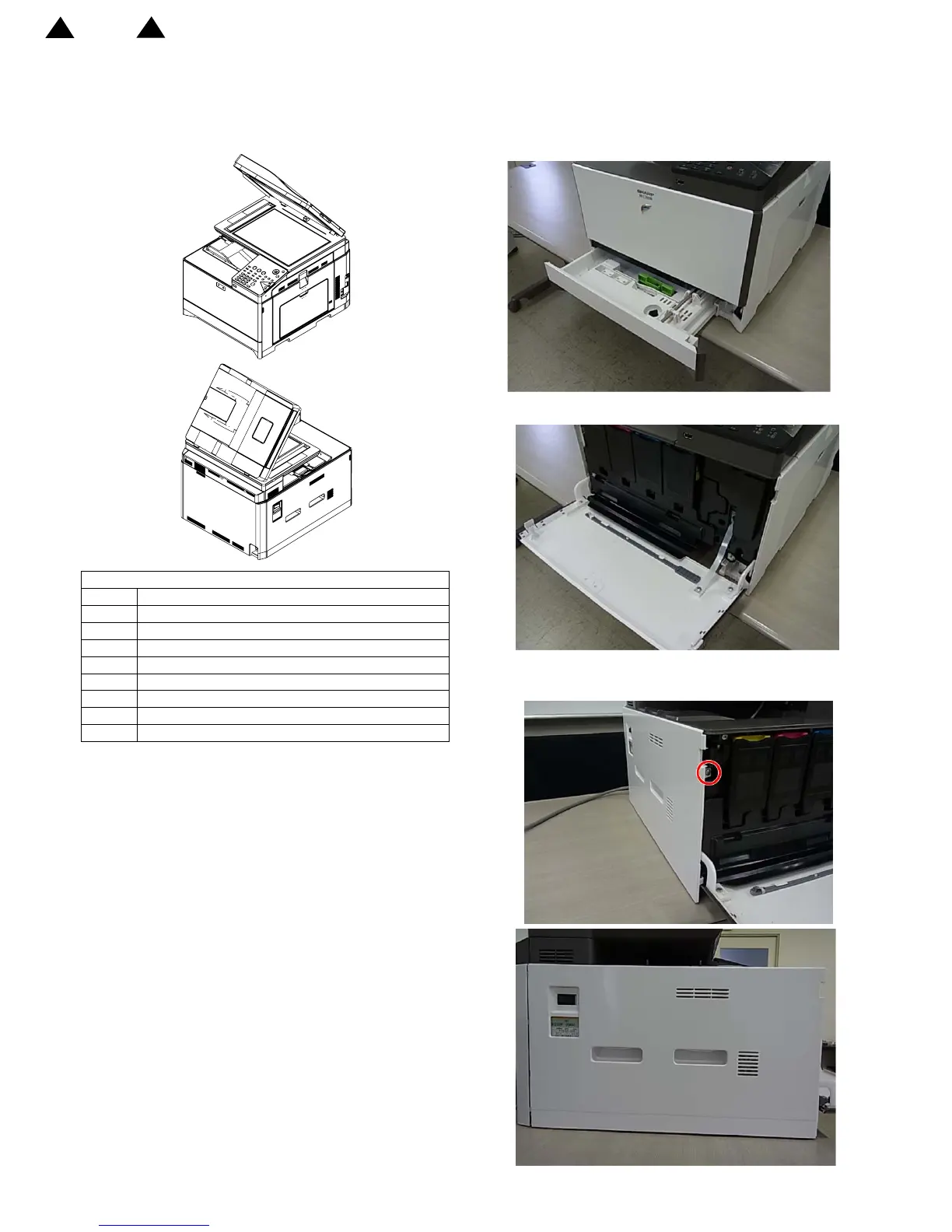

(1) Left cabinet NE
1) Pull out the Paper tray.
2) Open the front cover.
3) Remove a screw and unhook pawls. Then, remove the Left
cabinet NE.
Parts
1 Left cabinet NE
2 Paper exit tray
3 Operation base plate NE
4 Right cabinet front NE
5 Rear cabinet upper NE
6 Rear cabinet NE
7 Paper exit tray rear connection cabinet
8 Right cabinet rear NE
9 Upper cabinet right NE
1 ‘13 /Aug
2
‘13
/Oct
