Sharp MX-C300W Service Manual

MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 5

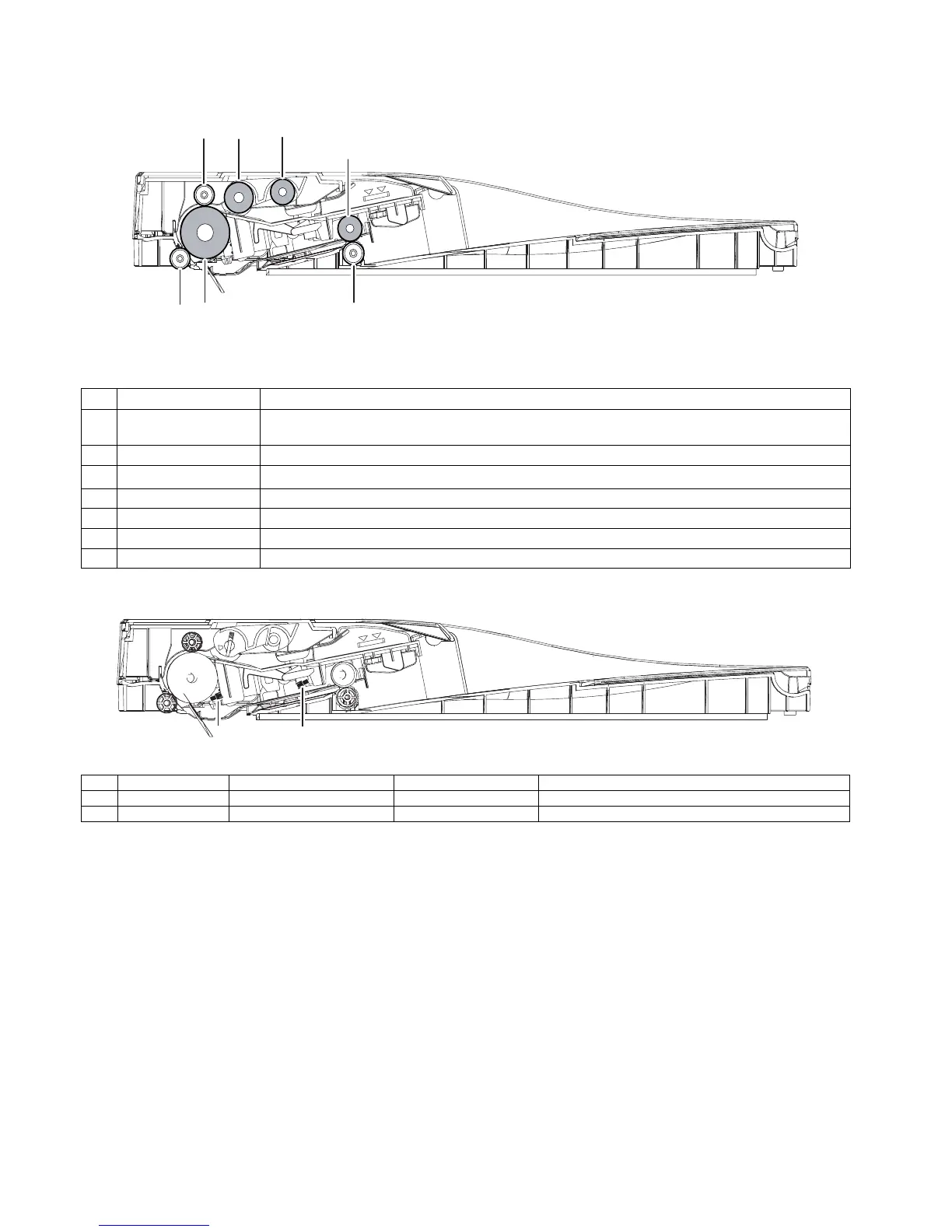

E.SPF
(1)Roller
(2)Detector
No. Name Function/ Operation
1 Paper exit pressure roller Applies pressure to a document and the paper exit drive roller to transport paper into the exit tray.
2 Paper exit roller Exit transport drive roller.
3 Transport pressure roller
Apply a pressure to paper and the transport roller to provide the transport power of the transport roller to
paper.
4 Transport pressure roller Applies pressure to document and drive roller to transport paper.
5 Transport drive roller Transports documents.
6 Pickup roller Picks up an original document and transports the lead edge to the Document Feed Roller.
7 Document Feed Roller Picks up a document and feeds it to the document feed roller.
No. Signal name Name Type Function/Operation
1 SPED Document sensor Light transmission Detects document empty
2 SPPD1 Paper transport detector 1 Light transmission Detects paper pass
1
2
3
4
5
6
7
1
2

Sharp MX-C300W Specifications

General

Print Technology	Laser
Print Speed (Black)	30 ppm
Print Speed (Color)	30 ppm
Print Resolution	600 x 600 dpi
Copy Speed (Black)	30 cpm
Copy Speed (Color)	30 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Mobile Printing	Yes
Max Paper Size	8.5" x 14"
Connectivity	USB, Ethernet, Wireless
Display	4.3-inch color touchscreen
Weight	29 kg
Scan Type	Flatbed, ADF
