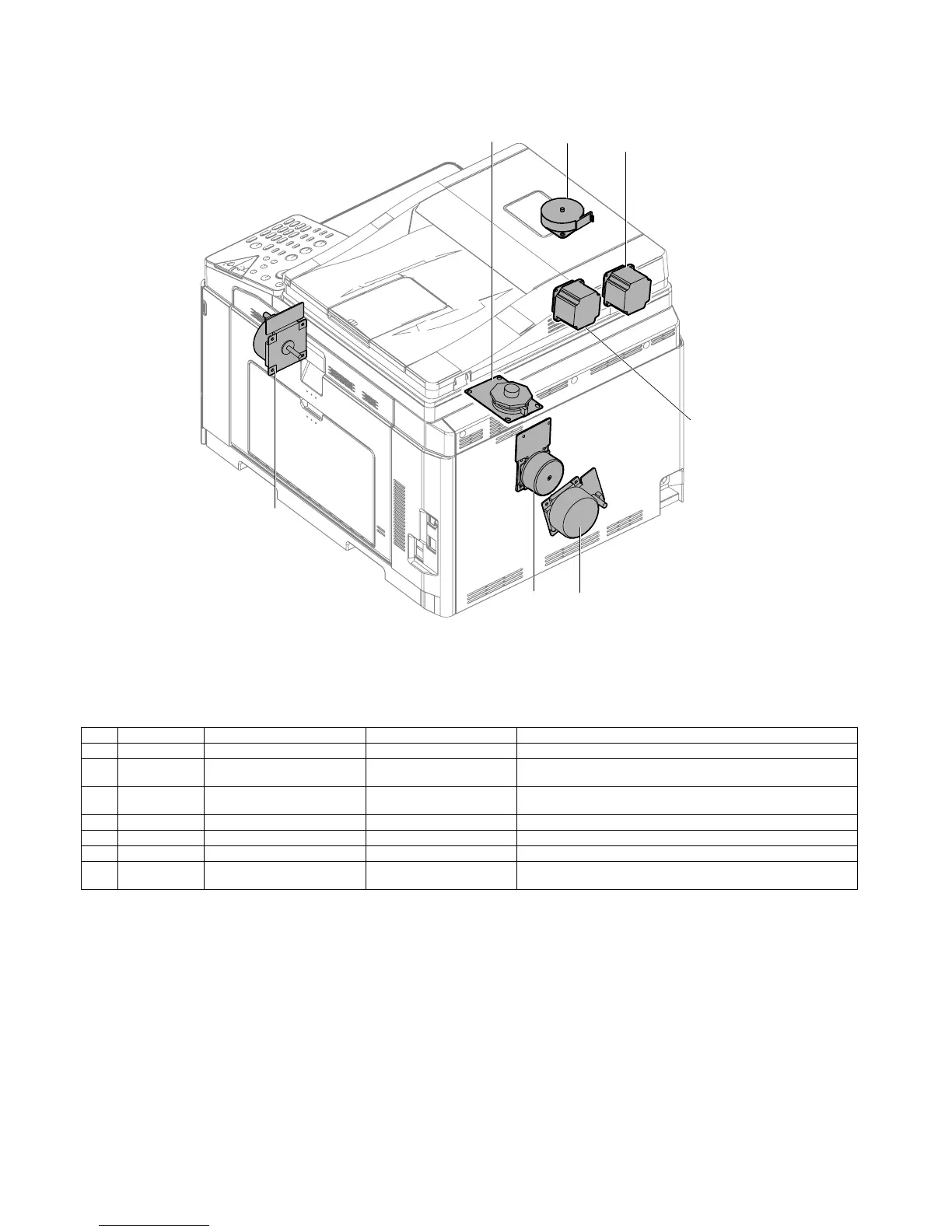

MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 11
J.Motors
No. Signal name Name Type Function/Operation
1 DVM Developing drive motor DC brush-less motor Drives the developing/OPC drum section (CL).
2DM
Drum Motor, Transfer Belt
Motor, Black OPC Drum Motor
DC brush-less motor Drives the developing/black OPC drum (BK)/transfer section.
3FUM
Fusing Motor and Paper Feed
Motor
DC brush-less motor Drives the fusing unit and the paper feed section.
4 SPFM SPF transport motor PM Stepping motor Drives the SPF unit.
5 RSPFM RSPF transport motor HB Stepping motor Drives the RSPF unit.
6 PGM Polygon motor DC brush-less motor Drives the polygon mirrors to reflect the twin laser beams per color.
7 MIM SCN motor NE
Scans the laser beams with
Stepping Motor
Drives the CIS unit.
1
4
3
5
6
7
2
