Sharp MX-C300W Service Manual

MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 4

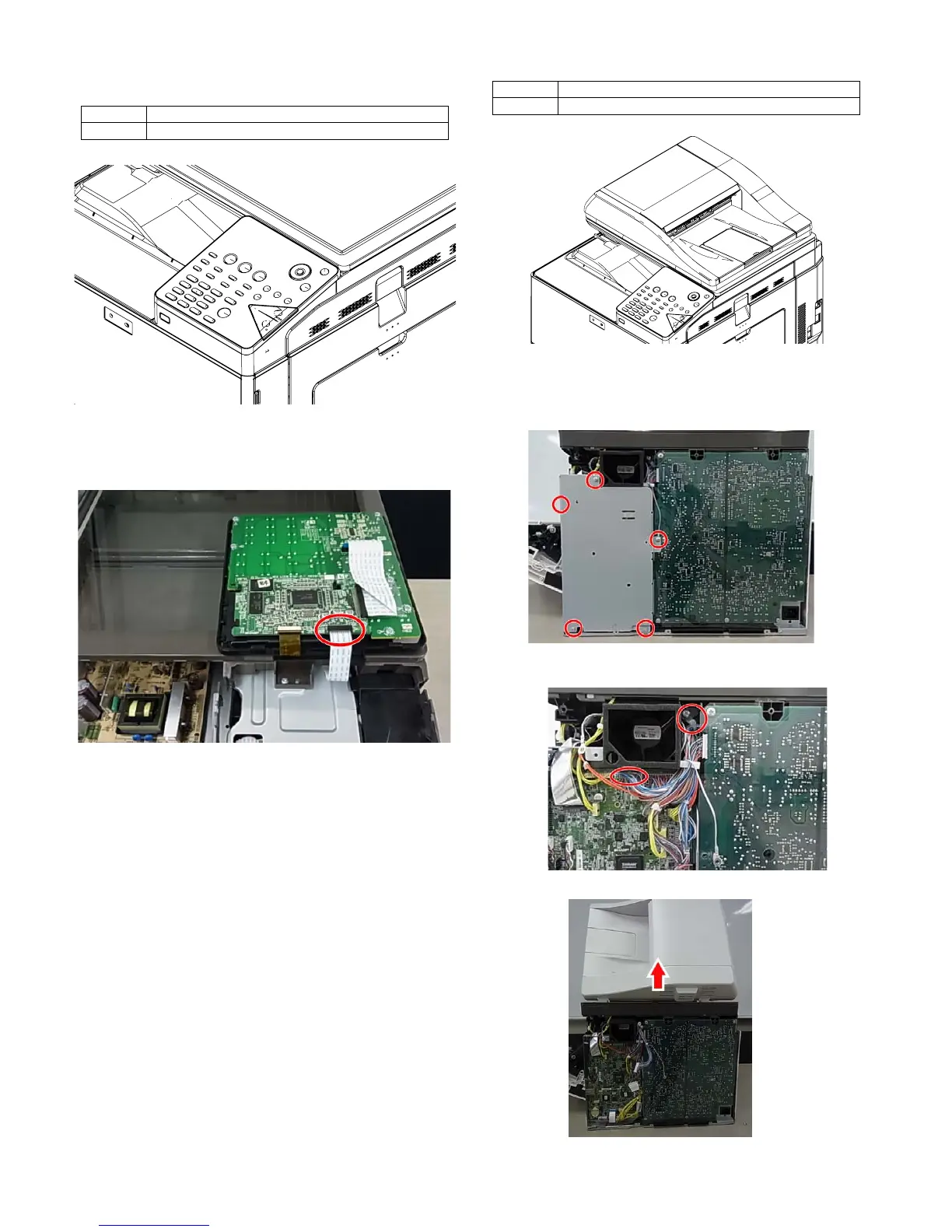

B. Operation panel section
(1) Operation panel unit
1) Remove the Left cabinet NE and the Operation base plate NE.
2) Remove the ribbon cable and the Operation panel unit.
C. RSPF/SPF unit
(1) RSPF/SPF unit
1) Remove the Rear cabinet NE, the Right cabinet NE and the
Upper cabinet right NE.
2) Remove the earth cable and the MFP PWB shield.
3) Remove the RSPF cable from the MFP PWB and the screw fix-
ing the RSPF cable.
4) Remove the RSPF/SPF unit from the main unit.
No. Name
1 Operation panel unit
No. Name
1 RSPF/SPF unit
