Sharp MX-C300W

MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 15

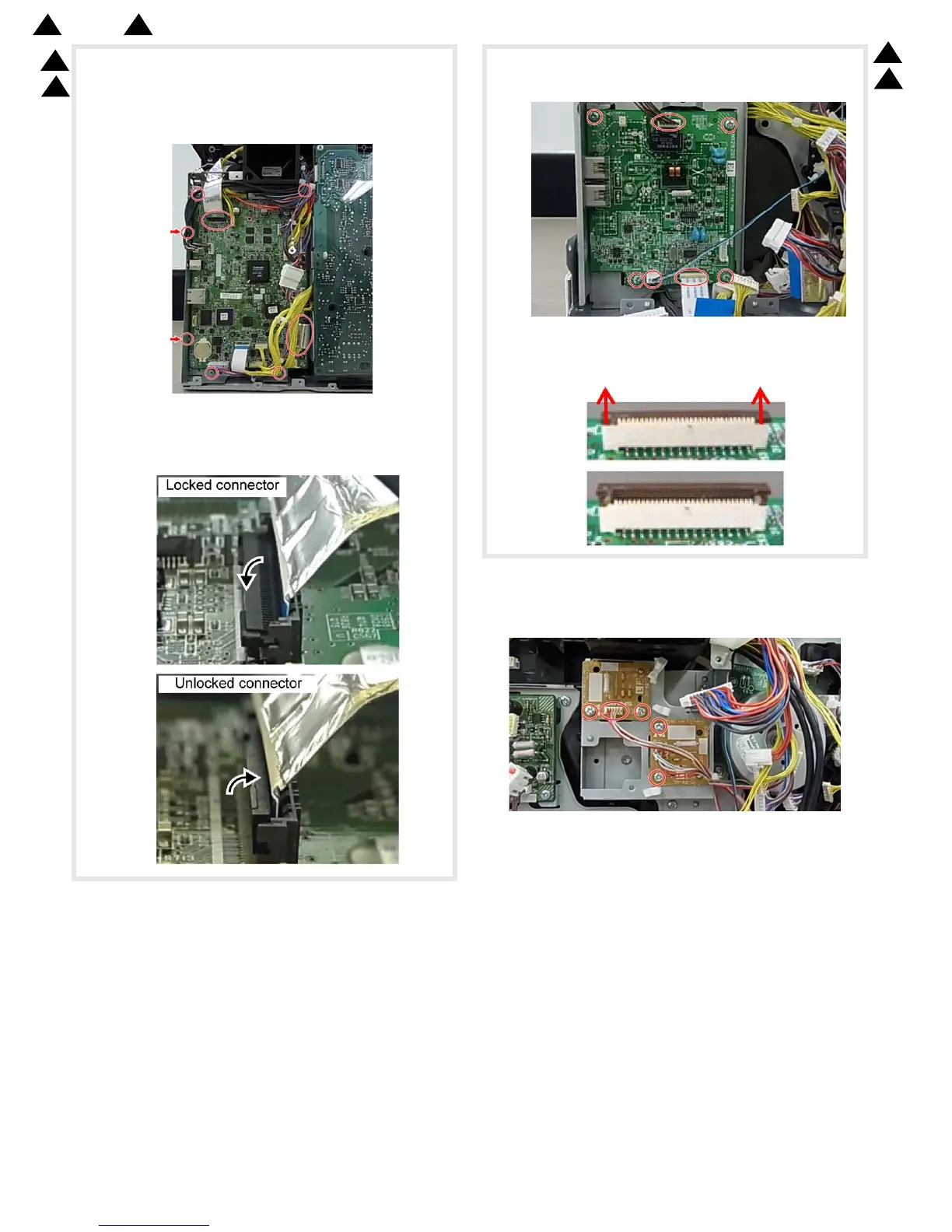

(5)FAX PWB
1) Remove the harnesses and the FFC connected to the MFOC
PWB and remove the MFPC unit.
* It is necessary to remove the FFC by releasing the lock of the
FFC connector.
When the connection part of the connector is lifted up as shown
in the figure, the connector is unlocked. It is necessary to
remove the FFC with releasing the lock of the connector.
2) Remove the FAX PWB.
* It is necessary to remove the harness and FFC by releasing
the lock of the FFC connector.
Release the lock by lifting up the lock lever as shown in the fig-
ure. It is necessary to remove the FFC with releasing the lock of
the connector.
(6)FAN IF PWB
1) Remove the MFPC unit.
2) Remove the FAN IF PWB.
