MX-C250 DISASSEMBLY AND ASSEMBLY 10 – 18
B.SPF unit

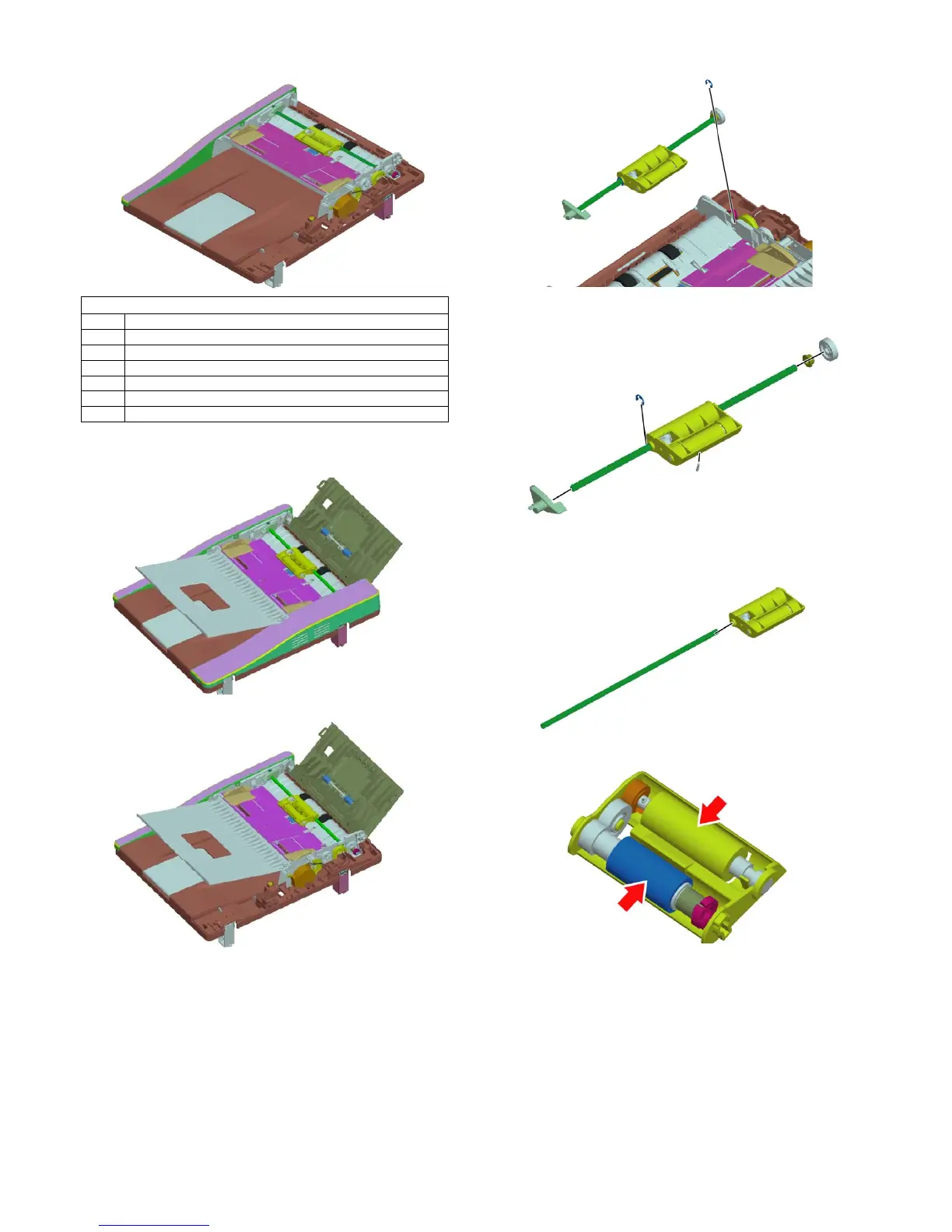

(1) Pick up roller, Paper feed roller
1) Open the upper door cabinet R and the paper tray R NE.
2) Remove the Rear cabinet R.
3) Remove the E ring, remove the paper feed shaft unit.
4) Remove the pressure release lever, bearings washers, stop-
per, the pin and Paper feed drive gear.
5) Remove the paper feed shaft.
6) Remove the Paper feed roller and the Pick up roller.
Parts
1 Pick up roller
2 Paper feed roller
3 Paper exit roller
4 Transport roller
5 Transport auxiliary roller
6 Discharge brush
7OC mat
