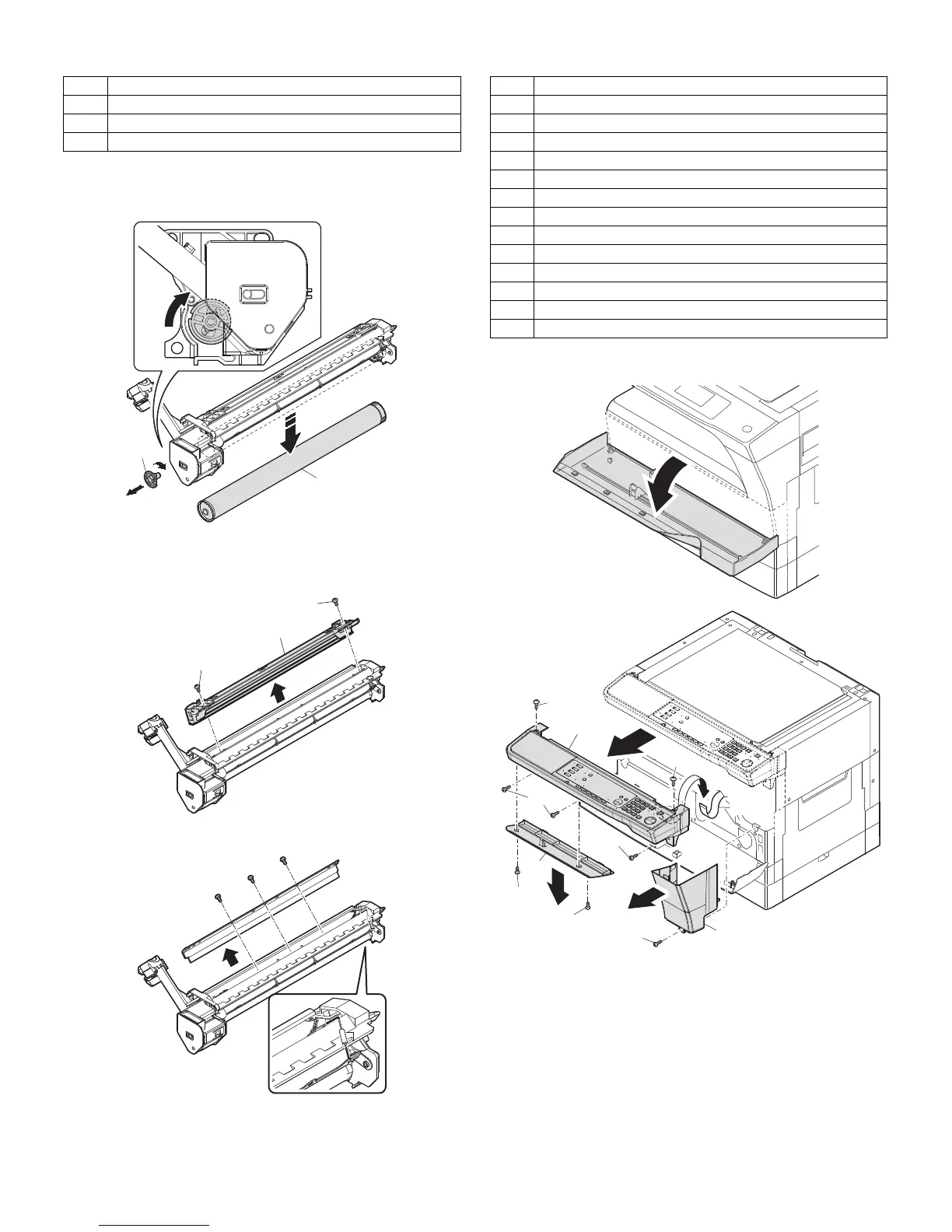

MX-M200D DISASSEMBLY AND ASSEMBLY 11-15
12.Process section
A.Drum unit
When removing the drum, put the drum unit upside down to prevent
waste toner from spilling.
When the drum is replaced, be sure to replace the drum positioning boss
with a new one, too.
B. Main charger unit
C.Cleaning blade
When installing a resistor, check to confirm that the terminal section is in
contact with the metal section of the cleaning blade.
13.Others
A. Operation P.W.B.
No. Contents
A Drum unit
B Main charger unit
C Cleaning blade
(2)
(1)
(1)
(1)
(2)
No. Contents
A Operation P.W.B.
B Tray interface P.W.B.
C 2nd tray paper entry sensor / Paper empty sensor
D 2nd tray paper feed solenoid / Transport solenoid
E 2nd tray transport clutch
F 2nd tray transport roller
G 2nd tray paper feed clutch
H 2nd tray paper feed roller
I Main motor
J I/F P.W.B.
K Paper entry sensor
L Paper empty sensor
M Paper feed roller
(3)
(4)
(3)
(1)
(2)
(5)
(5)
(5)
(6)
(7)
(5)
