MX-M200D DISASSEMBLY AND ASSEMBLY 11-1

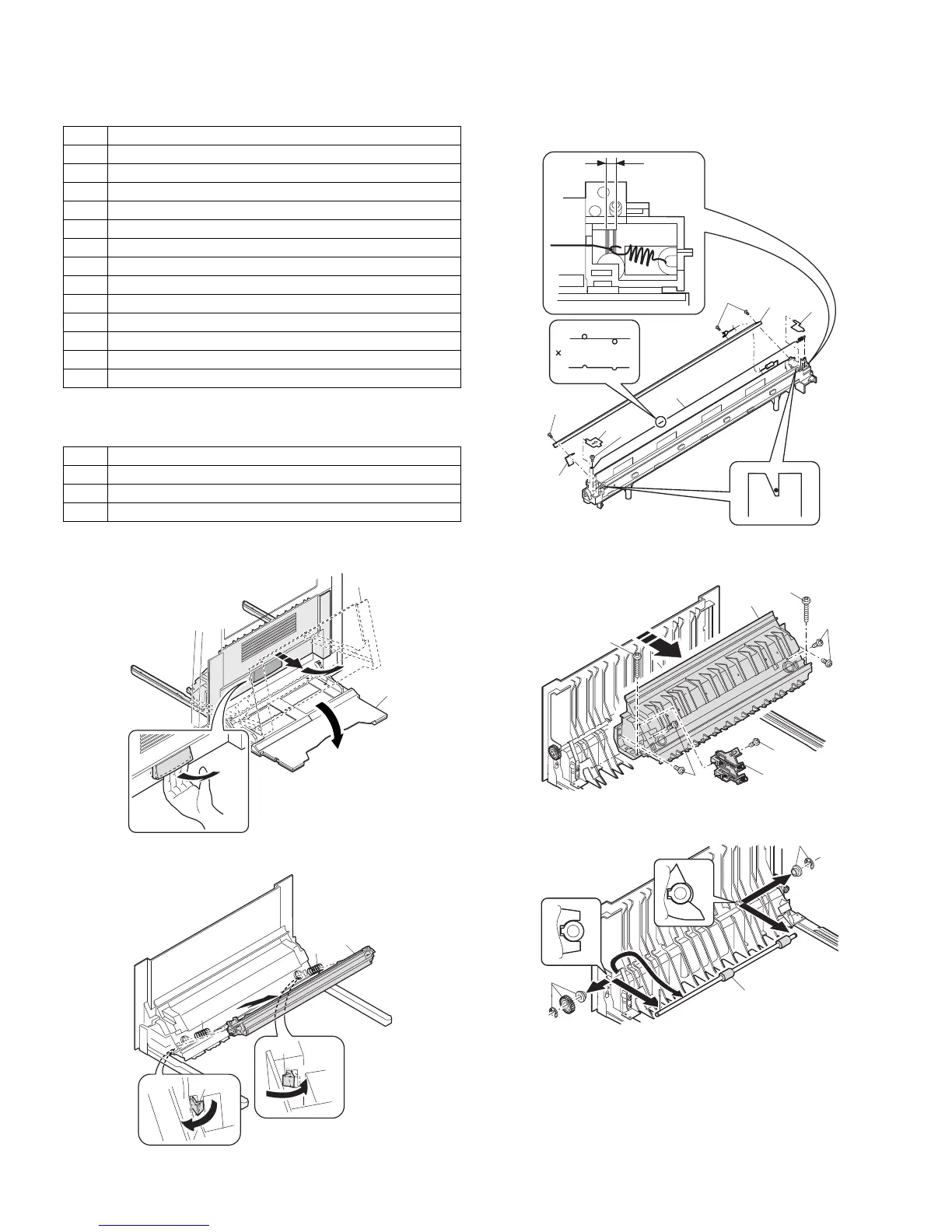

[11]DISASSEMBLY AND ASSEMBLY
WARNING Before performing the disassembly procedure, be sure to
remove the power cord to prevent against an electric shock.
1. High voltage section/Duplex transport
section
A.Transfer charger unit
B.Charger wire
Installation: The spring tip must be between two reference ribs.
•The charger wire must be free from twists or bending.
•Be sure to put the charger wire in the V groove.
C.Duplex transport section
No. Item
1 High voltage section/Duplex transport section
2 Optical section
3 Fusing section
4 Paper exit section
5 MCU
6 Optical frame unit
7 LSU
8 Tray paper feed section/Paper transport section
9 Bypass tray section
10 Power section
11 Developing section
12 Process section
13 Others
No. Content
A Transfer charger unit
B Charger wire
C Duplex transport section
(3)
(1)
(2)
(1)
(1)
(2)
(3)
(3)
(3)
(5)
(4)
(2)
(3)
(2)
(1)
(1)
(1)
(2)
(3)
(3)
(4)
(3)
(3)
(1)
(1)
(2)
