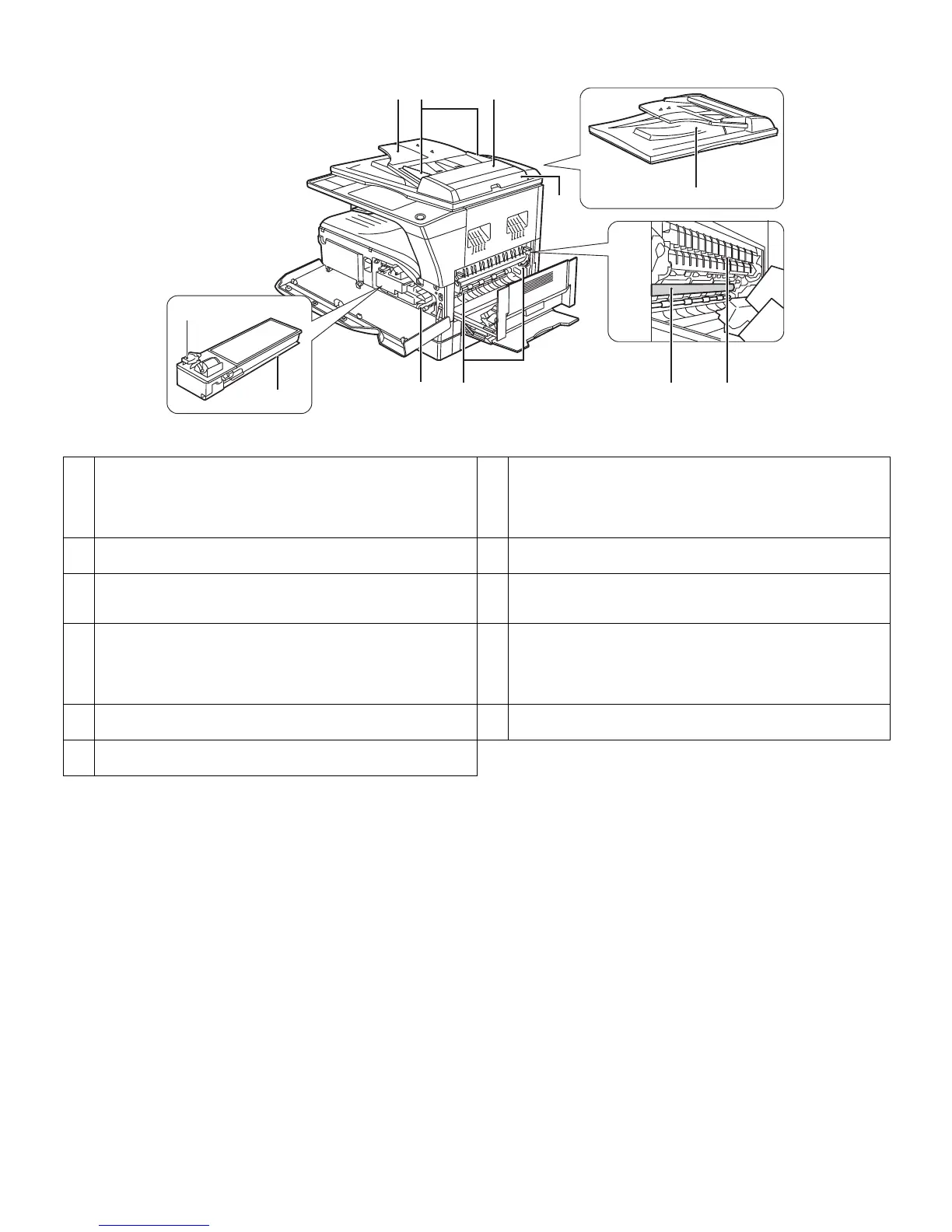

MX-M200D EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-2
2. Internal
18 Toner cartridge lock release lever
To replace the toner cartridge, pull out the toner cartridge while
pushing on this lever.
24 Fusing unit release levers
To remove the paper misfed in the fusing unit, push down on these
levers and remove the paper.
* The fusing unit is hot. Do not touch the fusing unit when removing misfed
paper. Doing so may cause a burn or injury.
19 Toner cartridge
Contains toner..
25 Roller rotating knob
Rotate to remove misfed paper.
20 Document feeder tray
Place the original(s) that you wish to scan face up here. Up to 40
sheets can be placed.
26 Exit area
Originals exit the machine here after copying/scanning when the
SPF is used.
21 Original guides
Adjust to the size of the originals.
27 Photoconductive drum
Images are formed on the photoconductive drum.
* Do not touch the photoconductive drum (green portion) when removing the
misfed paper. Doing so may damage the drum and cause smudges on cop-
ies.
22 Feeding roller cover
Open to remove misfed originals.
28 Fusing unit paper guide
Open to remove misfed paper.
23 Right side cover
Open to remove misfed originals.
