MX-M200D SIMULATIONS 7-43
50 18 Memory reverse position adjustment in duplex copy
Used to adjust the reverse point (scanning end position) on the reversed surface in duplex copy.
When this simulation is executed, the selection window of the adjustment items and the current set value
are displayed
The adjustment value is in the range of 1 - 99.
Front surface print in S-D mode and even page print in D-S mode are reverse memory copy operations from
the document rear edge.
When, therefore, the print start position adjustment of the output image is required, adjust as follows:
The image in the reverse memory copy is printed from the scanning rear edge when the document scanning
direction is in the arrow direction as shown below.
If, therefore, the print lead edge is shifted, set the reference chart with the rear edge on the reference
position, and adjust the simulation set value with this simulation so that the print image lead edge matches.
Since printing is started at the print start position from the last memory image data to the head data, the end
data position saved in the memory is changed by changing the scanning end position with the simulation,
adjusting the image lead edge position.
Select an adjustment item (mode) with the arrow keys, and enter the set value with numeric keys.
When [OK] key is pressed, the entered value is saved to the EEPROM and the machine shifts to the copy
execution window.
After completion of copying, the machine returns to the adjustment value input window.
When [START] key is pressed instead of [OK] key, the machine shifts to the copy execution window and
performs copying.
(MX-M200D/MX-
M160D only)
(Execution is
allowed when
DUPLEX setting is
ON, and RSPF is
installed.)
Default:
OC: 50
SPF: 50
Main
code
Sub
code
Contents Remark
Sim50-18 DUP REV.
1:OC
2:SPF
[ 1- 99]
50
50
50

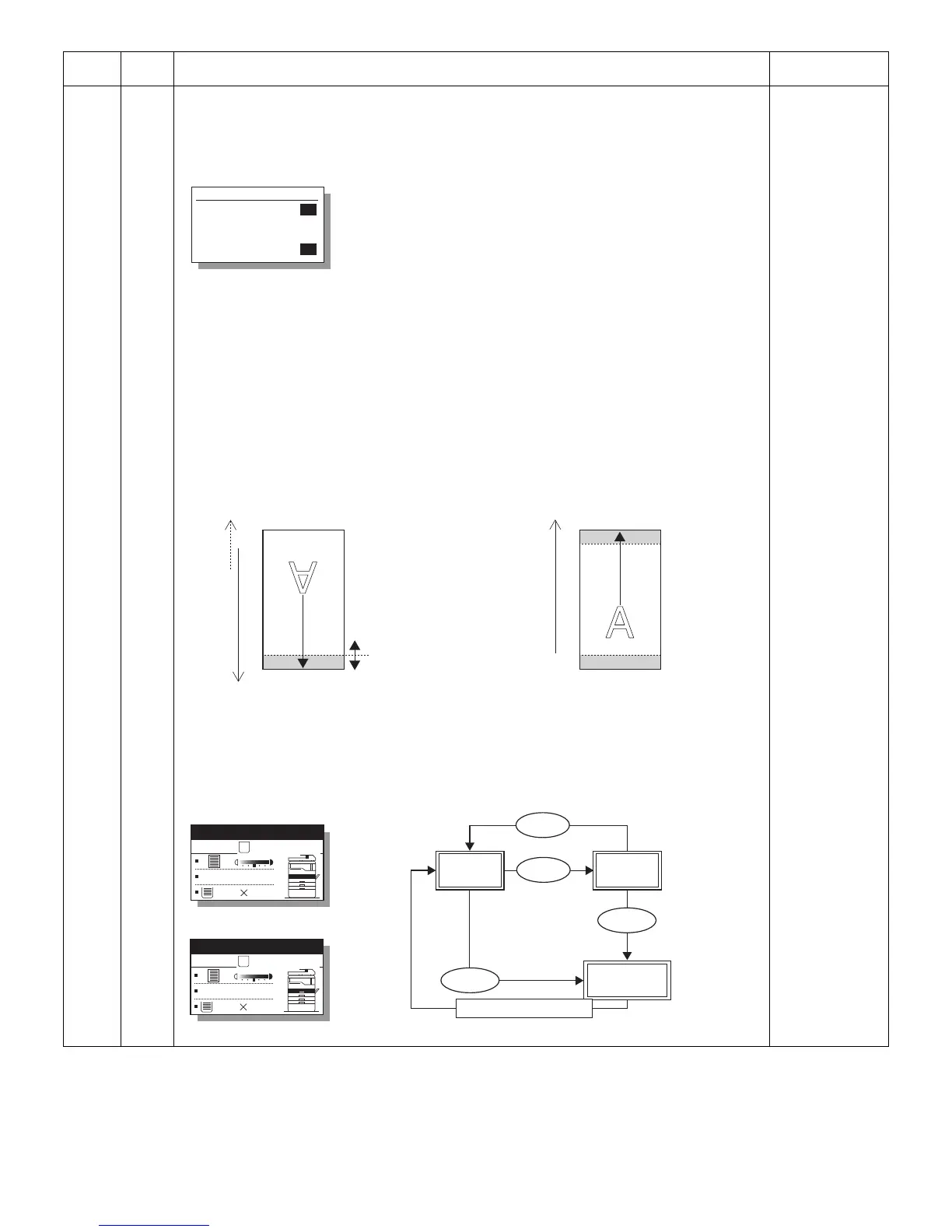

(Adjustment item selection window)
Display text array : Adjustment mode
1: OC : OC memory reverse output position
2: SPF : RSPF memory reverse output position
Scan end position
(Default: Void (1) is not scanned.)
Scan direction Scan rear edge
Scan lead edge
Document transport
direction
Print lead edge
Lead edge void (1
Print start position
Rear edge void
Print rear edge
Paper transport
direction
Ready to copy.
S
100%
8 1/2
11
(Copy start window)
Copies in progress.
S
100%
8 1/2
11
(Copy execution window)
Adjustment
item selection
window
Copy start
window
Copy execution
window
End of copy execution
[BACK] key
[START] key
[START] key
[OK] key
