SHARP

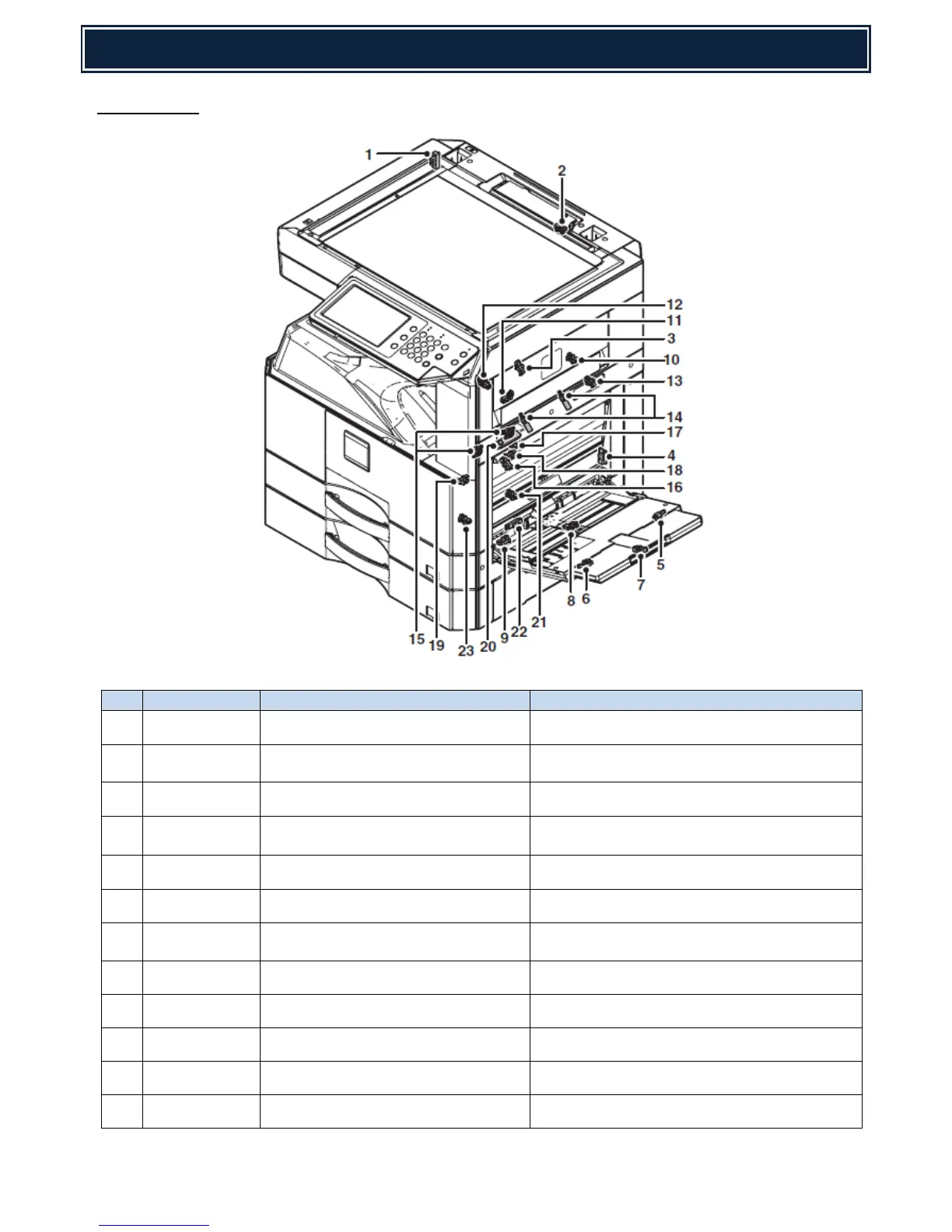

SENSOR & SWITCH LOCATION
39
MAIN ENGINE
No.
Code
Name
Function operation
1
MHPS
Mirror home position sensor
Detects the mirror (scanner unit) home position.
2
OCSW
Paper size detection trigger sensor
Detects generation of the paper size detection
trigger signal.
3
TM_COUNT
Toner motor sensor
Detects the rotation of the toner motor.
4
TH_RA
HUD_RA
Temperature sensor/ Humidity sensor
Machine temperature/humidity detection
5
MTOP1
Manual feed tray empty sensor 1
Manual feed tray position detection
6
MTOP2
Manual feed tray empty sensor 2
Manual feed tray position detection
7
MPLD1
Manual feed length detection
sensor 1
Manual feed paper length detection
8
MPWD
Manual feed width detection sensor
Manual feed paper width detection
9
MPED
Bypass tray sensor
Bypass tray transport detection
10
SHPOS
Shifter home position sensor
Shifter home position sensor detection
11
POD1
1st paper exit sensor
1st paper exit detection
12
TFD1
1
st
exit tray full detection sensor
1
st
exit tray full detection
