SENSOR & SWITCH LOCATION
SHARP
40
No.
Code
Name
Function operation
13
POSD
Paper exit sensor (DUP side)
Paper transport detection
14
TH_UM/ TH_US
Thermistor
Fusing temperature detection
15
RDTCT
Thermostat
Fusing section abnormally high temperature
detection
16
PPD1
Paper in sensor
Paper transport detection
17
C1SS
1
st
paper tray empty detection
Tray paper empty detection
18
C1LUD
1st tray paper upper limit detection
sensor
1st tray paper upper limit detection
19
C1PED
1st tray paper empty sensor
1st tray paper empty detection
20
TCS
Toner density sensor
Detects the toner density in the developing unit.
21
C2LUD
2nd tray paper upper limit detection
sensor
2nd tray paper upper limit detection
22
C2PFD
2nd tray paper pass sensor
2nd tray paper pass
23
C2PED
2nd tray paper empty sensor
2nd tray paper empty detection

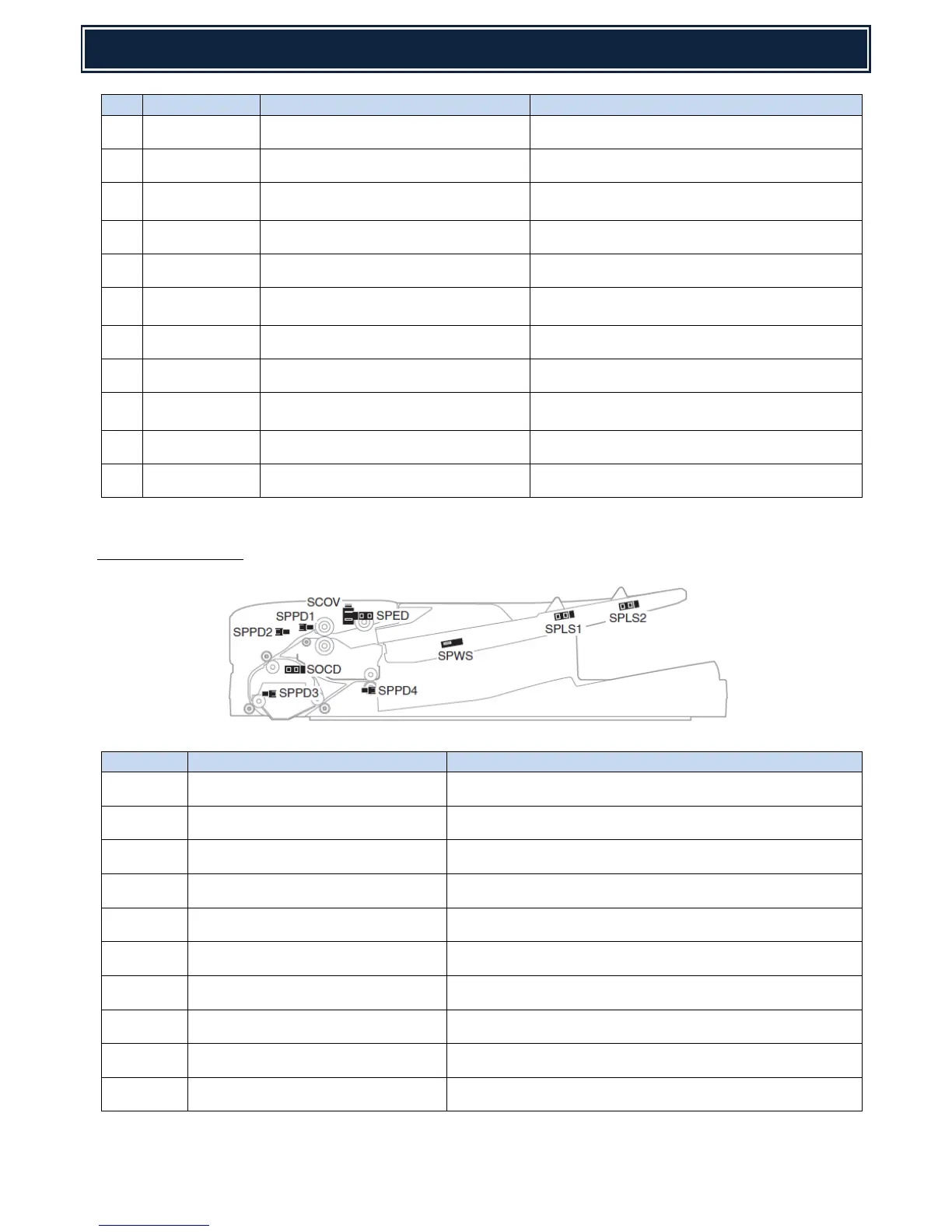

DOCUMENT FEEDER
Signal
Name
Function/Operation
SCOV
RSPF cover open/close detector
Detects open/close of the RSPF cover.
SOCD
RSPF open/close sensor
Detects open/close of the RSPF unit.
SPED
Document sensor
Detects document empty in the RSPF paper feed tray.
SPLS1
Paper size detector 1
Detects the document length in the RSPF paper feed tray.
SPLS2
Paper size detector 2
Detects the document length in the RSPF paper feed tray.
SPPD1
Document transport sensor 1
Detects paper feed and the document size in random paper feed.
SPPD2
Document transport sensor 2
Detects paper pass.
SPPD3
Document transport sensor 3
Detects paper pass.
SPPD4
Document transport sensor 4
Detects paper exit and switchback.
SPWS
Document size detector
Detects the document width.
