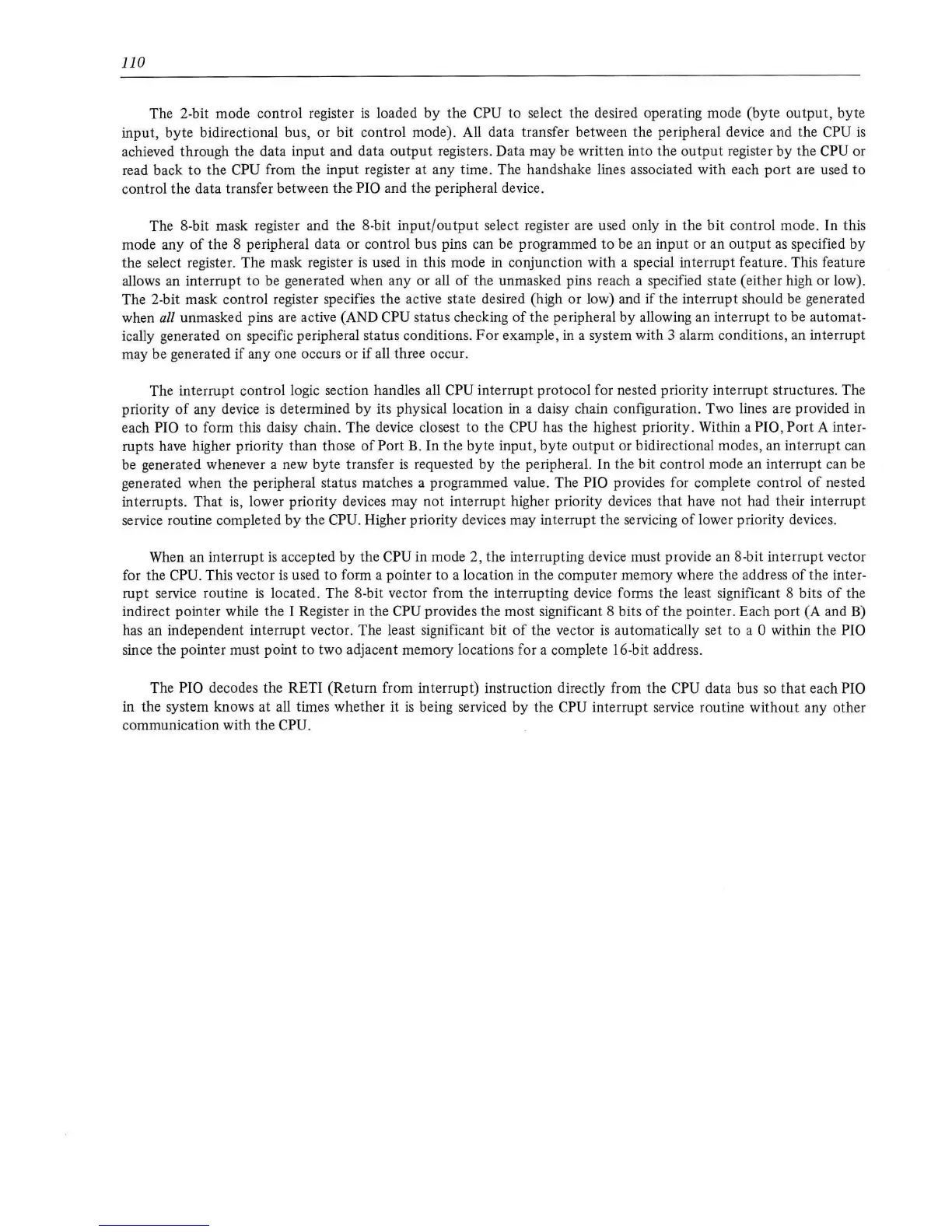

110
The 2-bit mode control register
is
loaded
by
the CPU to select the desired operating mode (byte
output,
byte
input, byte bidirectional bus, or bit control mode). All data transfer between the peripheral device and the
CPU
is
achieved through the data input and data
output
registers. Data may be written into the
output
register
by
the CPU or
read back
to
the CPU from the input register at any time. The handshake lines associated with each
port
are used
to
control the data transfer between the PIO and the peripheral device.
The 8-bit mask register and the 8-bit
input/output
select register are used only in the
bit
control mode. In this
mode any
of
the 8 peripheral data or control bus pins can be programmed
to
be an input or an
output
as
specified by
the select register. The mask register
is
used in this mode in conjunction with a special interrupt feature. This feature
allows an interrupt
to
be generated when any or all
of
the unmasked pins reach a specified state (either high or low).
The 2-bit mask control register specifies the active state desired (high
or
low) and if the interrupt should
be
generated
when
all
unmasked pins are active (AND CPU status checking
of
the peripheral
by
allowing an interrupt to be automat-
ically generated on specific peripheral status conditions.
For
example,
in
a system with 3 alarm conditions, an interrupt
may be generated
if
any one occurs or if all three occur.
The interrupt control logic section handles all
CPU interrupt protocol for nested priority interrupt structures. The
priority
of
any device
is
determined
by
its physical location in a daisy chain configuration. Two lines are provided
in
each PIO to form this daisy chain. The device closest to the CPU has the highest priority. Within a PIO,
Port
A inter-
rupts have higher priority than those
of
Port B. In the byte input, byte
output
or bidirectional modes, an interrupt can
be
generated whenever a new byte transfer
is
requested
by
the peripheral. In the bit control mode an interrupt can be
generated when the peripheral status matches a programmed value. The
PIO provides for complete control
of
nested
interrupts. That
is
, lower priority devices may
not
interrupt higher priority devices that have not had their interrupt
service routine completed
by
the CPU. Higher priority devices may interrupt the servicing
of
lower priority devices.
When an interrupt
is
accepted by the CPU in mode 2, the interrupting device must provide an 8-bit interrupt vector
for the CPU. This vector
is
used
to
form a pointer
to
a location in the computer memory where the address
of
the inter-
rupt service routine
is
located. The 8-bit vector from the interrupting device forms the least significant 8 bits
of
the
indirect pointer while the I Register in the
CPU provides the most significant 8 bits
of
the pointer. Each port (A and B)
has
an
independent interrupt vector. The least significant bit
of
the vector
is
automatically set to a 0 within the PIO
since the pointer must point to two adjacent memory locations for a complete 16-bit address.
The
PIO decodes the RETI (Return from interrupt) instruction directly from the CPU data bus
so
that
each PIO
in the system knows at all times whether it
is
being serviced by the CPU interrupt service routine without any other
communication with the CPU.
