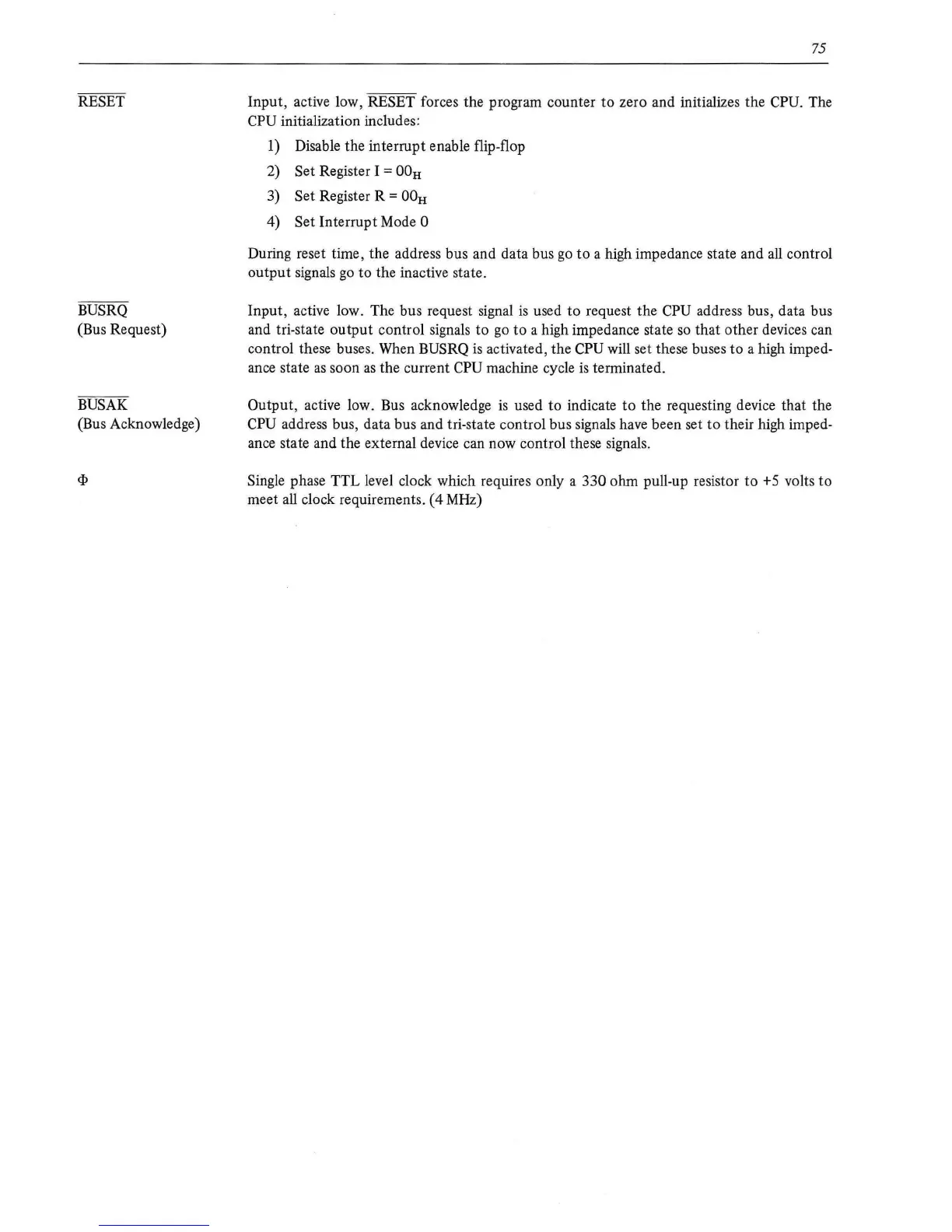

RESET
BUSRQ
(Bus Request)
BUSAK
(Bus Acknowledge)
75
Input, active low, RESET forces the program counter
to
zero and initializes the CPU. The
CPU
initialization includes:
1)
Disable the interrupt enable flip-flop
2) Set Register I =
OOH
3) Set Register R =
OOH
4) Set Interrupt Mode 0
During reset time, the address bus and data bus
go
to
a high impedance state and
all
control
output
signals
go
to the inactive state.
Input, active low. The bus request signal
is
used
to
request the CPU address bus, data bus
and tri-state output control signals
to
go
to
a high impedance state
so
that other devices can
control these buses. When
BUSRQ
is
activated, the CPU will set these buses
to
a high imped-
ance state
as
soon
as
the current
CPU
machine cycle
is
terminated.
Output, active low. Bus acknowledge
is
used
to
indicate
to
the requesting device that the
CPU
address bus, data bus and tri-state control bus signals have been set
to
their high imped-
ance state and the external device can now control these signals.
Single phase
TTL
level clock which requires only a 330 ohm pull-up resistor
to
+5
volts
to
meet all clock requirements. ( 4 MHz)
