Sharp PN-E702 User Manual

10
E
n

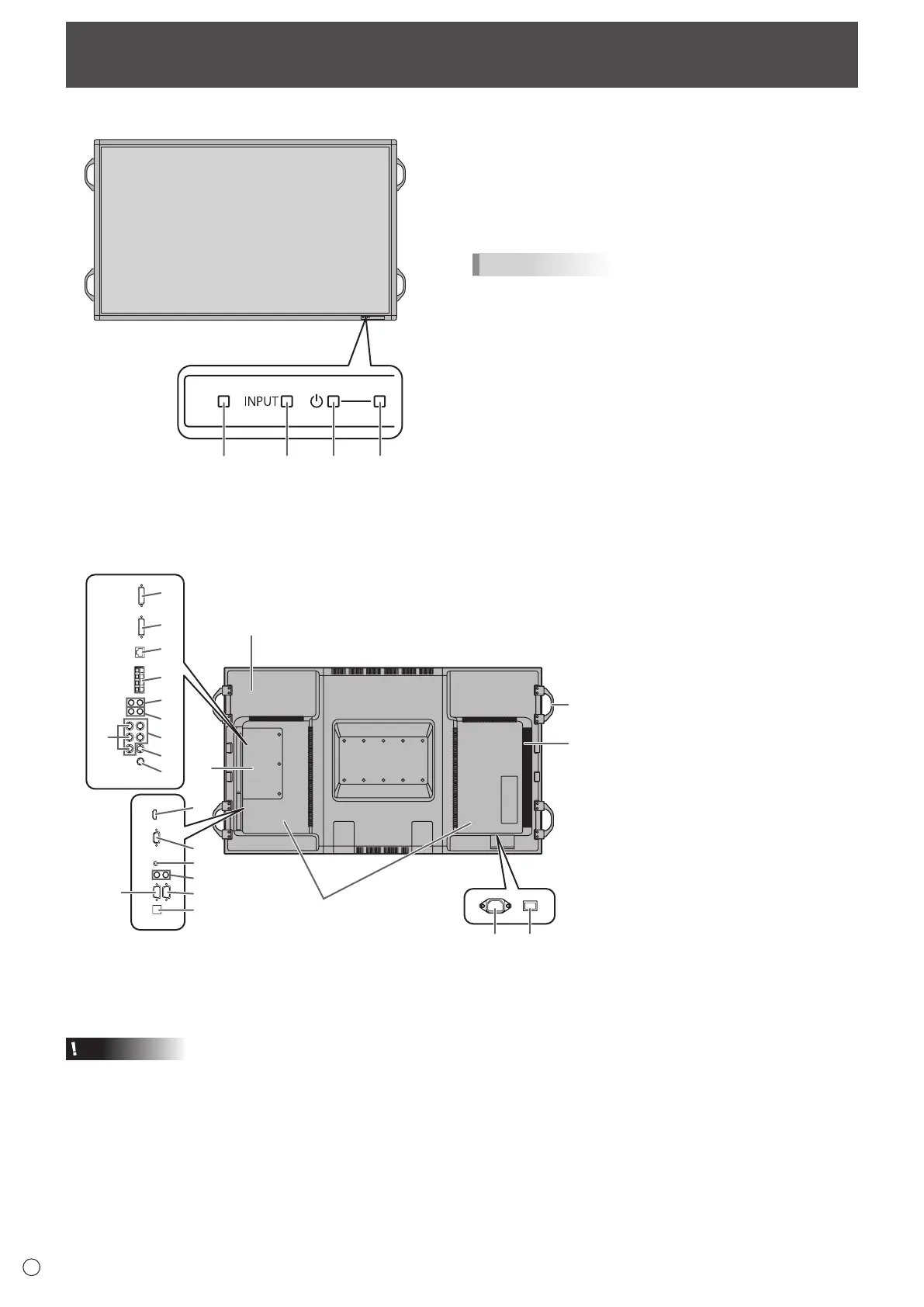

Front view
1
2345
1. LCD panel
2. Remote control sensor (Seepage15.)
3. Input switch (Seepage18.)
4. Power switch (Seepage16.)
5. Power LED (Seepage16.)
TIPS
• Useapointedobjectsuchasapentiptopressthe
switches at the front of the monitor.
Part Names
n
Rear view
17
16
15
18
21
20
19
23
22
5
6
7
8
9
10
11
12
24
1
3
4
13 14
2
When the PN-ZB01
(optional) is attached
1. Optional attachment section
This section is used to connect optional
hardware for function expansion.
Offering this attachment location is
not a guarantee that future compatible
hardware attachments will be released.
2. Speakers
3. Handles (Seepage14.)
4. Vents
5. Expansion terminal cover
Additional input/output terminals are
availablebyattachingthePN-ZB01
expansionboard(optional).
6. PC/AV HDMI input terminal (Seepage
12.)
7. PC D-sub input terminal (Seepage
12.)
8. Audio input terminal (Seepage12.)
9. Audio output terminals (Seepage12.)
10. RS-232C output terminal (Seepage
12.)
11. RS-232C input terminal (Seepage12.)
12. Optional terminal
This terminal is provided for possible
future(optional)functionexpansion.
Offering of this terminal is not a
guarantee that future expanded
functionality will be provided.
13. AC input terminal (Seepage14.)
14. Main power switch (Seepage16.)
Caution
• ConsultyourSHARPdealerforattachment/detachmentof
optional parts.
• Donotopentheexpansionterminalcoverbyyourself.
There are high voltage parts inside the cover which may
cause an electric shock.
When the PN-ZB01 (optional) is attached
15. PC/AV DVI-D input terminal (Seepage13.)
16. PC/AV DVI-D output terminal (Seepage13.)
17. LAN terminal (Seepage13.)
18. External speaker terminals (Seepage13.)
19. Audio 1 input terminals (Seepage13.)
20. Audio 2 input terminals (Seepage13.)
21. PC RGB input terminals (Seepage13.)
22. AV component input terminals (Seepage13.)
23. AV video input terminal (Seepage13.)
24. AV S-video input terminal (Seepage13.)

Sharp PN-E702 Specifications

General

3D	No
Pixel pitch	0.802 x 0.802 mm
Aspect ratio	16:9
Response time	6 ms
Display diagonal	70 \
Separate H/V sync	Yes
Supported video modes	1080p
Viewable size, vertical	865.6 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	1538.9 mm
Viewing angle, horizontal	176 °
Display brightness (typical)	450 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Audio system	stereo
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, SECAM
RS-232 ports	2
DVI-D ports quantity	0
Product color	Black
Panel mounting interface	200 x 200, 400 x 200 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	240 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth (without stand)	100 mm
Width (without stand)	1615 mm
Height (without stand)	947 mm
Weight (without stand)	50000 g
