Sharp PN-E702 User Manual

43
E

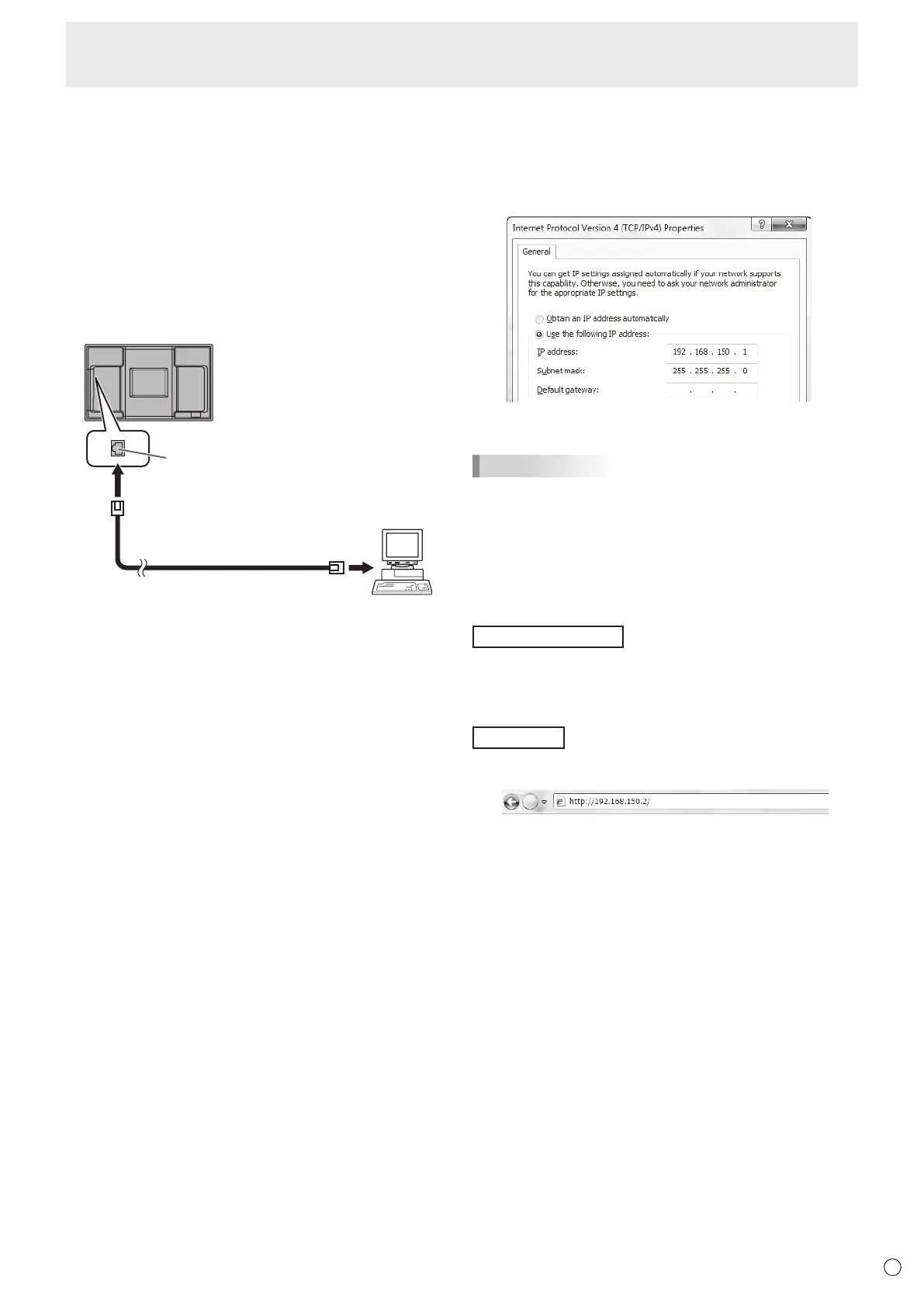

■ To set from a PC
WhenthemonitorisconnectedtoaPC,LANsettingscanbe
conguredviaPC.
Set up process
(1)ConnectyourmonitortoaPC
(2)SpecifythePC’sIPaddress
(3)Congurethemonitor’sLANsettings
(1) Connecting your monitor to a PC
ConnectacommerciallyavailablecrossoverLANcable
(UPTcable,Category5)totheLANportonthePCandthis
monitor.
LAN cable
(commercially available, crossover)
To LAN terminal
PC
LAN terminal
(2) Specifying the PC’s IP address
Tocongurethemonitor’sLANsettings,youmusttemporarily
changethesettingsonthePC.
ThisexplanationisbasedonWindows7.
1. LogontothePCwithanadministratoraccount.
2. Click[Start],andthenclick“ControlPanel”.
3. Click“Viewnetworkstatusandtasks”in“Networkand
Internet”.
In“ClassicView”,click“NetworkandSharingCenter”.
4. Click“LocalAreaConnection”andthen“Properties”.
5. Click“InternetProtocolVersion4(TCP/IPv4)”andthen
“Properties”.
6. Make a note of the current IP address, subnet mask, and
default gateway settings.
Make sure you write this information now as you will
be changing the IP address, subnet mask, and default
gateway settings back to these settings afterwards.
7. TemporarilychangetheIPaddressandsubnetmask.
To access the monitor as it is shipped from the factory, set
as follows.
• IPAddress:192.168.150.1
• SubnetMask:255.255.255.0
• DefaultGateway:(leaveblank)
8. Click[OK]andthenrebootthePC.
TIPS
• Thismonitorisfactorypresetasshownbelow.
(WhenDHCPCLIENTissettoOFF)
 IPAddress :192.168.150.2
 SubnetMask :255.255.255.0
 DefaultGateway :0.0.0.0
(3) Conguring the monitor’s LAN settings
AccessthemonitorusingInternetExplorer.
Controllingthemonitor
1. TurnthepowerONtothemonitor.
2. SetRS-232C/LANSELECTontheSETUPmenutoLAN.
3.SetDHCPCLIENTtoOFFinLANSETUPontheSETUP
menu.
PCoperation
4. LaunchInternetExplorer,inthe“Address”boxtype
“http://192.168.150.2/”andpresstheEnterkey.
You will be prompted to enter a user name and password.
5. Leavetheusernameandpasswordboxesblankandclick
[OK].
Controlling the Monitor with a PC (LAN)

Sharp PN-E702 Specifications

General

3D	No
Pixel pitch	0.802 x 0.802 mm
Aspect ratio	16:9
Response time	6 ms
Display diagonal	70 \
Separate H/V sync	Yes
Supported video modes	1080p
Viewable size, vertical	865.6 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	4000:1
Display number of colors	1.073 billion colors
Viewable size, horizontal	1538.9 mm
Viewing angle, horizontal	176 °
Display brightness (typical)	450 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Audio system	stereo
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, SECAM
RS-232 ports	2
DVI-D ports quantity	0
Product color	Black
Panel mounting interface	200 x 200, 400 x 200 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	240 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth (without stand)	100 mm
Width (without stand)	1615 mm
Height (without stand)	947 mm
Weight (without stand)	50000 g
