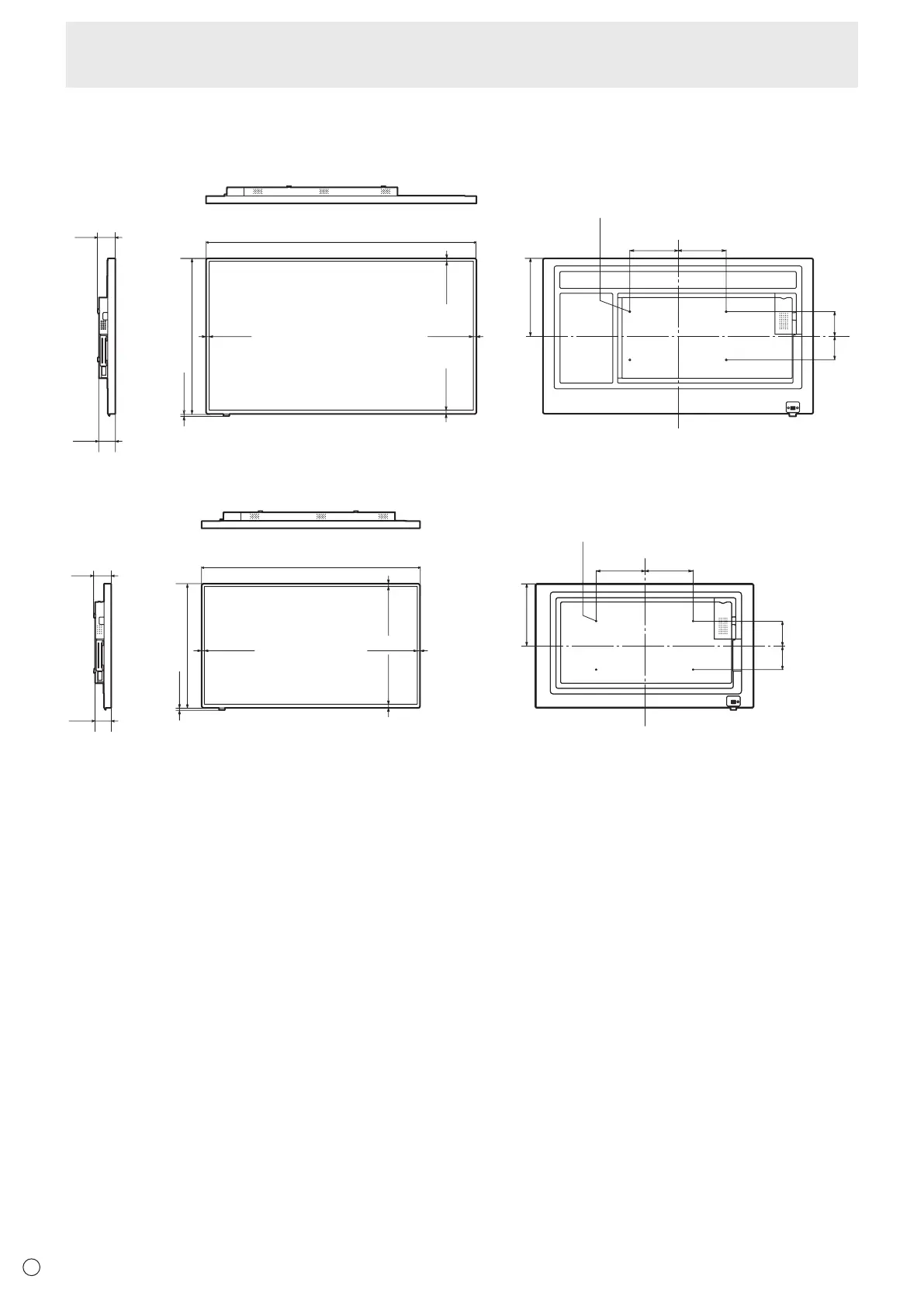

Dimensional Drawings
Note that the values shown are approximate values.
[PN-M501/PN-B501]
3-15/16
[100]
3-15/16
[100]
7-7/8 [200]7-7/8 [200]
44-3/16 [1123]
Unit: inch [mm]
VESA holes
12-11/16 [321.5]
25-1/2 [647]
1/2 [12.2]
5/8 [16.2]
5/16 [8.3]
1/2 [12.8]
1/2 [12.8]
2-1
1/16
[68]
2-3/4
[70]
[PN-M401/PN-B401]
3-15/16
[100]
3-15/16
[100]
7-7/8 [200]7-7/8 [200]
35-1/2 [902]
2-5/8
[66]
Unit: inch [mm]
VESA holes
10 [254.5]
20-3/16 [513]
7/16 [11]
5/8 [15.2]
5/16 [8.3]
7/16 [11]
7/16 [11]
2-1
1/16
[68]
When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method.
SHARP recommends using M6 screws and tighten the screws.
Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious
personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch
(8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times or
more the weight of the monitor.
n
DDC (plug and play)
The monitor supports the VESA DDC (Display Data Channel) standard.
DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters
is exchanged between the two. This function can be used if the computer supports DDC and it has been congured to detect
plug-and-play monitors.
There are several types of DDC, depending on the communication method used. This monitor supports DDC2B.
