Sharp PN-M401 Operation Manual

9
E
n

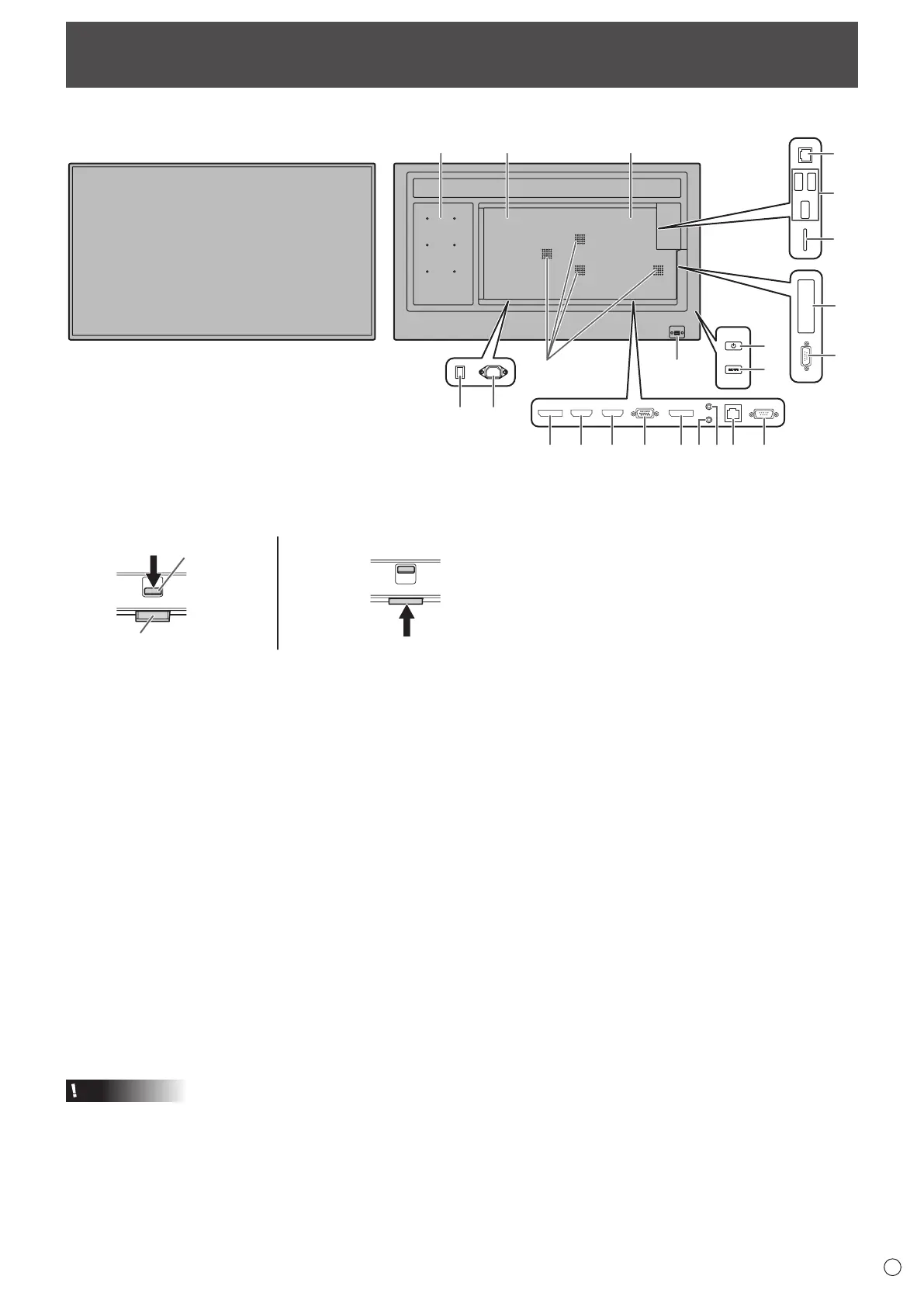

Front view
n
Rear view
1
2223 22
17
18
19
20
21
15
16
13
23
4567 8910 11 12
14*
* How to pull out the power LED/remote control sensor
Pull out Store
Lever
Power LED / Remote control sensor
• Slide the lever on the rear of the monitor to pull out the power LED/remote control sensor.
Press the power LED/remote control sensor directly to store it inside the monitor.
Part Names
1. LCD panel
2. Main power switch (See page 13.)
3. AC input terminal (See page 13.)
4. DisplayPort output terminal (See page 11.)
5. HDMI1 input terminal (See page 11.)
6. HDMI2 input terminal (See page 11.)
7. D-sub input terminal (See page 11.)
8. DisplayPort input terminal (See page 11.)
9. Audio input terminal (See page 12.)
10. Audio output terminal (See page 12.)
11. Optional terminal
This terminal is provided for possible future (optional)
function expansion. Offering of this terminal is not a
guarantee that future expanded functionality will be
released.
12. RS-232C input terminal (See page 12.)
13. Vents
14. Power LED (See page 17.) / Remote control sensor
(See page 15.)
15. POWER button (See page 17.)
16. INPUT button (See page 20.)
17. LAN terminal (See page 12.)
18. USB port (See page 12.)
19. SD card slot (See page 12.)
20. Expansion slot
This section is used to connect optional hardware for
function expansion. Offering this attachment location
is not a guarantee that future compatible hardware
attachments will be released.
21. RS-232C output terminal (See page 12.)
22. Speakers
23. Optional attachment section (PN-M501/PN-B501 only)
This section is used to connect optional hardware for
function expansion. Offering this attachment location
is not a guarantee that future compatible hardware
attachments will be released.
Caution
• Consult your SHARP dealer for attachment/detachment of optional parts.

Sharp PN-M401 Specifications

General

Brand	Sharp
Model	PN-M401
Category	Monitor
Language	English
