Sharp PN-M401 Operation Manual

49
E

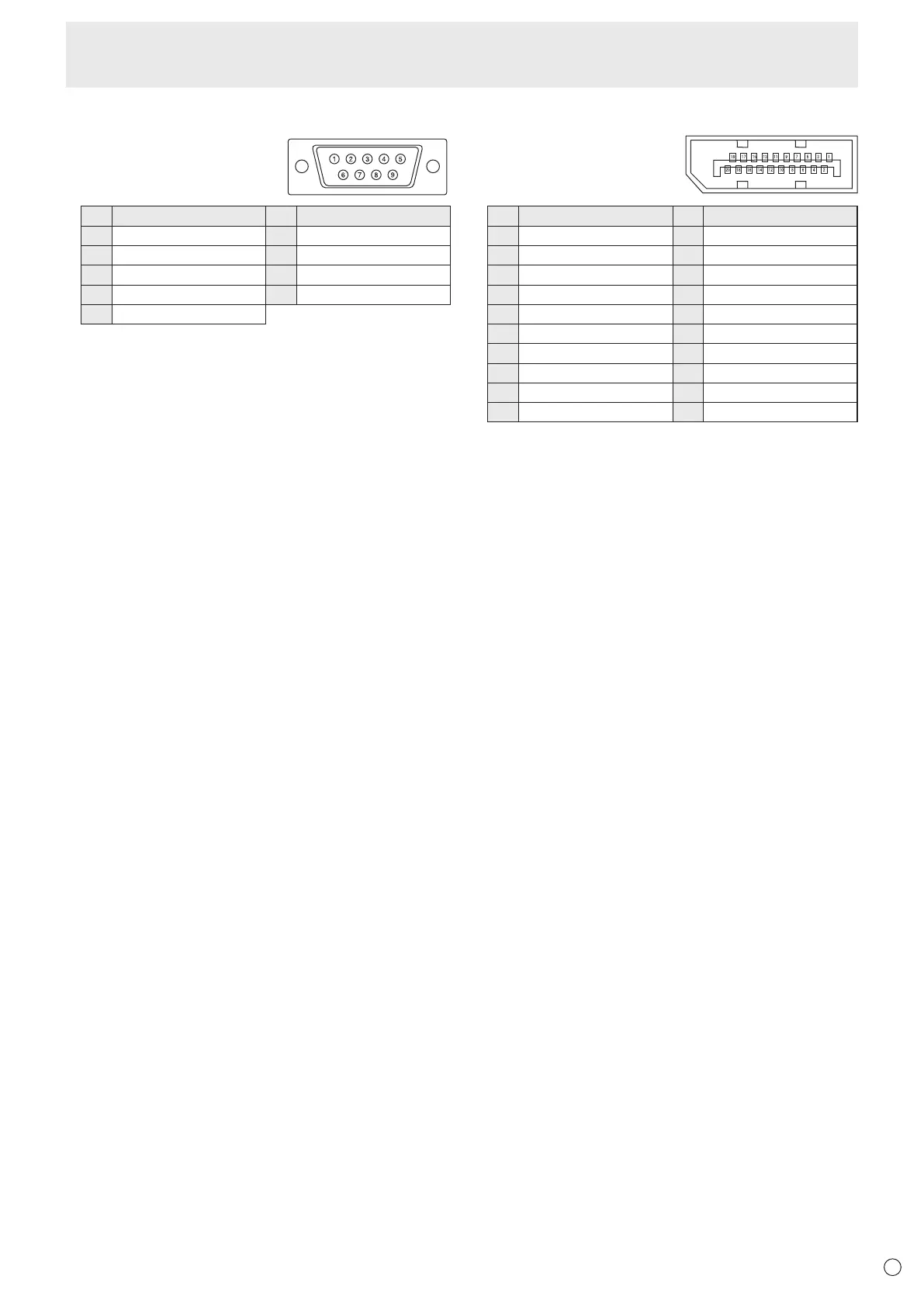

Specications
n
RS-232C output terminal pins
(D-sub 9 pin)
No. Function No. Function
1 N.C. 6 N.C.
2 Received data 7 N.C.
3 Transmitted data 8 N.C.
4 N.C. 9 N.C.
5 GND
n
DisplayPort output terminal pins
(DisplayPort 20 pin)
No. Function No. Function
1 MainLane 0+ 11 Gnd
2 Gnd 12 MainLane 3-
3 MainLane 0- 13 Gnd
4 MainLane 1+ 14 Gnd
5 Gnd 15 Aux +
6 MainLane 1- 16 Gnd
7 MainLane 2+ 17 Aux -
8 Gnd 18 Hot-plug detection
9 MainLane 2- 19 Gnd
10 MainLane 3+ 20 3.3V
