4. SEALER FILM
1. Put the adhesive tape on the backing fi lm of the sealer fi lm
as shown in Fig. C-8
2. Tear the backing fi lm by pulling the adhesive tape.
3. Put the pasted side of the sealer fi lm on the door panel

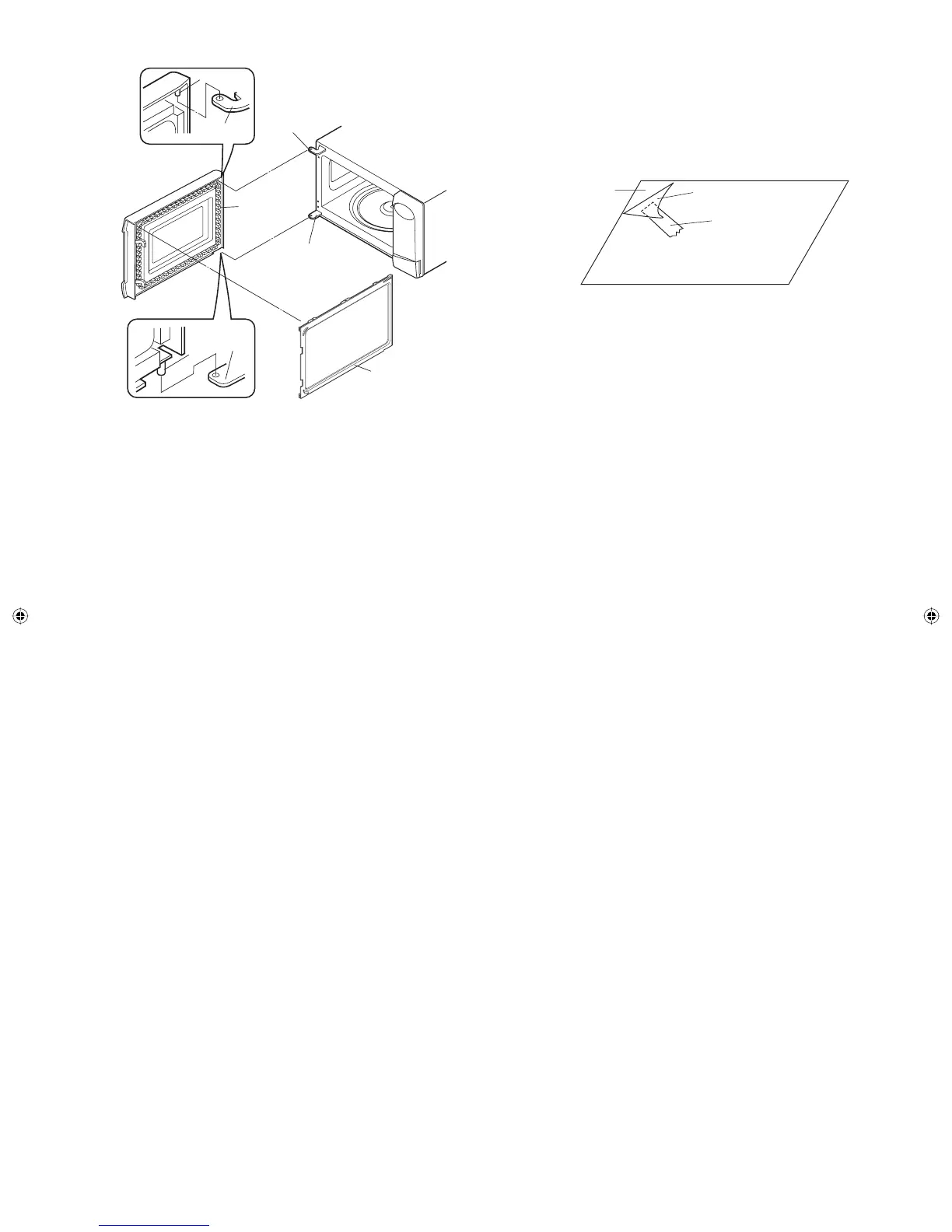

Figure C-7. Door Replacement
Upper Oven
Hinge
Lower
Oven Hinge
Pin
Upper
Oven Hinge
Slit choke of
door panel
Choke Cover
Pin
Lower Oven
Hinge
Figure C-8. Sealer film
Sealer film
Backing film
Adhesive tape
