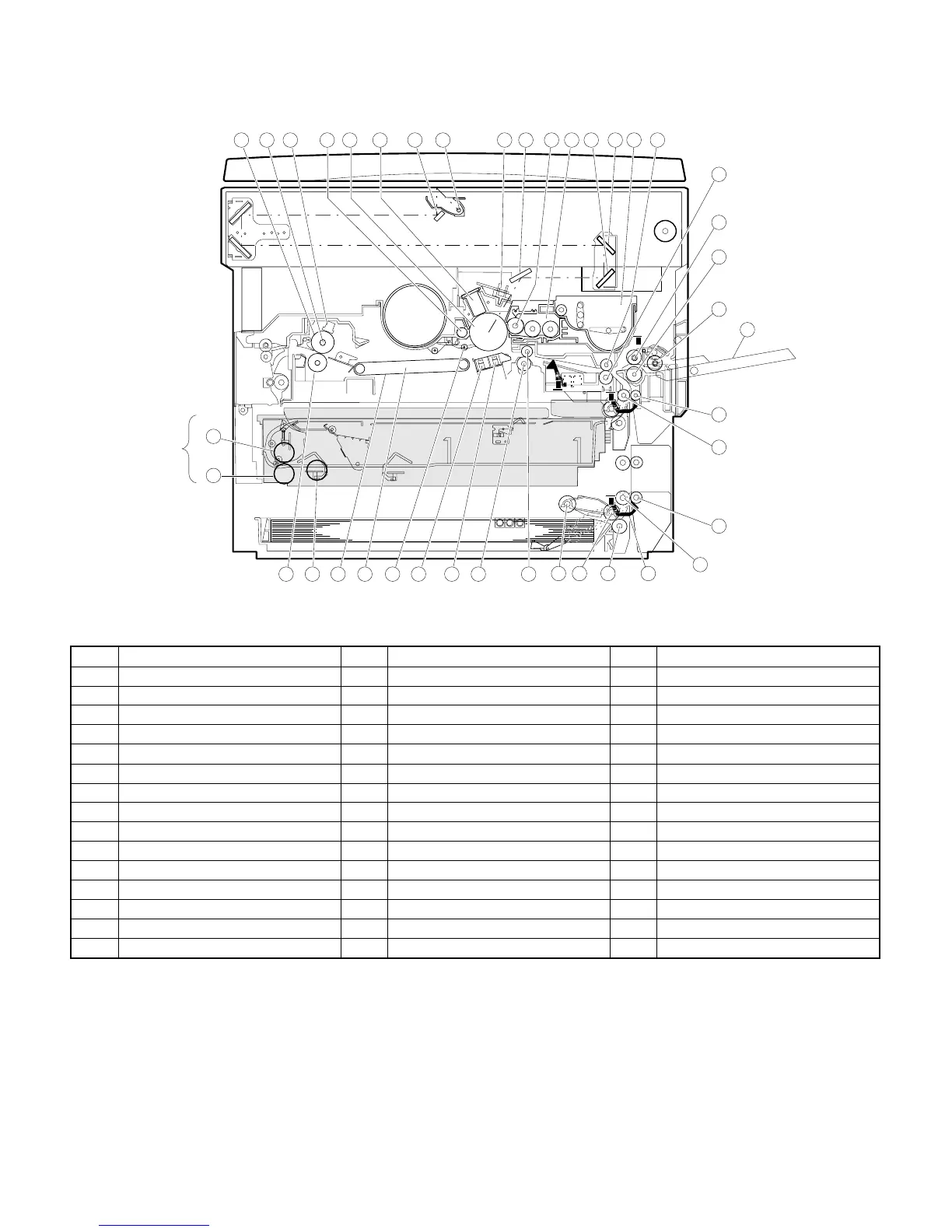

6. Rollers, mirrors, etc.
No. Name No. Name No. Name
1 No. 3 mirror 2 No. 2 mirror 3 No. 1 mirror
4 Copy lamp 5 No. 4 mirror 6 No. 5 mirror
7 No. 6 mirror 8 Developing unit toner box 9 Manual tray
F — G Take-up roller H Paper feed roller
I Reverse roller J PS front roller follower roll K PS front roller
L Developing unit M Blank lamp N Main charger unit
O Photoconductor drum P Cleaner unit Q Resist roller follower roll
R Resist roller S Transfer charger T Separation charger
U Drum separation pawl V Suction unit W Suction belt
X Fusing thermistor Y Heater lamp Z Upper heat roller
[ Lower heat roller ^ Developing magnet roller _ Tray paper feed roller
‘ Tray paper feed reverse roller a Tray paper feed take-up roller b PE actuator
c Transport roller (lower) follower roller d Transport roller (lower) e Tray paper feed reverse roller
f Tray paper feed roller g Tray paper feed take-up roller h Reverse roller
i Paper feed roller j Take-up roller
@ Since \, ], _ ~ g are the same as in the SF-CM15 (option), they are omitted.
34
29 28
27 26 25 24 23 22 21
30
20 19 18 3 4 17 7 16 6 5 8 14
15
12
13
11
9
32
33
39
40
38
4142
43
31
44
45
46
ADU
3 – 7
