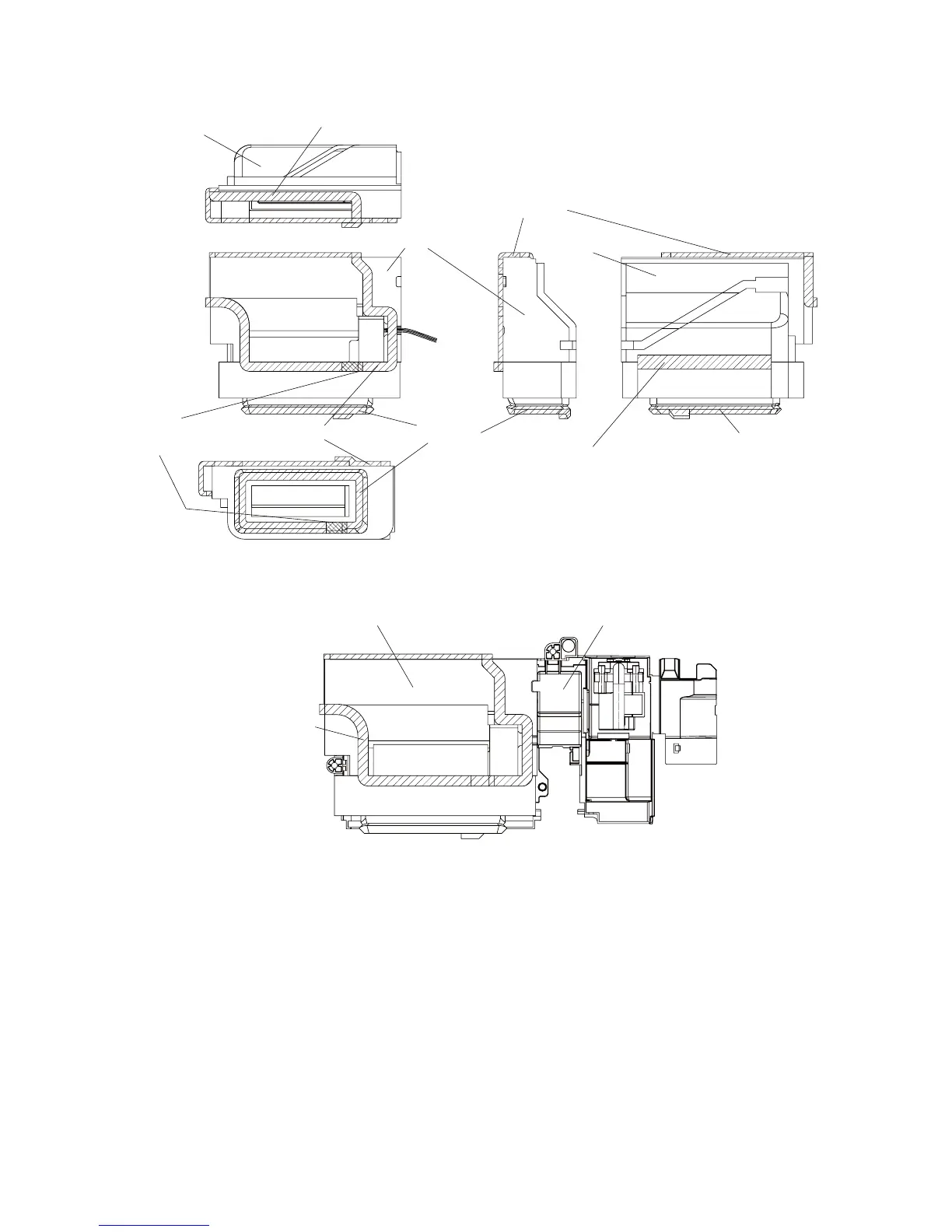

Attach the A-sealer RCbox A and RCbox B to the assembly of Step 5.6.
Attach the sealer securely so that it will not rise.•
R-C box insu. A
R-C box insu. A
A-sealer RCbox A
Paste the sealer along the edge of insulation.
R-C box insu. A
A-sealer RCbox A
Start of sealing
End of sealing should be
pasted with overlapped.
A-sealer RCbox B
A-sealer RCbox A
A-sealer RCbox B
Paper tape
Fix the R-C Box insu A and
R Air Guider B.
Mount the assembly of Step 5 to the assembly of Step 4.7.
R-C box insu. A
RC box
A-sealer RCbox A
