Sharp SJ-XF50X-T - Page 43

SJXF50XT
43

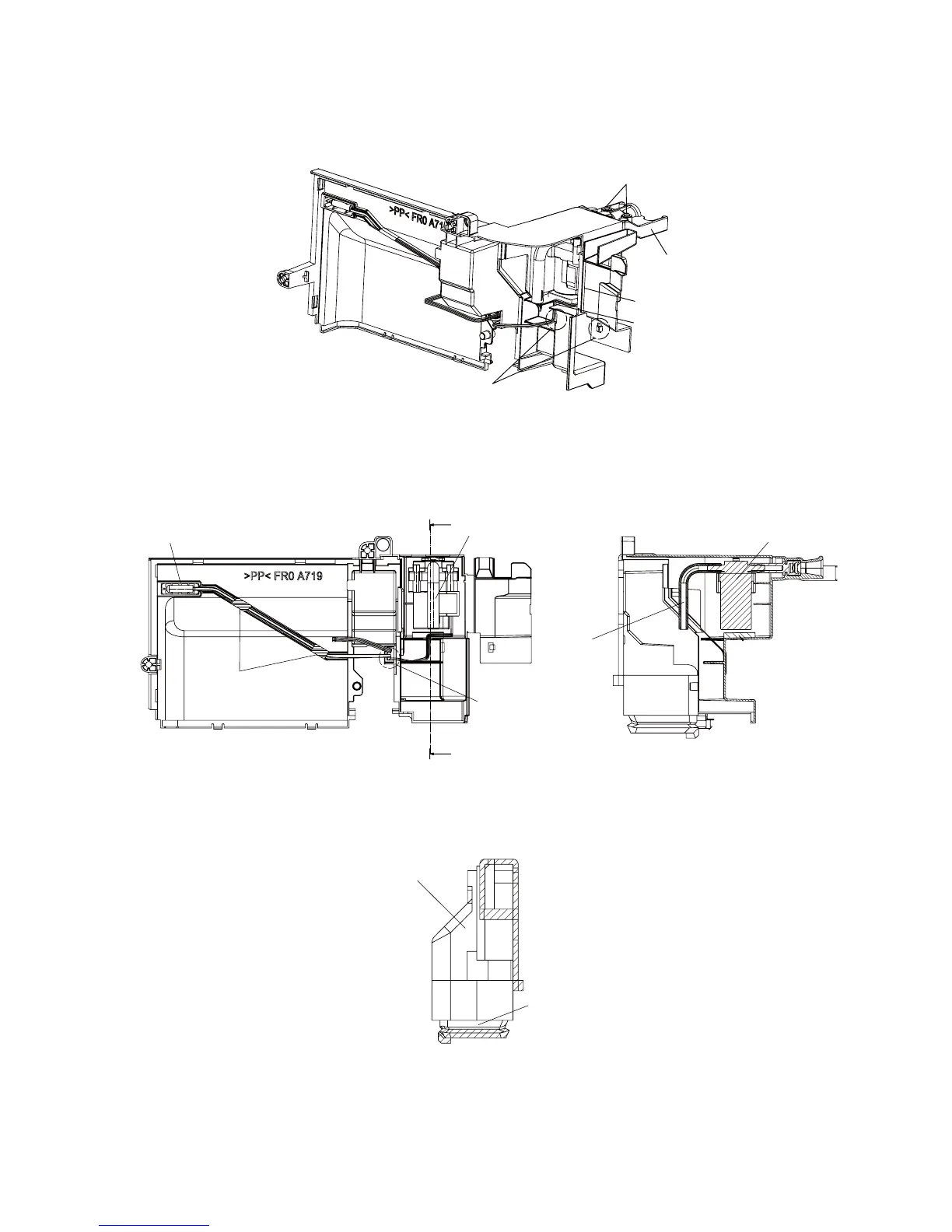

Fasten the packing holder to the assembly of Step 2 with two screws.3.
Tightening torque is 3.5 to 4.5 kgf/cm (0.34 to 0.44 Nm).•
Insert the gear pump harness in the groove of the R-C box, and bend the R-C box hinge so that the Claw is •
securely engaged.
Attach the gear pump harness inserted in the R-C box groove to the Claw of the R-C box securely.•
・
Packing holder
Screw
Groove of R-C b
o
Hinge
・
・
En
g
a
g
e the hook.
Insert the joint pipe to the gear pump.4.
Insert securely.•
Attach the joint pipe vertically as shown the figure.•
Mount the R-thermistor to the R-C box.•
Gear pump
R-thermistor
Attach the harness
to the hook.
Joint pipe
・
・
Cross-sectional view A-A
Paper tape
・
・
・
・
Attach the joint pipe vertically
Ａ
Ａ
Insert the damper to the R-C box insu. B.5.
Insert the R-C box insu. B to the R-C box insu. A.•
R-C box insu. A
・
R-C box insu. B
・
