18
SMD2499FS
DISCHARGE THE HIGH VOLTAGE CAPACITOR BEFORE TOUCHING ANY OVEN COMPONENTS
OR WIRING.
If the capacitor is open, no high voltage will be available to the magnetron. Disconnect input leads and
check for short or open between the terminals using an ohmmeter.
Checking with a high ohm scale, if the high voltage capacitor is normal, the meter will indicate
continuity for a short time and should indicate approximately 10 MΩ once the capacitor is charged.
If the above is not the case, check the capacitor with an ohmmeter to see if it is shorted between either
of the terminals and case. If it is shorted, replace the capacitor.

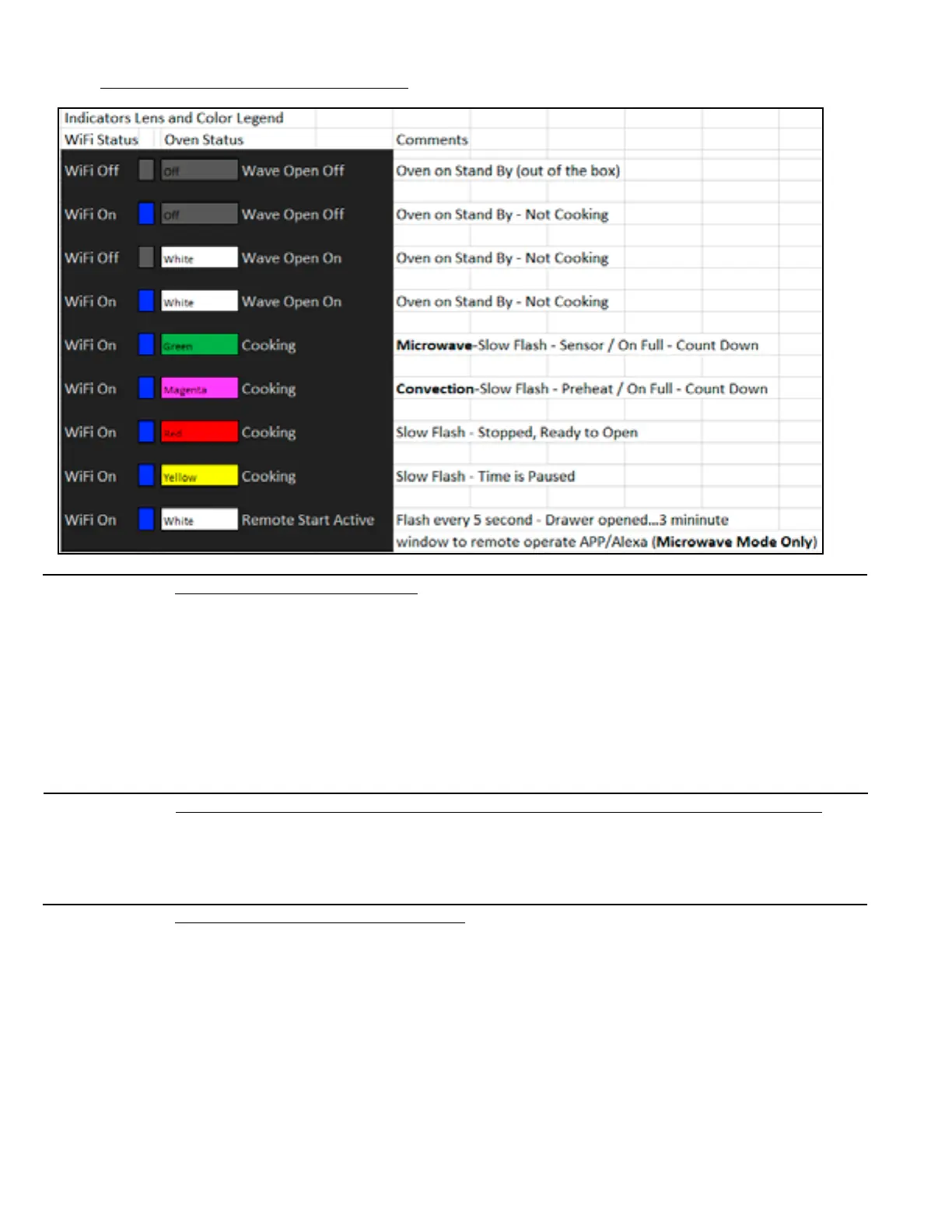

INDICATORS LENS AND COLOR LEGEND
Isolate the switch and connect the ohmmeter to the common (COM.) and normally open (NO) terminal
of the switch. The meter should indicate an open circuit with the door open and a closed circuit with
the door closed. If improper operation is indicated, replace the switch.
DOOR SENSING SWITCH
Isolate the switch and connect the ohmmeter to the common (COM.) and normally open (NO) terminal
of the switch. The meter should indicate an open circuit with the door open and a closed circuit with
the door closed. If improper operation is indicated, replace the door sensing switch.
SECONDARY INTERLOCK RELAY
Disconnect two (2) wire leads from the tab terminal of the secondary interlock relay (RY1). Check the
state of the relay contacts using a ohmmeter. The relay contacts should be open. If the relay contacts
are closed, replace the circuit board entirely or the relay itself.
E HIGH VOLTAGE CAPACITOR TEST
F PRIMARY INTERLOCK SWITCH AND THIRD DOOR SWITCH TEST (CANADA MODELS ONLY)
G SECONDARY INTERLOCK SYSTEM TEST
