Sharp SMD2499FS Service Manual

8
SMD2499FS
NOTE:
The "START/+30 SEC" feature is disabled after 3 minutes when the oven is not in use. This feature is automatically
enabled when the door is opened and closed.

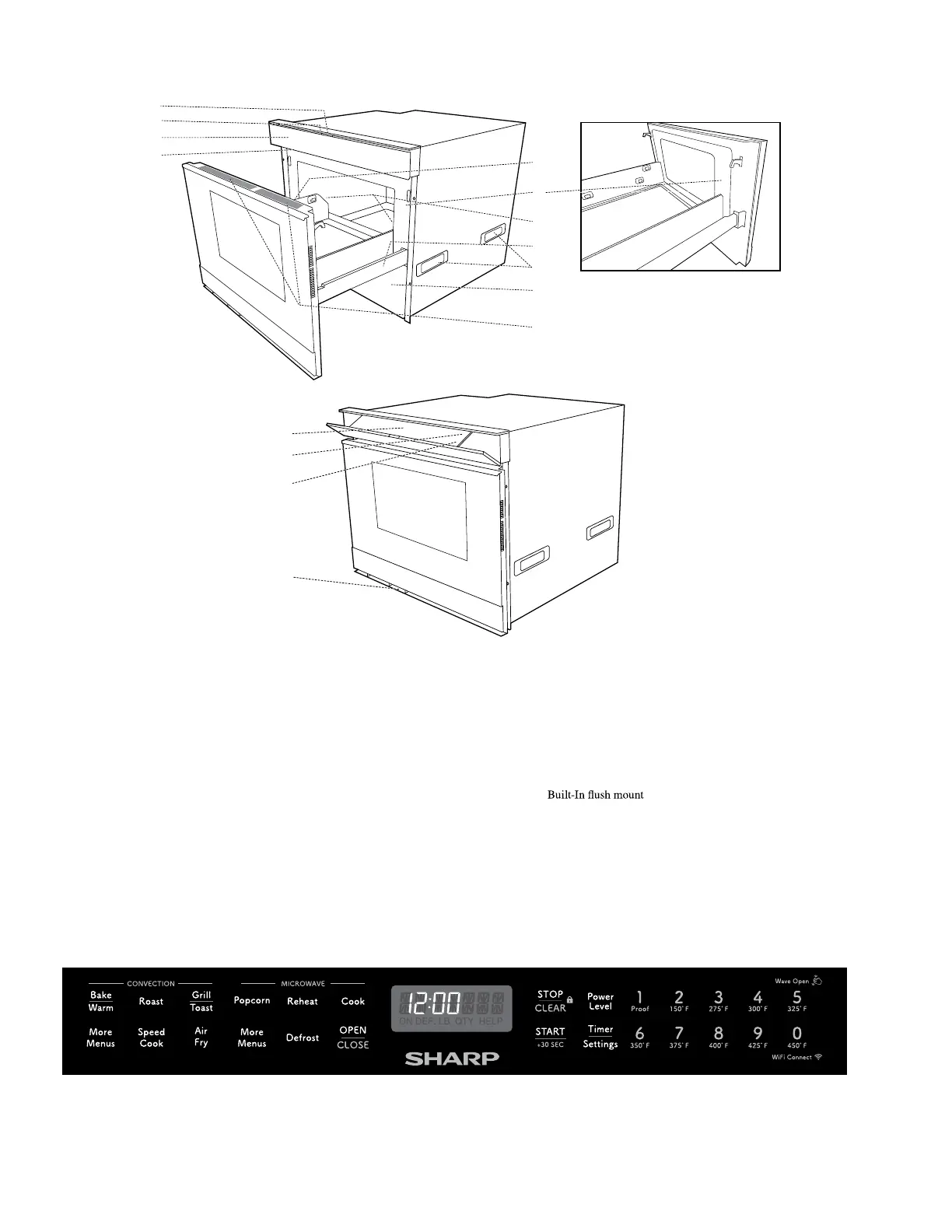

OVEN DIAGRAM
KEY SHEET
3
4
1
2
15
13
14
12
7
5
8
6
10
11
9
The label is located at the bottom left side of the oven face
plate.
6 Drawer sealing surfaces
7 Drawer lights
1 Easy Wave Open indicator
2 Wi-Fi indicator
3 Hidden control panel door
4 Easy Wave Open sensor
5 Nameplate: Open the Convection Microwave Drawer fully.
8 Convection Microwave Drawer guides
9 Hand holes
10 Vent
11 Menu labels
12 Glass touch control
13 Easy Wave Open button
14 Wi-Fi Connect button
15

Sharp SMD2499FS Specifications

General

Style	drawer
Color	stainless steel
Total Capacity	1.4 cu. ft.
Convection	yes
Power Levels	11
Sensor Cooking	yes
Quick Start	yes
Timer	yes
Wi-Fi	yes
Remote Control	yes
Max Power Consumption	900 watts
Microwave Power	900 watts
Voltage	115 volts
Current	15

Weight and Dimensions

Depth	20-7/8"; 27"; 20 7/8 inch; 23-1/2"; 16-7/16"
Height	19 1/2 inch; 19-3/4"; 8-3/4"; 19-1/2"; 24-1/2"; 19-3/8"
Width	23-5/8"; 27-1/2"; 22-3/8"; 23 5/8 inch; 23-7/8"; 16-15/16"
