Sharp VL-A111S/H/E User Manual

19
VL-A111S/H/E/AH131S/H/E
VL-AH151S/H/E

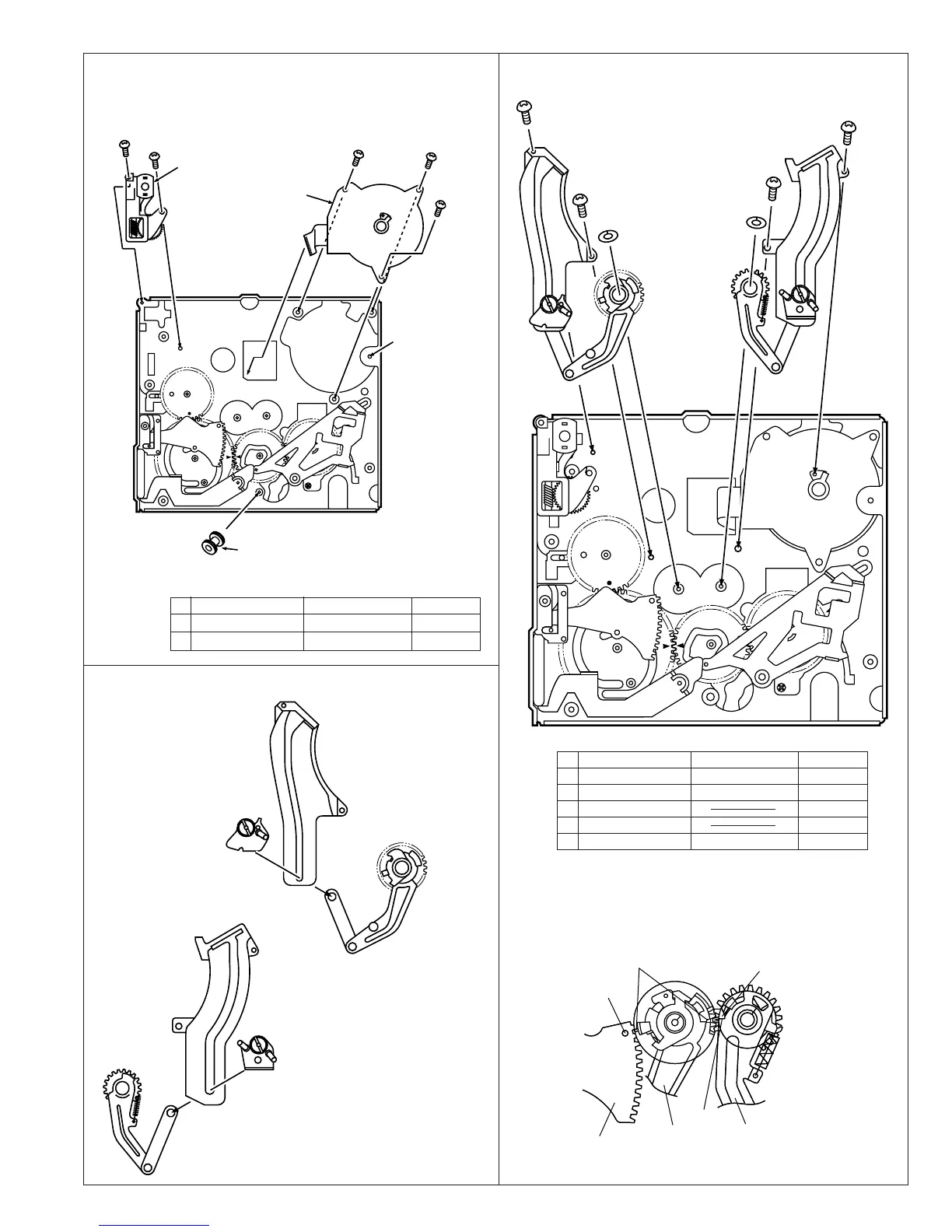

(4) Install the loading block assembly and the capstan motor.
(5) Install the drive gear. At this time, pay attention to the
direction of gear. (The small gear must be located in the
chassis side.)
Insert the part in the
rail and slide it down.
Make sure not to
deform the arm.
Insert the part in the rail
and slide it down.
(6) Install the guide rail assembly.
(7) Install the guide rail assembly taking care to position it
correctly.
Make sure not to deform the arm.
A
a
A
C
D
B
Segment gear
Su arm Ass'y
T Lo arm Ass'y
Square Hollow Mark
Triangle Mark
Edge A
Round Hole
Align the marks on the parts.
a
A
a
a
a
Loading motor
Drive gear
Position the smaller gear
towards the chassis.
Capstan motor
Move FF
downwards
Install the
motor under
this plate.
Item Tightening torque Quantity
A S Tight M1.4 x 2.5 70mN·m 1
a S Tight M1.4 x 3 70mN·m 4
Item Tightening torque Quantity
A S Tight M1.4 x 2.5 70mN·m 2
B S Tight M1.4 x 4 40mN·m 1
C ø0.8-ø3-t0.2 1
D ø2.1-ø5-t0.25 1
a S Tight M1.4 x 3 70mN·m 1
