18
VL-A111S/H/E/AH131S/H/E
VL-AH151S/H/E

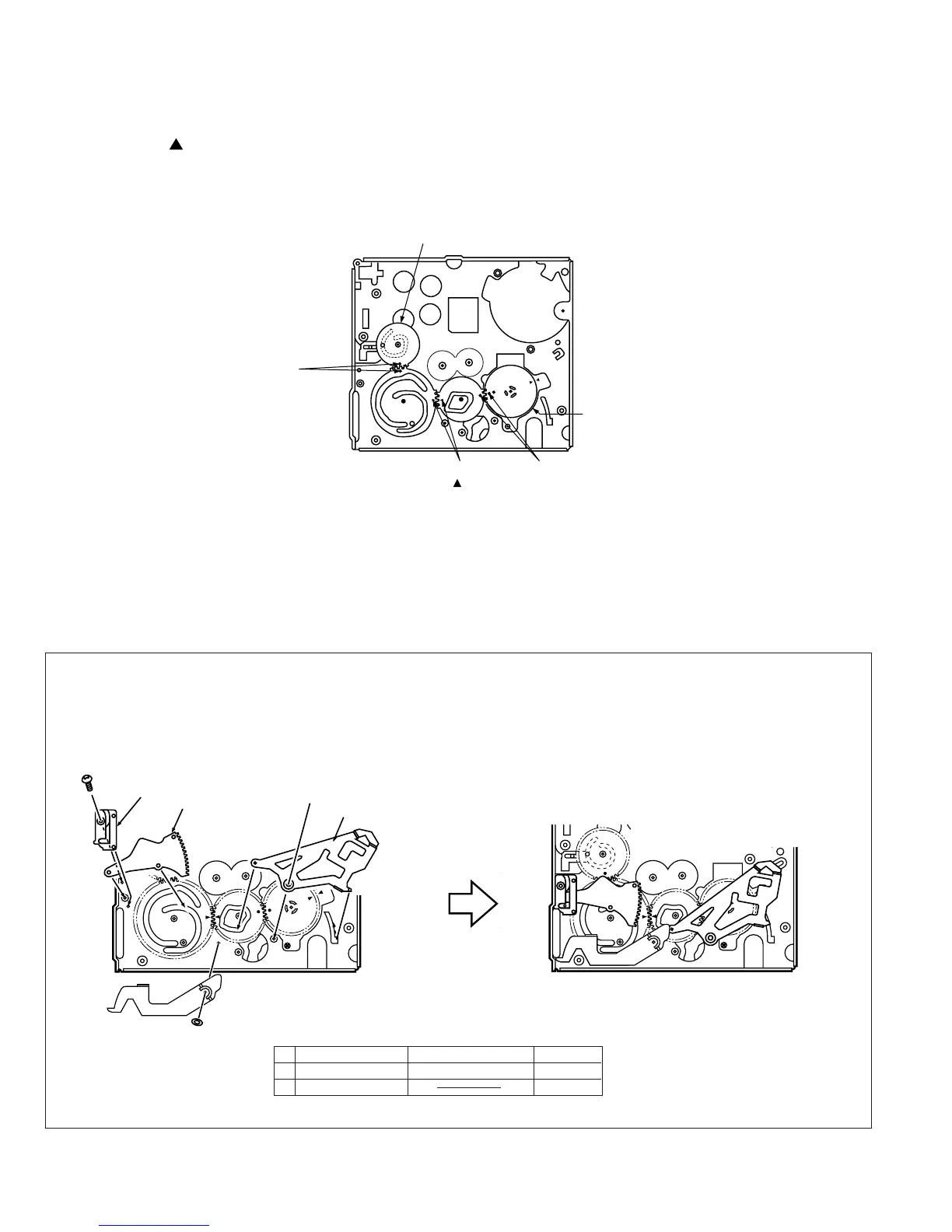

4-5-5. Phase matching
The phase of the following parts must be matched as
shown in the figure below.
(Ascertain that the marks and round holes align.)
(1) Lo relay gear (2) Main cam
(3) Sub-cam (4) Mode switch
Lo relay gear
Phase
matching mark
(Round hole)
Phase matching
mark ( Mark)
Phase matching mark
(Round hole)
Mode switch
4-6. MECHANISM ASSEMBLING METHOD
(1) Adjust the phase of each part.
(2) Install screws and washers.
(3) Install the segment gear, T arm guide, the M-function
lever and the eject lever.
a
B
T arm guide
Segment gear
M-function lever
Move claw
to rear side.
Move claw to
rear side.
Item Tightening torque Quantity
a S Tight M1.4 x 3 70mN·m (0.7kgf·cm) 1
B ø0.8-ø3-t0.2 1
To Next Page
