XG-MB55X
Terminals

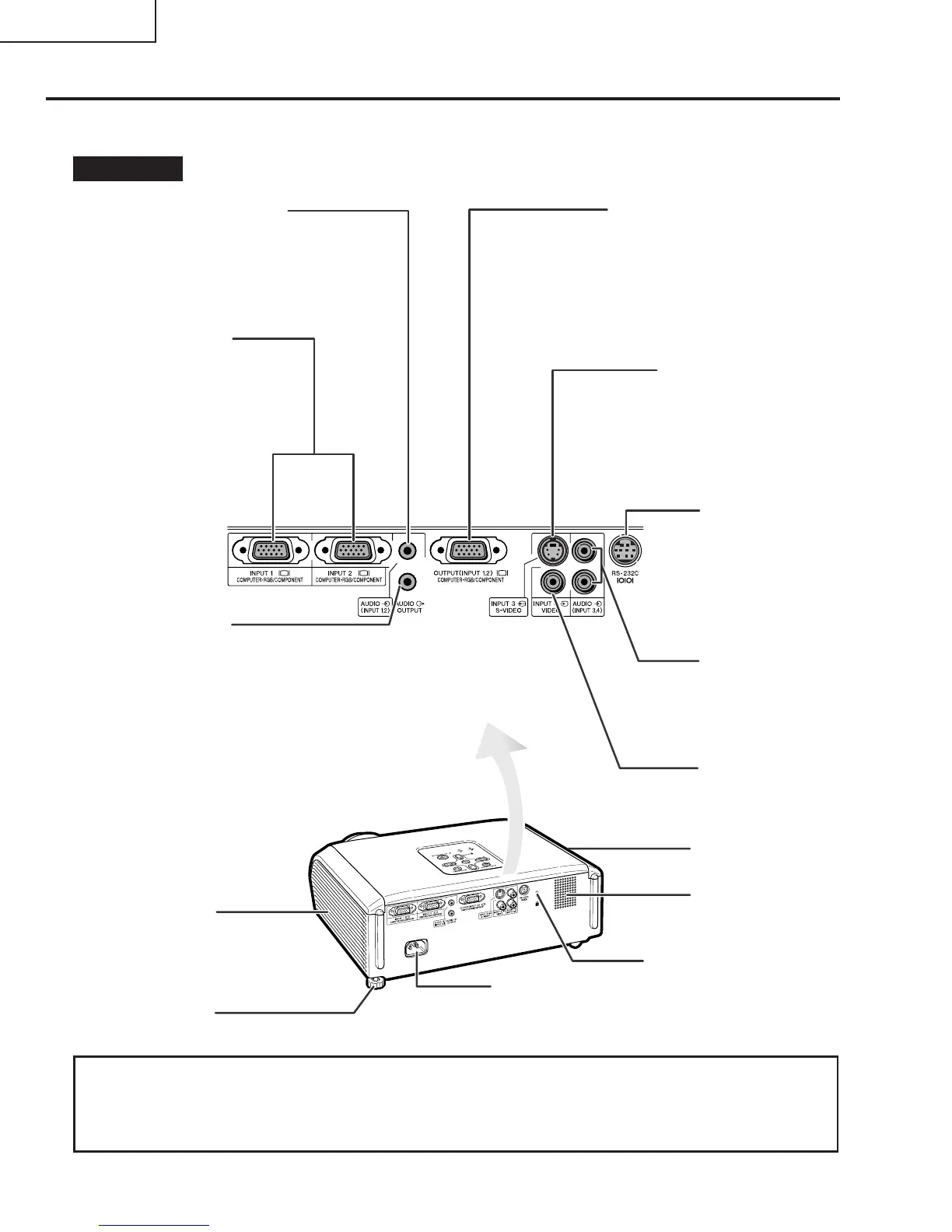

Rear View
Refer to INPUT Terminals and Connectable Main Equipment .
AUDIO (INPUT
3, 4) terminal
(Shared for
INPUT 3 and 4)
INPUT 3 terminal
Ter minal for connect-
ing video equipment
with an S-video
terminal.
INPUT 4 terminal
Ter minal for
connecting video
equipment.
Speaker
Rear adjustment
foot
Kensington Security
Standard connector
AC socket
Connect the supplied
Power cord.
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington
MicroSaver Security System. Refer to the information that came with the system for
instructions on how to use it to secure the projector.
AUDIO OUTPUT
terminal
Audio output
terminal of
equipment
connected to the
AUDIO INPUT
terminal.
Intake vent
AUDIO (INPUT 1, 2)
terminal (Shared for
INPUT 1 and 2)
INPUT 1 and
INPUT 2 terminals
Te r minals for
computer RGB
and component
signals.
OUTPUT (INPUT 1, 2)
terminal
(Shared computer RGB and
component signals output
terminal for INPUT 1 and 2)
Ter minal for connecting a
monitor.
RS-232C
terminal
Te r minal for
controlling the
projector using
a computer.
Exhaust vent
