XG-MB55X

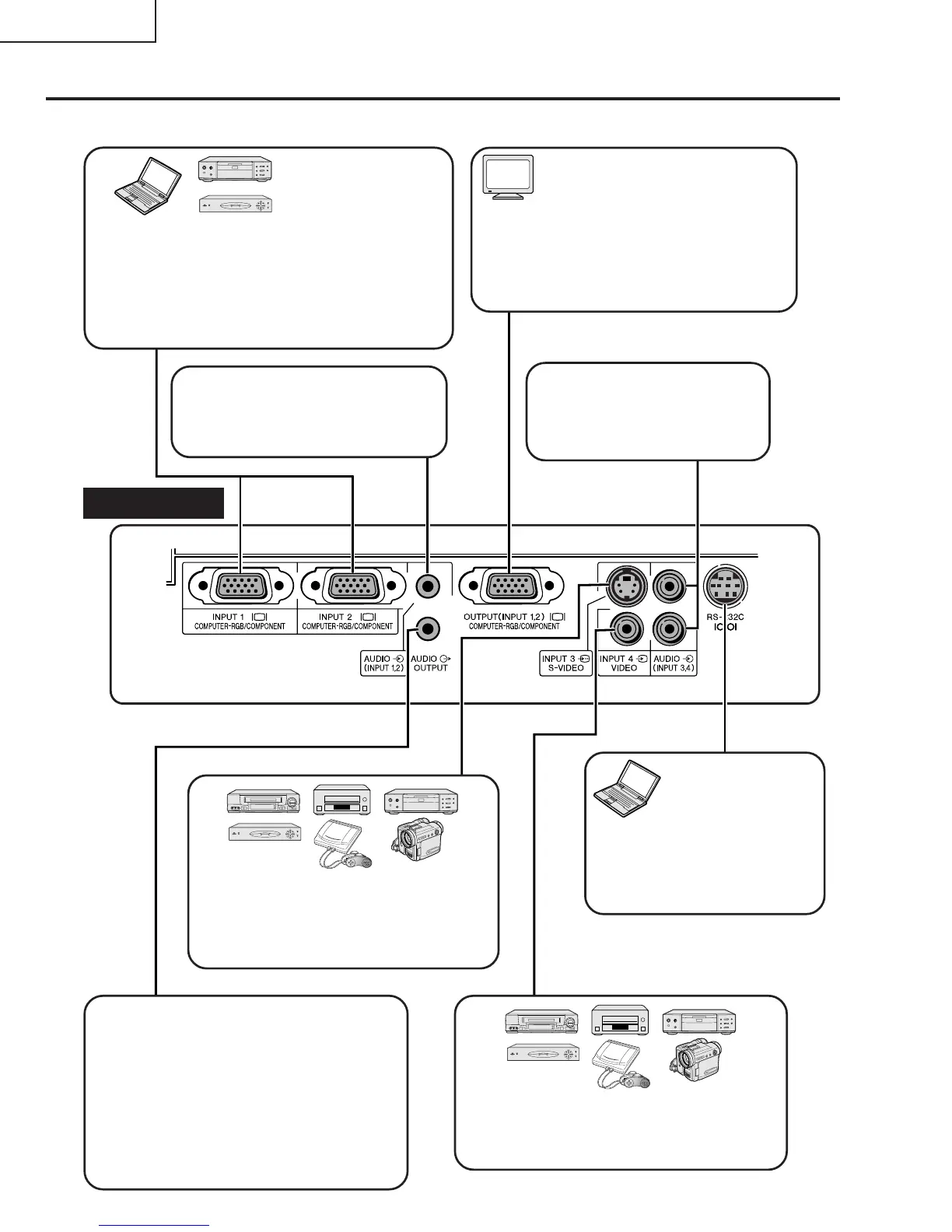

INPUT Terminals and Connectable Main Equipment
INPUT 1, 2 terminal
Connecting the computer.
Connecting video equipment with compo-
nent output terminal (DVD player, DTV
decoder, DVD recorder with hard disc,
etc.).
INPUT 3 terminal
Connecting video equipment with
S-video output terminal (VCR, DVD
player, etc.).
INPUT 4 terminal
Connecting video equipment without S-
video output terminal.
AUDIO (INPUT 1, 2) terminal
Connecting an audio cable
(Shared audio input terminal for
INPUT 1 and 2).
AUDIO (INPUT 3, 4) terminal
Connecting an audio cable
(Shared audio input terminal
for INPUT 3 and 4).
COMPUTER-RGB/COMPONENT
OUTPUT terminal
Connecting the monitor when you want
to simultaneously watch the projection
image on the monitor.
RS-232C terminal
Connecting the computer to
control the projector.
AUDIO OUTPUT terminal
Connecting to an amplifier or other
audio equipment with an audio cable
(commercially available) (Shared
audio output terminal for INPUT 1, 2,
3 and 4).
Use an audio cable with ø3.5 mm
minijack plug to connect to this
terminal.
