Sharp XG-MB70X Service Manual

19
XG-MB70X

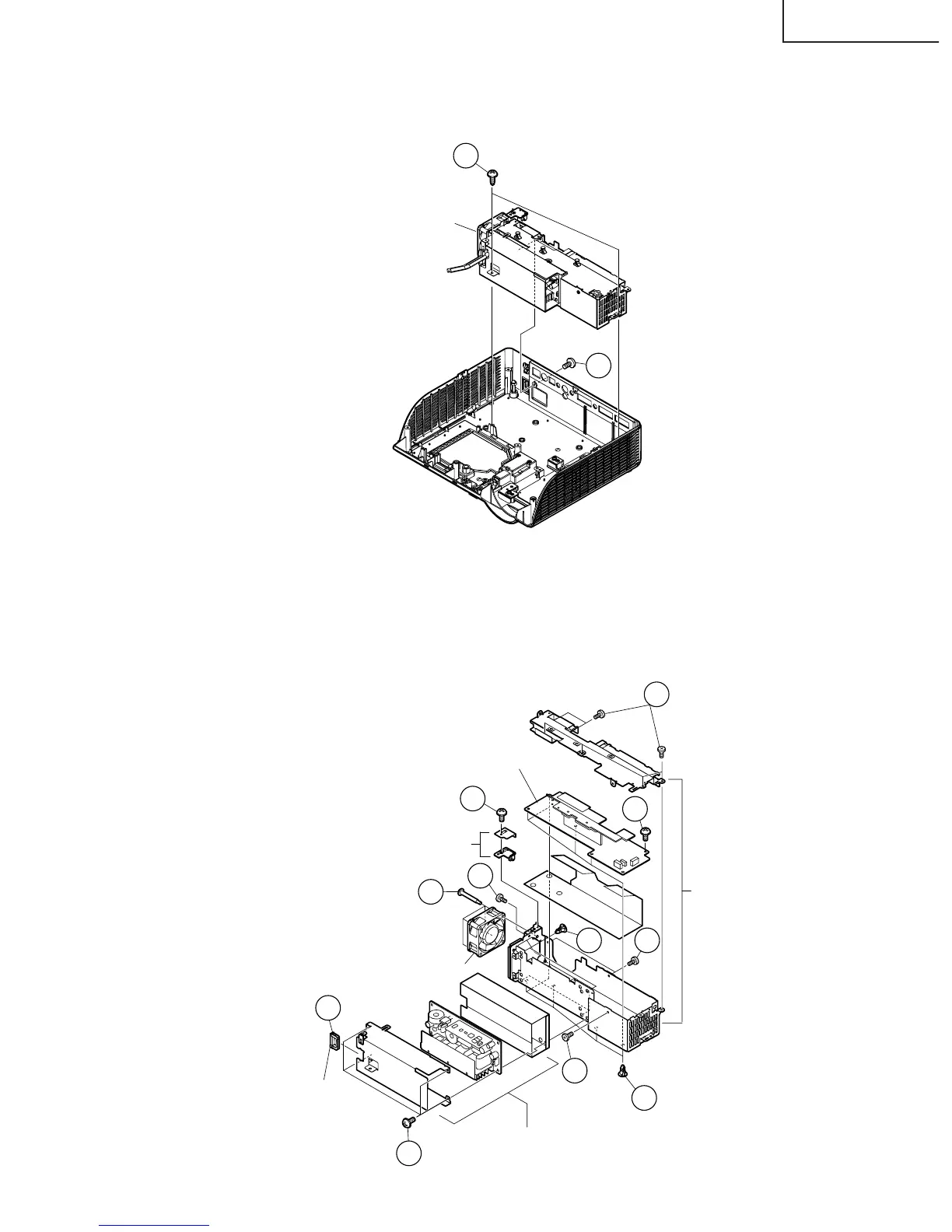

5. Removing the ballast/power supply unit
5-1. Remove 2 fixing screws for the ballast/power supply unit.
5-2. Remove the fixing screw for the ballast/power supply unit (terminal side).
6. Removing the ballast/power supply unit
6-1. Remove the fixing screw for the rear R/C PWB unit.
6-2. Remove 4 fixing screws, 4 WH bosses and the edge saddle for the ballast unit.
6-3. Remove 11 fixing screws and 5 WH bosses for the power supply unit.
6-4. Remove 4 fixing screws for the fan.
5-1
Ballast/
Power supply Unit
5-2
6-1
6-2
6-2
6-4
6-3
6-3
6-3
6-3
6-3
6-3
6-2
Power Supply Unit
Fan
Ballast Unit
Rear R/C PWB Unit
Power Supply PWB Unit
Edge saddle
