Sharp XG-MB70X Service Manual

20
XG-MB70X
7. Removing the peripheral units

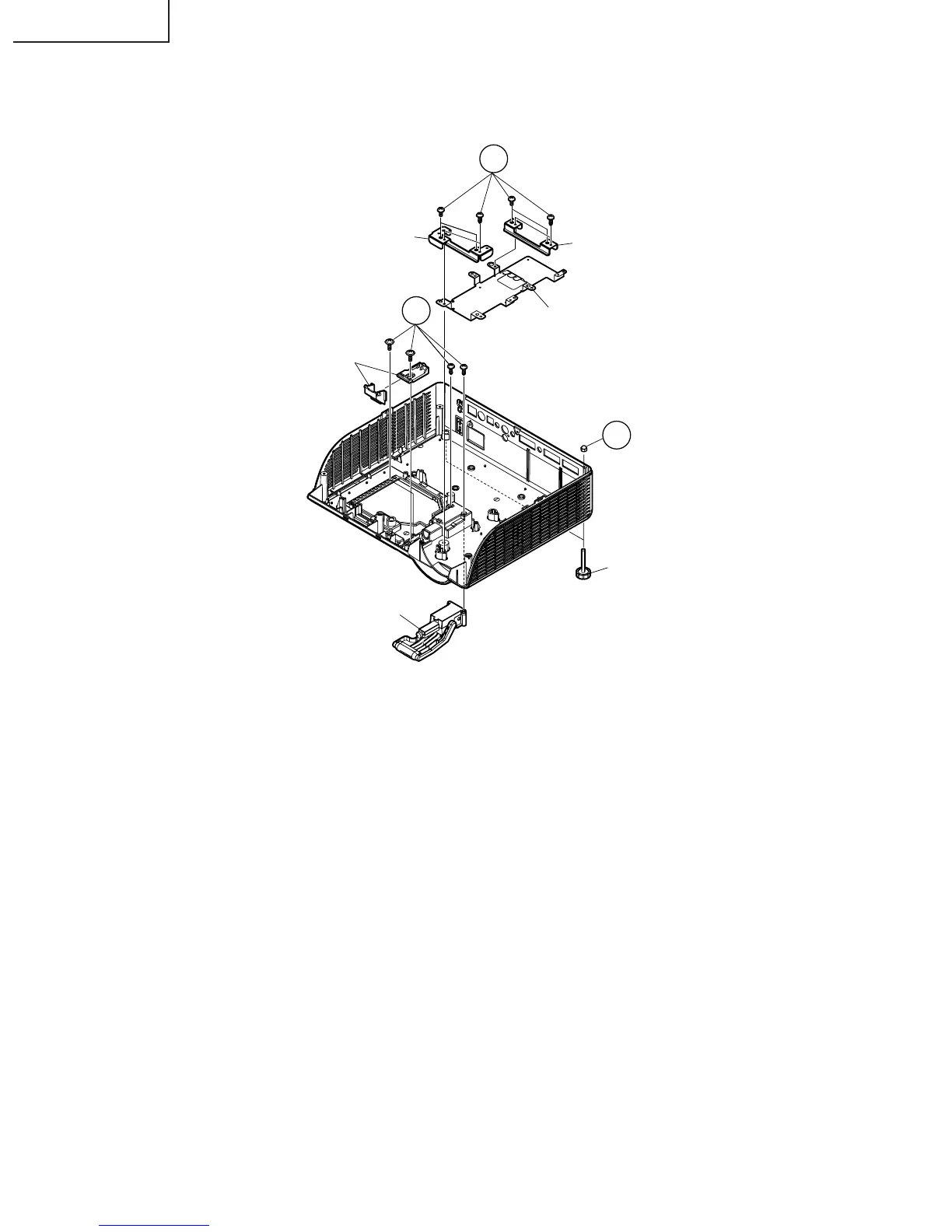

7-1. Remove 4 fixing screws for the front adjuster unit.
7-2. Remove 8 bracket fixing screws and remove the bracket A, bracket B and earth plate.
7-3. Remove 2 fixing cap nuts for the adjuster unit.
7-3
7-1
Bracket A
Bracket B
Front Adjuster Unit
Adjuster Unit
7-2
Earth Plate
Front Adjuster Unit
