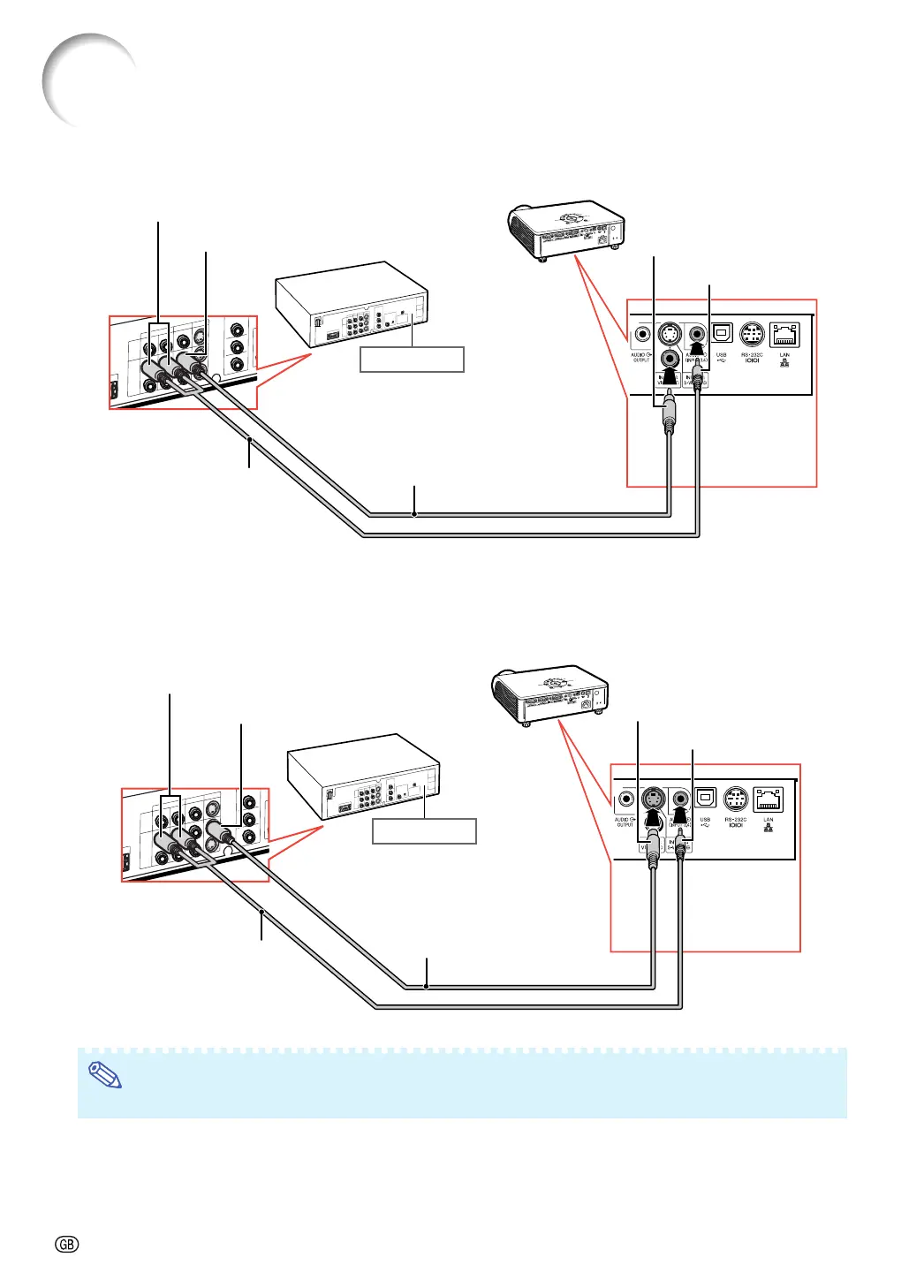

When connecting video equipment with video output terminal
When connecting video equipment with S-video output terminal
Note
• ø3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.
ø3.5 mm minijack to RCA
audio cable (commercially
available)
To audio output terminal
To S-video output terminal
S-video cable (commercially available)
To INPUT 4 terminal
To AUDIO INPUT 3, 4 terminal
Video Equipment
ø3.5 mm minijack to RCA
audio cable (commercially
available)
To audio output terminal
To video output terminal
Composite video cable (commercially available)
To INPUT 3 terminal
To AUDIO INPUT 3, 4 terminal
Video Equipment
Connecting to Video Equipment
