Connections
Connecting to Video Equipment
The projector has a COMPUTER/COMPONENT terminal, an S-VIDEO terminal and a VIDEO terminal for
video input. See the illustration below to connect with the audio-visual equipment.
The image quality is highest in order of the component signal, the S-video signal and the video signal. If your
audio-visual equipment has a component output terminal, use the COMPUTER-RGB/COMPONENT terminal
(INPUT 1 or INPUT 2) on the projector for video connection.

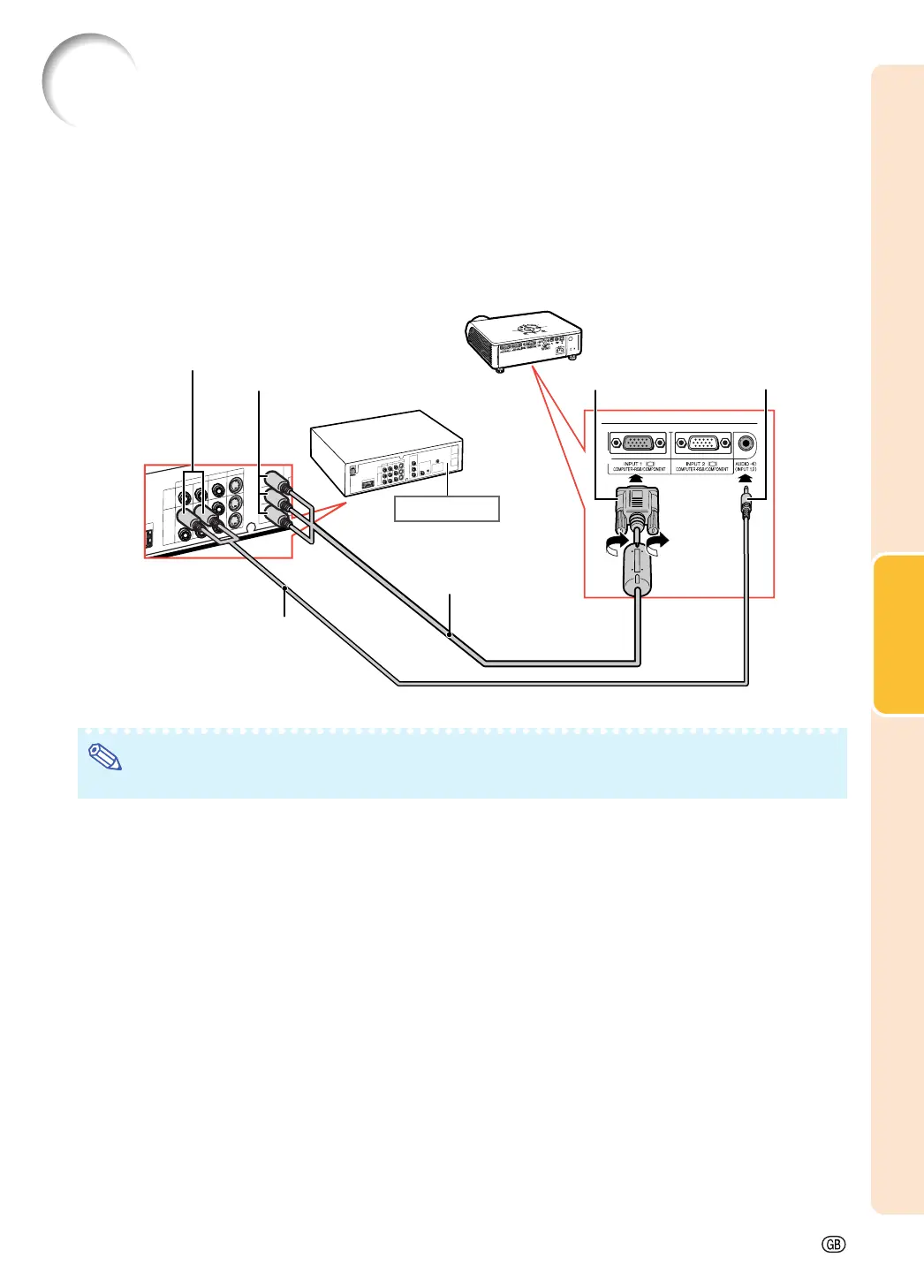

When connecting video equipment with component video output terminal
(When connecting to INPUT 1)
Note
• ø3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.
To audio output terminal
ø3.5 mm minijack to RCA
audio cable (commercially
available)
3 RCA (Component) to
15-pin D-sub cable
(optional: AN-C3CP)
To component video output terminal
To INPUT 1 terminal
To AUDIO
INPUT 1, 2 terminal
Video Equipment
